Ubiquiti UniFi Switch Pro HD - USW-Pro-HD-24-PoE - 24-Port Multi‑Gig 2.5G/10G PoE++ Rackmount, Grey

Ubiquiti UniFi Pro HD 24 PoE. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 22. MAC address table: 32000 entries. Switching capacity: 230 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Power over Ethernet (PoE). Rack mounting. Form factor: 1U

Switch type	Managed
Switch layer	L2/L3
Feature	Rack mount kit
Basic switching RJ-45 Ethernet ports quantity	22
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	22
10G Ethernet (copper) ports quantity	2
SFP+ module slots quantity	4
Power connector	AC/DC
Networking standards	IEEE 802.1x
IPv4 routes	12000
Virtual LAN features	Voice VLAN
Number of VLANs	1000
Switching capacity	230 Gbit/s
Throughput	115 Gbit/s
Forwarding rate	171 Mpps
MAC address table	32000 entries
Packet buffer memory	2 MB
DHCP features	DHCP guarding. DHCP relay. DHCP server. DHCP snooping
Form factor	1U
Product colour	Grey
Housing material	SGCC
LED indicators	Link. Speed. Status
Display type	LCM
Power source	AC/DC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	60 W
Power over Ethernet 4PPoE (PoE++) ports quantity	24
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	600 W
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Width	442.4 mm
Depth	400 mm
Height	44 mm
Weight	6.2 kg

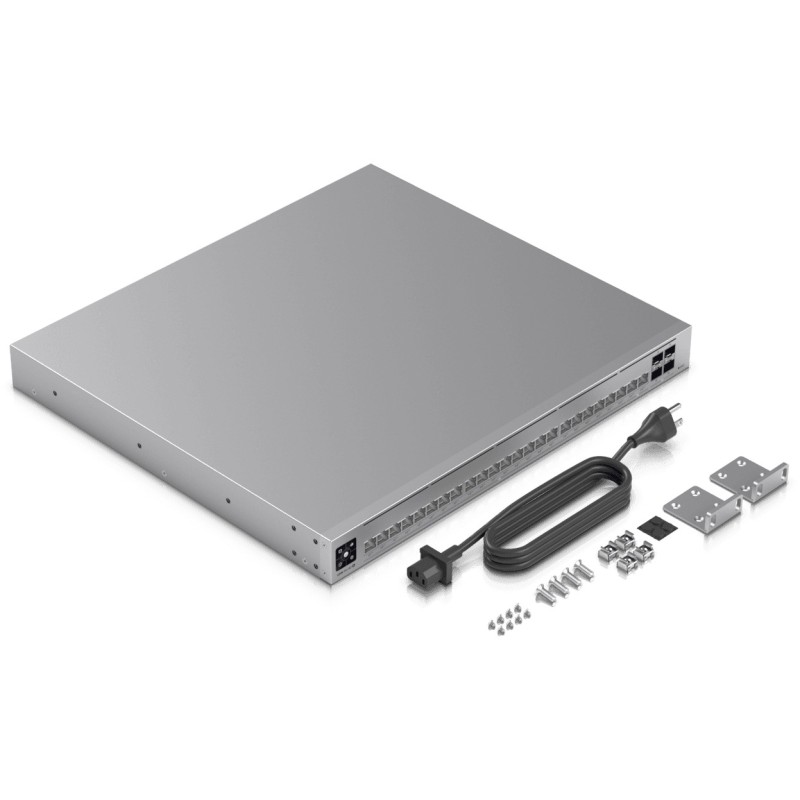

Cables included	Power
Compliance certificates	CE. Federal Communications Commission (FCC). Industry Canada (IC)
