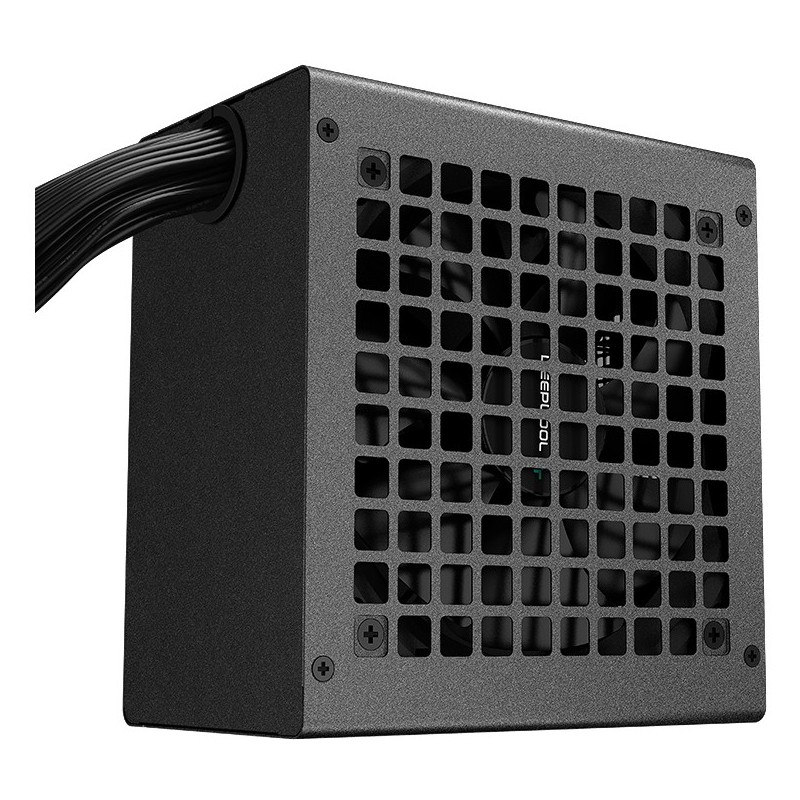

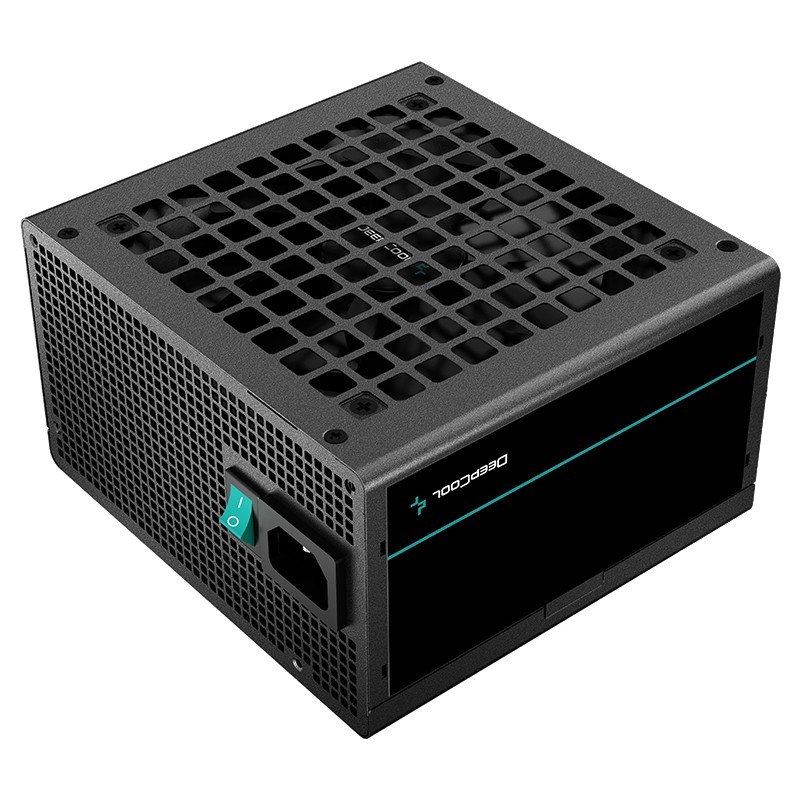

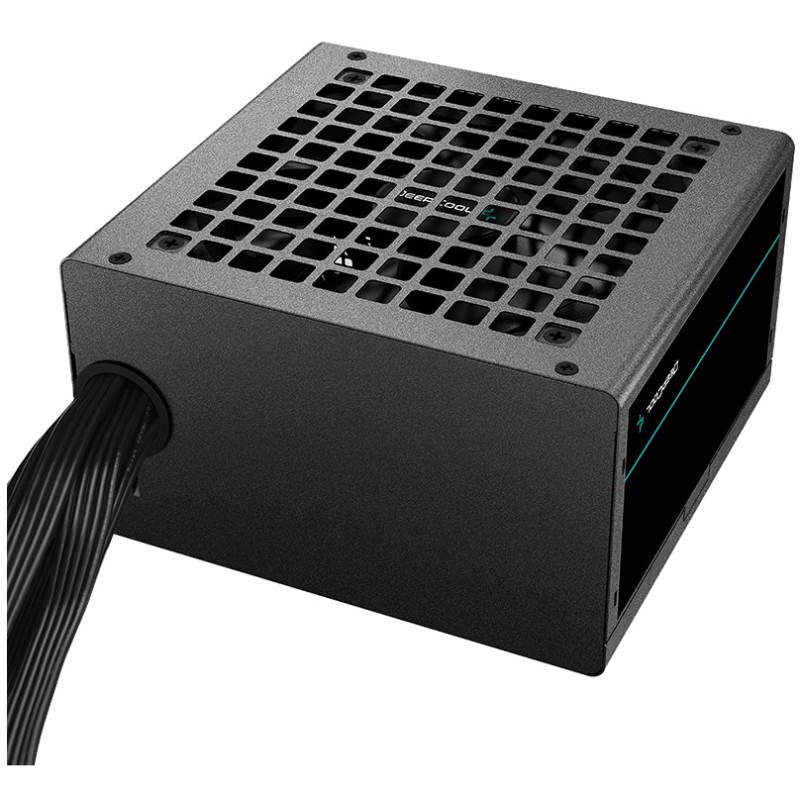

600W DeepCool - PF600 - 600W
€62.50
Tax included
DeepCool PF600 600W ATX PSU for PC/Server, 220-240V, 50 Hz input; 1x 12 cm fan; non-modular; Black; Box packaging.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
DeepCool PF600. Total power: 600 W. AC input voltage: 220 - 240 V. AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 55 cm. SATA power cable length: 450.600.750.900 mm. Purpose: PC/Server. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Cables included: AC

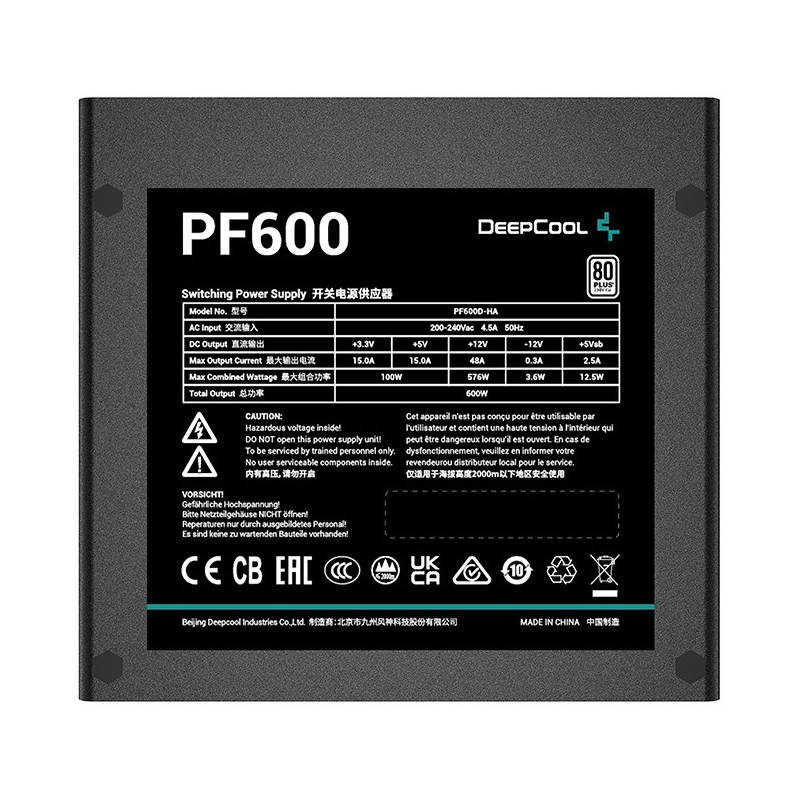

| Total power | 600 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 576 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 48 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 85% |
| Power protection features | Over power. Over voltage. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450.600.750.900 mm |
| Feature | On/off switch |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 30 °C |
| Cables included | AC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
