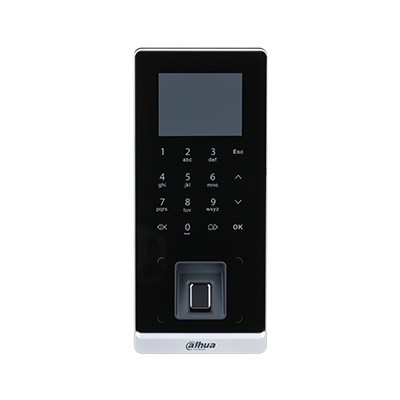

Dahua AC Standalone Fingerprint with Keypad and LCD display - ASI2212H-W - P2P Registration

• Supports PC/mobile web clilent
• Supports online update and USB update
• Doorbell function
• Audio prompts
• Compatible with SmartPSS-AC and DSS Pro
• PC + ABS, suitable for indoor and outdoor use
• 2.4" LCD screen with a resolution of 240 × 320
• Operating temperature: –30 °C to +65 °C
• IP65 rated (silicone sealant is needed, see Quick Start Guide)
• Option to switch between reader and controller mode for added convenience
• 30,000 users, 30,000 cards, 3,000 fingerprints, 30,000 passwords, 50 admin accounts, and 150,000 records
• Card/remote/password/fingerprint unlock and unlock through their combinations
• Deep learning algorithm that reduces capacitive fingerprint recognition time to less than 1 s
• IC card,ID card and NFC technology
• Brand-new design with a slim, elegant structure
• Supports access control security module expansion to avoid tampering, increasing access safety
• Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm, illegal password exceeding threshold alarm, and external alarm
• Supports guest users, patrol users, blocklist users, VIP users, general users, and others
• TCP/IP and Wi-Fi communication; auto registration, P2P registration, and DHCP

System

• Main Processor : High-performance embedded processor
• Network Protocol : IPv4; TCP; UDP; P2P

Basic

• Display Screen : 2.4" LCD
• Screen Type : LCD
• Resolution : 240 (H) × 320 (V)
• Voice Prompt : Yes
• Buzzer : Yes
• Casing : PC + ABS

Function

• Unlock Mode : Card/Remote/Password/Fingerprint unlock and unlock through their combinations
• Card Type : IC or ID card
• Period List : 128
• Holiday Period : 128
• Network Update : Yes
• First User Unlock : Yes
• Remote Verification : Yes
• Restricted List/Trusted List : Yes
• Wi-Fi : Yes
• Peripheral Card Reader : 1 × RS-485 card reader / 1 × Wiegand card reader
• Multi-user Authentication : Yes
• Multi-factor Authentication : Yes
• Web Configuration : Yes
• Auto Registration : Yes

Performance

• Card Reading Distance : 0-5 cm
• Fingerprint Sensor Type : Capacitive fingerprint scanner
• Fingerprint Comparison Time : 1 s

User

• User (Card) Type : General user, VIP user, patrol user, guest user, blocklist user and others

Capacity

• User Capacity : 30,000 users
• Fingerprint Capacity : 3,000
• Card Capacity : 30,000
• Password Capacity : 30,000
• Record Capacity : 150,000 unlock records

Port

• RS-485 : 1
• RS-232 : 1
• Wiegand : 1-ch input/output
• USB : 1 × USB2.0 port
• Network Port : 1 × RJ-45, 100 Mbps
• Alarm Input : 2 (digital quantity)
• Alarm Output : 1 (relay)
• Alarm Linkage : Yes
• Doorbell : 1
• Exit Button : 1
• Door Status Detection : 1
• Lock Control : 1

Alarm

• Anti-pass Back : Yes
• Tamper Alarm : Yes
• Duress Alarm : Yes
• Door Sensor Timeout : Yes
• Intrusion : Yes
• Illegal Card Exceeding Threshold : Yes
• Duress Fingerprint : Yes

General

• Power Adapter : Optional
• Power Supply : 12 V DC, 1 A
• Protection : IP65 (silicone sealant is needed, see the quick start guide)
• Power Consumption : ≤ 12 W
• Product Dimensions : 183 mm × 80 mm × 25.5 mm
• Packaging Dimensions : 248 mm × 143 mm × 66 mm
• Operating Temperature : –30 °C to +65 °C (–22 °F to +149 °F)
• Operating Humidity : 10%–95% (RH), no condensing
• Operating Environment : Indoor; outdoor
• Net Weight : 262 g
• Gross Weight : 462 g
• Accessory : Bracket (included)
• Installation : Surface mount
• Certifications : CE; FCC
