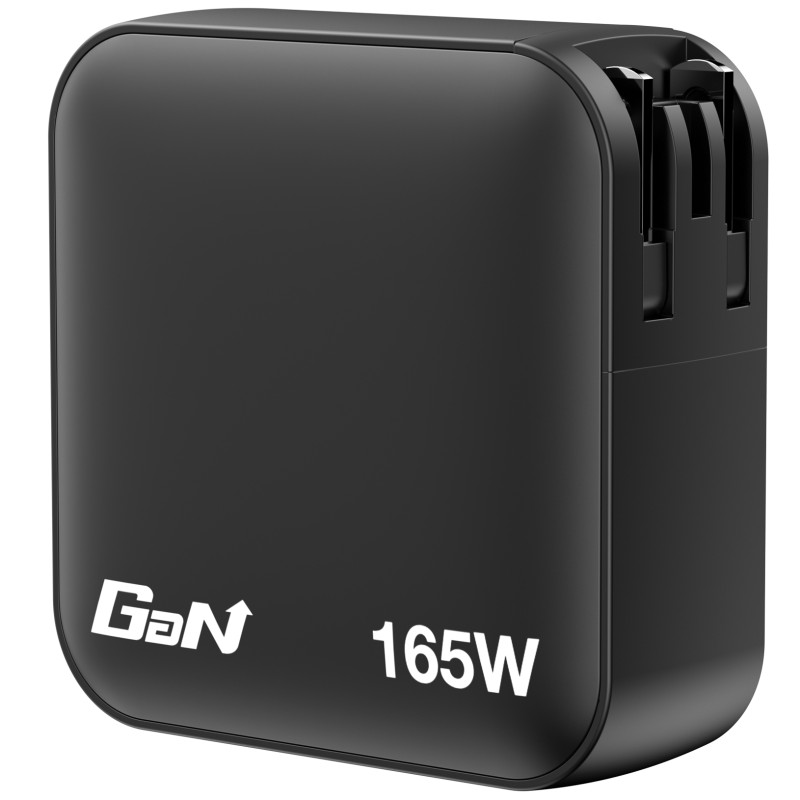

Verbatim Charger Wall - GNC-140 - 165W Mini GaN 3xUSBC 1xUSBA

• 165W mini wall charger with 4 output ports: 1 x USB-C® PD 140W, 1 x USB-C PD 100W, 1 x USB-C PD 65W and 1 x USB-A QC 3.0
• Charges 4 devices simultaneously
• Integrated GaN technology
• Supports super-fast charging with USB Power Delivery 3.1, PPS and Quick Charge 3.0
• Programmable Power Supply (PPS) technology delivers the right amount of power needed for the ideal charge
• Multi-plug UK and EU adapter included
• Output power display
• Compact design made with high quality, flame resistant materials
• Features four safety protection systems, including over-current protection, over-voltage protection, short circuit protection, and over-temperature protection

Input Voltage:

• AC 100-240~ 50/60Hz 2.3A max.

Single port output:

• USB-C1 PD 3.1 Output: 3.3-21V ⎓ 5A, 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 5A, 28V ⎓ 5A (140W max.)
• USB-C2 PD 3.0 Output: 3.3-21V ⎓ 5A, 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 5A (100W max.)
• USB-C3 PD 3.0 Output: 3.3-21V ⎓ 5A, 5V ⎓ 3A, 9V ⎓ 2.22A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A (65W max.)
• USB-A QC 3.0 Output: 4.5V ⎓5A, 5V ⎓ 4.5A, 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 2.5A, 20V ⎓1.5A (30W max.)

Combined port output:

• USB-C1+USB-C2 Output: 100W + 65W
• USB-C1+USB-C3 Output: 100W + 65W
• USB-C1+USB-A Output: 100W + 30W
• USB-C2+USB-C3 Output: 100W + 65W
• USB-C2+USB-A Output: 100W + 30W
• USB-C3+USB-A Output: 5V ⎓ 3A (15W max.)
• USB-C1+USB-C2+USB-C3 Output: 65W + 65W + 30W
• USB-C1+USB-C2+USB-A Output: 65W + 65W + 30W
• USB-C1+USB-C3+USB-A Output: 100W + 15W (USB-C3+USB-A)
• USB-C2+USB-C3+USB-A Output: 100W + 15W (USB-C3+USB-A)
• USB-C1+USB-C2+USB-C3+USB-A Output: 65W + 65W + 15W (USB-C3+USB-A)
• Total Output: 165W max.

Safety protection systems:

• Short circuit protection
• Over-voltage protection
• Over-current protection
• Over-temperature protection

Material: Plastic Housing: PC Fireproof material

Dimensions (W x H x D): 72 x 72 x 31 mm

Weight: 245 grams
