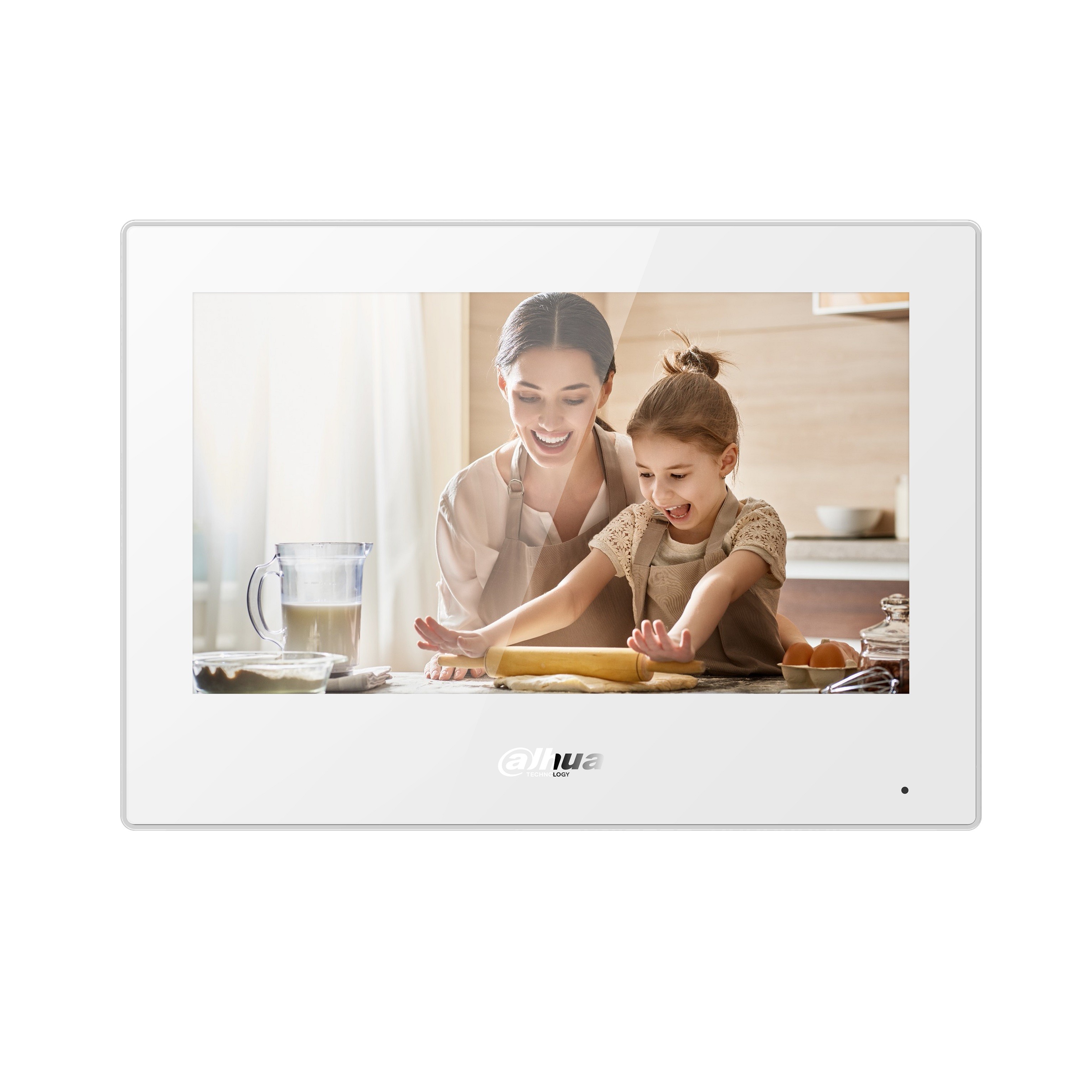

Dahua VD IP Android Doorphone Monitor - VTH5321GW-W

• Android 8.1
• More User-Friendly UI
• Ethernet and Wi-Fi
• 7" TFT Capacitive touch Screen,1024×600
• Quick configuration for villa system

System

• Main Processor : Embedded processor
• Operating System : Android 8.1
• Network Protocol : IPv4, TCP, SIP, UDP, RTSP

Basic

• Screen Type : Capacitive screen
• Display : 7-inch TFT screen
• Resolution : 1024 × 600
• Video Compression : H.264
• Audio Compression : PCM
• Audio Input : 1 omnidirection microphone
• Audio Output : Built-in 1W loudspeaker
• Audio Mode : Two-way audio
• Audio Enhancement : Support echo cancellation/DNR
• Audio Bit Rate : 16KHz, 16Bit

Function

• Communication Mode : Full digital
• Information Release : Text announcements released by the management center can be viewed
• Elevator Control : You can control the elevator through the indoor monitor
• Leave Videos or Text Messages : Support
• DND Mode : Support to set DND period
• Extension Number : Villa: 4 (Calls can be made among up to 3 indoor monitors when only Wi-Fi is connected.)
• Wi-Fi : Yes
• Wireless Standard : IEEE802.11b/802.11g/802.11n
• Wireless Frequency Range : 2.4GHz
• Wireless Security-Encryption : 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Storage : Micro SD storage, the maximum space is 256GB

Performance

• Casing : PC+ABS

Port

• RS-485 : 1
• Alarm Input : 8
• Alarm Output : 1
• Power Output : 1 12V/100mA
• Door Bell : Yes, use alarm input port
• Network : 1 10M/100M Ethernet

General

• Color : White
• Power Supply : 12V DC 1A / POE(802.3AF)
• Installation : Surface mount
• Certifications : CE / FCC
• Accessory : Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided
• Product Dimensions : 189.6 mm × 134.6 mm × 26 mm
• Operating Temperature : –10°C to +55°C
• Operating Humidity : 10%RH–95%RH (Non-condensing)
• Operating Altitude : Less than 3,000 meters (9842.52 ft)
• Power Consumption : ≤1.5W (standby), ≤7W (working)
• Net Weight : 385 g
• Gross Weight : 490 g
