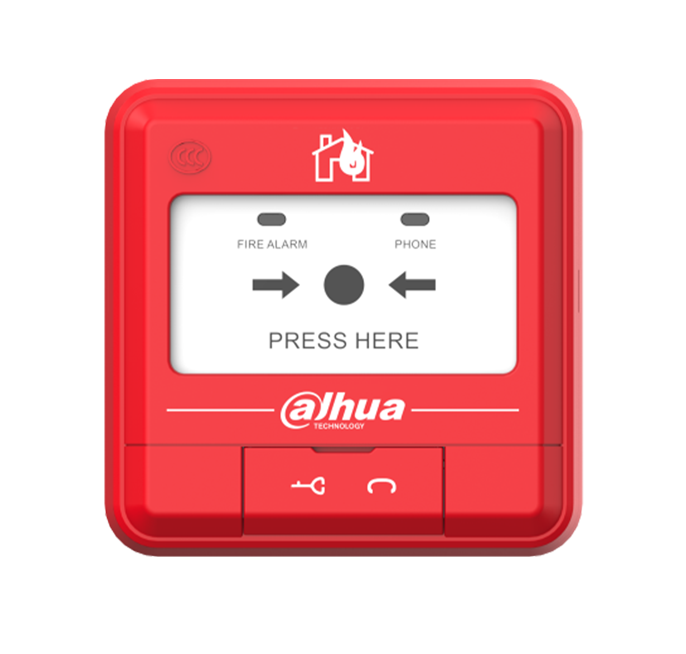

Dahua Addressable Fire Alarm Manual Call Point - HY-1200-CTXF - without Base

• Convenient wiring: Two-wire, polarity-free
• Reliable communication: Built-in microprocessor, performance is stable
• Ultra-low power consumption: Ultra-low monitoring current and alarm current
• Independent output: A pair of normally open contacts telephone system
• Simple installation: With a plug-in structure, easy to install and construct

Electrical

• Working Voltage : DC24V
• Current : Monitoring current: ≤ 100μA / Alarm current: ≤ 170μA
• Contacts Capacity : DC30V/100mA
• Indicator : Fire Alarm / Red indicator flashes slowly during polling, flashes quickly during malfunction and remains lit during alarm / Phone / Red indicator flashes during polling and communication

Communication

• Wiring : Two-wire, polarity-free
• Addressing Method : Electrical encoder
• Address Range : 1–254

Communication

Distance : 1500 m (4921.26 ft)

Environment

• Operating Temperature : –10°C to +55°C (+14°F to +131°F)
• Storage Temperature : –20°C to +65°C (–4°F to +149°F)
• Operating Humidity : ≤ 95% RH (no condensation)

Construction

• Color : Red
• Dimensions (with base) : 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73")
• Weight (with base) : 136 g (0.30 lb)
• Compliance Standard : EN54-11
