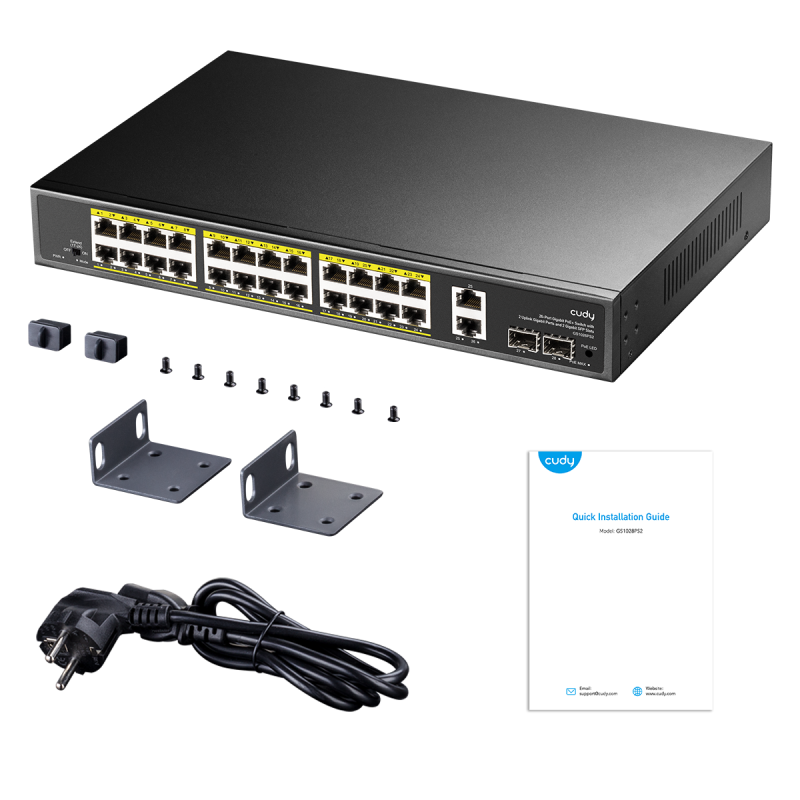

Cudy Switch PoE Gigabit 24PoE + 2GbE + 2SFP Uplink 300W RM - GS1026PS2 - RM

• Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
• 24× GbE PoE Ports, 802.3at / 802.3af (30W per port)
• Port 17-24 Supports CCTV Mode for max 250 meters transmission
• 300-watt total power supply
• Watchdog detects unresponsive PoE clients under VLAN mode
• PoE Port Priority streamlines device power management

Model: GS1026PS2

Connector Type: 24× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots

Network Protocol:

• IEEE 802.3 (Ethernet)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3x (Flow Control)
• IEEE 802.3z (Gigabit Ethernet Fiber Standard)

• PoE Standard: IEEE802.3af /IEEE802.3at
• Max each port: 15.4W ( IEEE 802.3af )
•
• Max each port：30W ( IEEE 802.3at )
• PoE compatibility: IEEE 802.3af/at adaptive
• PoE port output: DC48-55V
• Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

• 10BASE-T: Cat 5E UTP(≤250 meter)
• 100BASE-TX: Cat5 or more UTP (≤100 meter)
• 1000BASE-TX: Cat5 or more UTP (≤100 meter)

• MultiMode Fiber: 850nm, 1310nm,  Transmission Distance: 550m/2Km
• Single-Mode Fiber: 1310nm, 1550nm,  Transmission Distance: 20/40/60/80/100/120km

• Bandwidth: 56Gbps
• MAC: 8K
• Packet Buffer Memory: 3 Mbit
• Packet Forwarding Rate: 41.644 Mpps

Power Supply

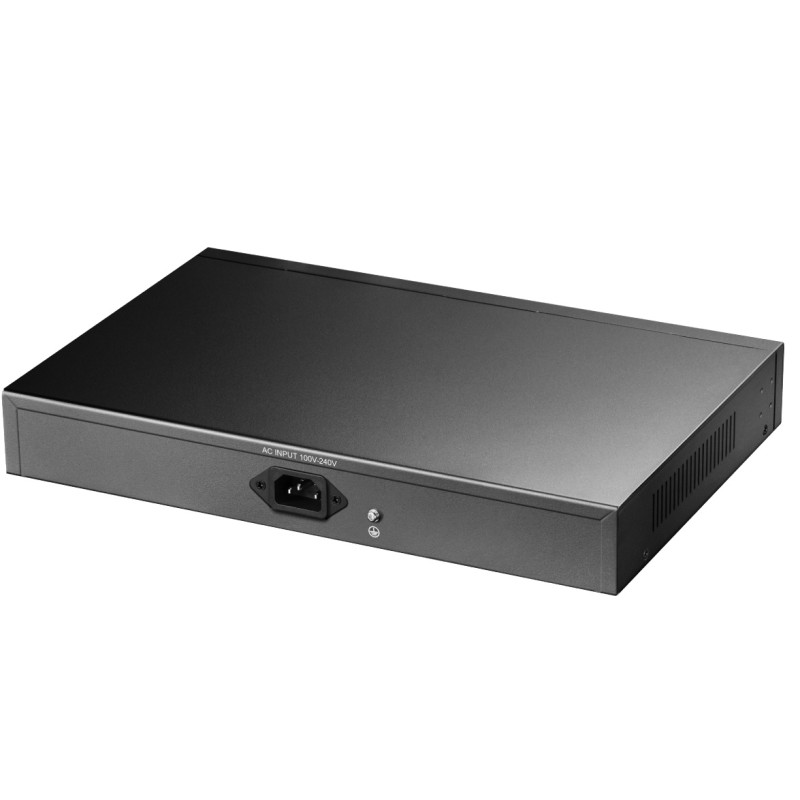

• Power input: AC100-240V 50/60Hz,  Power Budget: 300 W

LED Indicator

• PWR :Power supply indicator (Red)
• Lighting: Powered
• Un-Light: No Power

• PoE/RJ-45 Status indicator (Yellow)
• On: POE power supply is normal
• Off: POE not powered

• PoE/RJ-45 StatUs indicator (Green)
• On: Link normal
• Off: Link blocked
• Flashing: Data transmitting

• Operating Temperature: -20℃ ~ 50℃;
• Storage Temperature: -40℃ ~ 80℃;
• Operating Humidity: Max 90%, non-condensing
• Storage Humidity: Max 95%, non-condensing
• Working Height: Max to 10,000 feet (3,000 meters)
• Storage Height: Max to 10,000 feet (3,000 meters)
