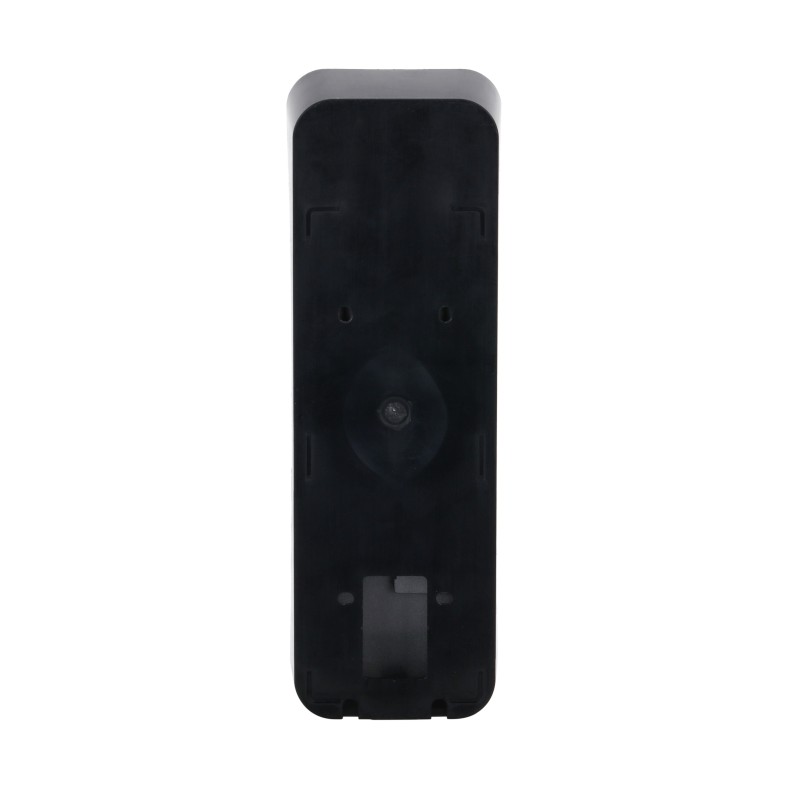

Dahua VD IP Wi-Fi Doorphone Camera - VTO2311R-WP - 1Button
€191.50
Tax included
Ultra-slim Dahua doorphone with 2MP IP/Wi-Fi camera, 1-button access, two-way video calls, and microSD storage up to 256GB.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Intercoms - Power | PoE |
|---|---|
| Intercoms - Access | Button |
| Intercoms - Camera | 1080p |
- Ultra slim design
- PC and ABS material make it ideal for indoor and outdoor use
- 1/2.8" 2-MP HD CMOS camera
- Offers two–way video call with indoor monitors
- Video and voice messages from visitors can be checked on the indoor monitor
- Video call and unlocking through app
- IR illumination and auto WDR
- Wi-Fi connection
- IP65 rated
- H.264 and H.265
- Unlock with IC card
- PoE power supply
System
- Main Processor : Embedded Processor
- Button Type : Mechanical
- Interoperability : ONVIF; CGI
- Network Protocol : RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
Basic
- Camera : 1/2.8" CMOS 2-MP HD camera
- Field of View : H: 110°; V: 62°; D: 133°
- WDR : 120 dB
- Noise Reduction : 3D NR; 2D NR
- Video Compression : H.264; H.265
- Video Resolution : Main stream: 720p, WVGA, D1, and CIF； / Sub stream: 1080p, WVGA, D1, QVGA, and CIF
- Video Frame Rate : PAL: 25 fps / NTSC: 30 fps
- Video Bit Rate : 768 kbps–8 Mbps
- Light Compensation : Auto IR
- Day/Night : Auto (ICR)/Color/B/W; Color/B/W
- Audio Compression : G.711a; G.711u; PCM
- Audio Input : 1
- Audio Output : Built-in speaker
- Audio Mode : Two-way audio
- Audio Enhancement : Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction
- Audio Bit Rate : 16 kHz, 16 bit
Function
- Communication Mode : Full digital
- Unlock Mode : Card; app; indoor monitor
- Card Type : IC card
- Auto Snapshot : Yes (SD card is inserted in the indoor monitor or door station)
- Leave Videos : Yes (SD card inserted in VTH/VTO is needed)
- Web Configuration : Yes
- Wi-Fi : Yes
- Wireless Standard : IEEE 802.11b; IEEE 802.11g; IEEE 802.11n
- Wireless Frequency Range : 2.4 GHz
- Storage : Micro SD card (max. 256 GB)
Performance
- Card Reading Distance : 0 cm–3 cm (0"–1.18")
- Issue Card Locally : Yes
- Casing : PC+ABS
Capacity
- Card Capacity : 3000
Port
- Exit Button : 1
- Door Status Detection : 1
- Lock Control : 1
- Network Port : 1 × RJ-45 10/100 Mbps Ethernet port
Alarm
- Tamper Alarm : Yes
General
- Appearance color : Light grey
- Power Supply : 12–33 VDC, 1 A ; Standard PoE
- Power Adapter : Optional
- Installation : Surface Mount
- Certifications : CE; FCC
- Accessory : Included: Alarm power ribbon cable, rain cover
- Product Dimensions : 160 mm × 50 mm × 30 mm
- Protection : IP65
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : 10%–90% (RH), non-condensing
- Operating Altitude : 0 m–3,000 m
- Power Consumption : ≤ 3.5 W (standby), ≤ 6 W (working)
- Gross Weight : 0.4 kg
- Net Weight : 0.18 kg
| Connectivity | IP/Wi-Fi |
| Image Sensor | 2MP |
| Material | PC+ABS |
| Angle of View | H: 110°; V: 62°; D: 133° |
| IP Rating | IP65 |
| Access Type | RFID |
| Recording | Photos & Video |
| Door Control | 1 x Relay Out,1 x Feedback,1 x Exit Button |
| Installation | Surface |
| Memory Slot | Micro SD, Max 256G |
| Users | Many |
| POE | Yes |
