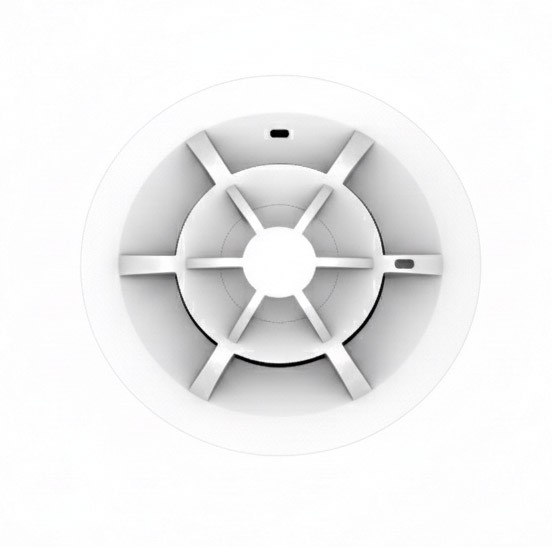

Dahua Conventional Fire Alarm Detector - HY-C135 - With Base (Smoke & Heat)
€22.50
Tax included
3W-B multi-sensor smoke/heat detector with two-wire polarity-free power; microprocessor-based communication; ultra-low monitoring and alarm currents; EN54-5/EN54-7 compliant.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- 3W-B multi-sensor smoke and heat detector with two-wire and polarity-free power supply
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- High-performance sensor featuring a split-spectrum optical smoke detector and a sensitive thermistor
- Designed in accordance with EN54-5 and EN54-7 standard
- Power : DC24V
- Current Monitoring current : ≤ 70μA
- Alarm current : ≤ 15mA
- Indicator : Red LED / Polling : Flash every 6 seconds / Alarm : Remain lit / Fault: Flash every 2 seconds
- Alarm Threshold for Heat : Detection A2R (54°C to 62°C) (129°F to 144°F)
- Wiring : Two-wire, polarity-free
- Operating Temperature –10°C to +55°C (+14°F to +131°F)
- Storage Temperature –20°C to +65°C (–4°F to +149°F)
- Operating Humidity ≤ 95% RH (no condensation)
- Color : White
- Dimensions (with base) : Φ 100 mm × 68.7 mm (Φ 3.94" × 2.70")
- Weight : (with base) 110.0 g (0.243 lb)
- Compliance Standard : EN54-5, EN54-7
