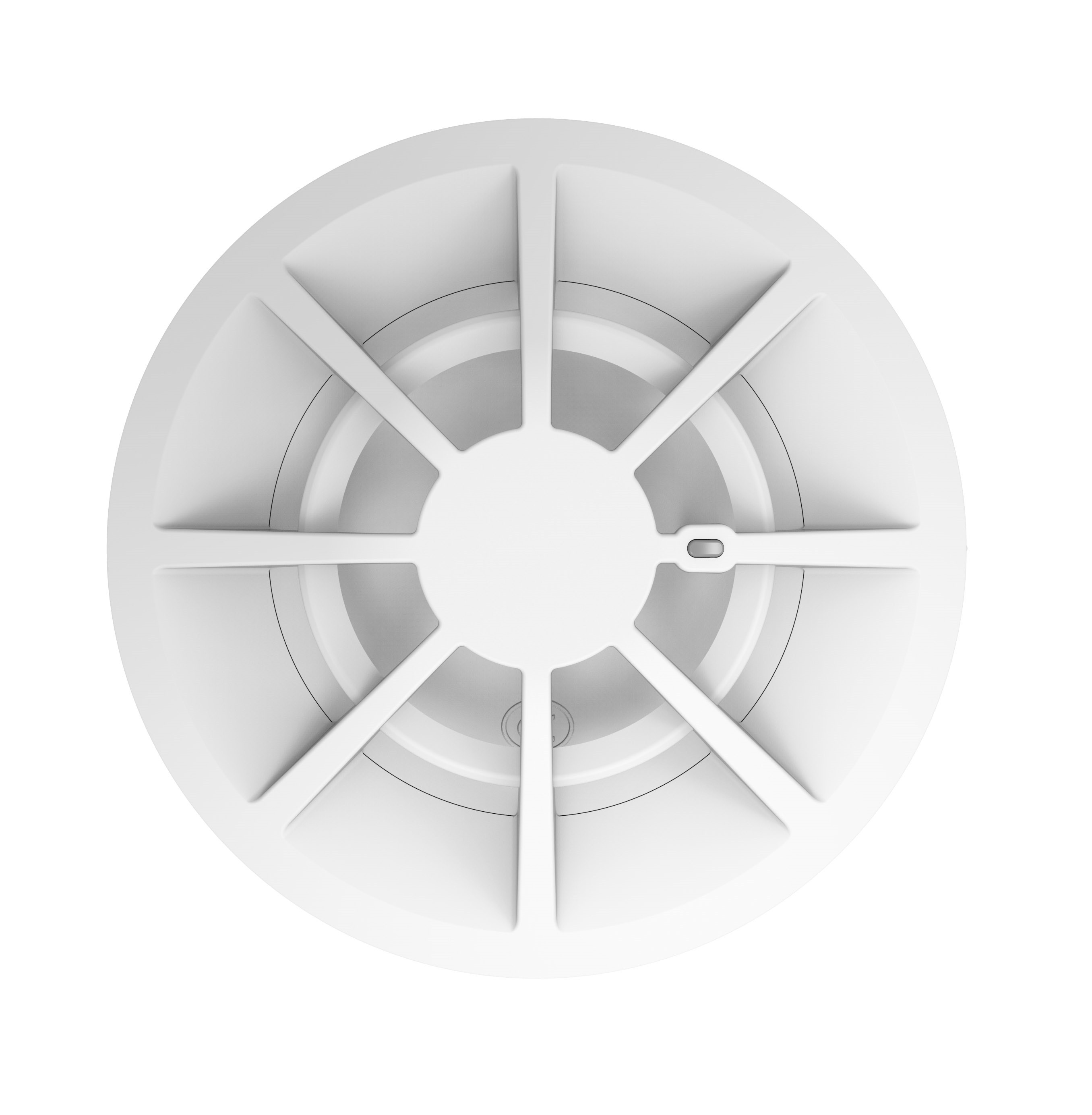

Dahua Addressable Fire Alarm Detector - HY-1310-CTXF - Without Base, Heat
€10.50
Tax included
Addressable heat fire detector with two-wire, polarity-free wiring, built-in microprocessor for stable performance, and ultra-low monitoring/alarm currents (24V DC).
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Smoke/CO Detectors - Detector Type | Heat |
|---|
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- Detection performance: Accurate temperature detection by sensitive sensor
- Power : 24V DC
- Current : Monitoring current: ≤ 120μA / Maximum operating current: ≤ 170μA
- Indicator : Red / Polling: Flash 6 seconds / Alarm: Remain lit / Fault: Flash 2 seconds
- Product Type : A2R
- Alarm Threshold : 54°C to 62°C (129°F to 144°F)
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1–254
- Communication Distance : ≤ 1500 m (4921.26 ft)
- Operating Temperature : –10°C to +50°C (+14°F to +122°F)
- Storage Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : ≤ 95% RH (no condensation)
- Color : White
- Dimensions (with base) : Φ 100 mm × 50 mm (Φ 3.00" × 1.50")
- Weight (with base) : 81 g (0.18 lb)
- Compliance Standard : EN54-5
