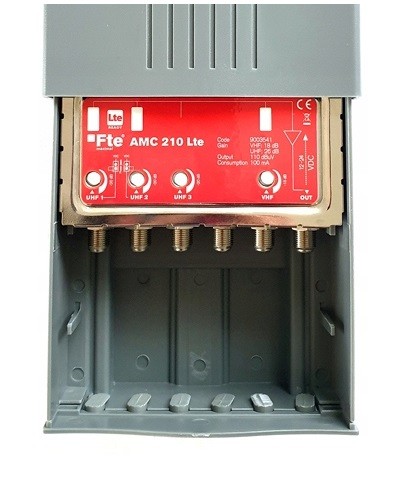

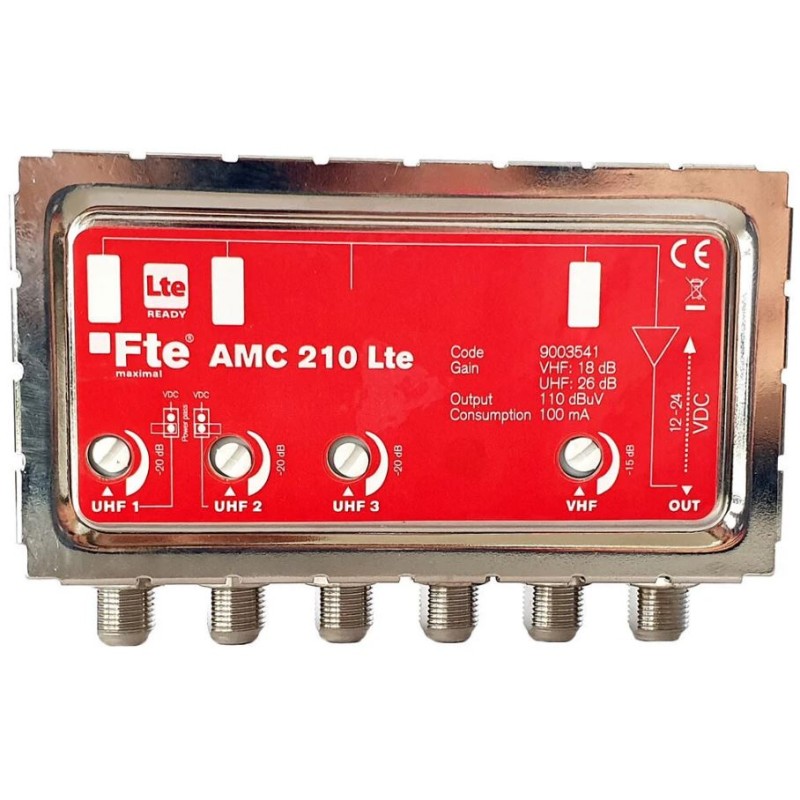

FTE Mast Amplifier - AMC210 - LTE Configurable VHF UHF
€25.50
Tax included
Mast amplifier for VHF/UHF with 3 inputs (1 VHF, 3 UHF); LTE configurable. UHF gain 26 dB, VHF 18 dB; VHF NF 3 dB, UHF 4 dB.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
- Inputs and bands: 1: VHF / 3: UHF (470-790 MHz)
- Gain: VHF: 18 dB / UHF: 26 dB
- Regulation: VHF: 15 dB / UHF: 20 dB
- Noise figure: VHF: 3 dB / UHF: 4 dB
- Output level: 110 dBµV
- Current consumption: 100 mA
- Power Supply: 12 to 24 VDC
- Feeding (VDC): Yes / 2 UHF
| Type | Mast Amplifier |
| Inputs | 3 |
| UHF Inputs | 3 |
| VHF Inputs | 1 |
| Outputs | 1 |
| Gain per output | 26db |
| Total Output | 110db |
