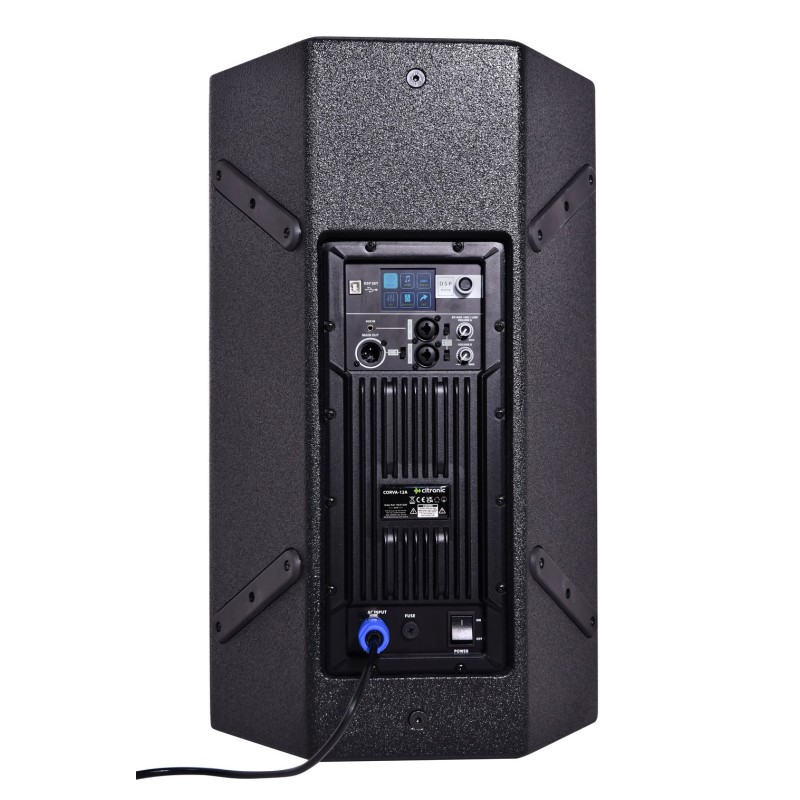

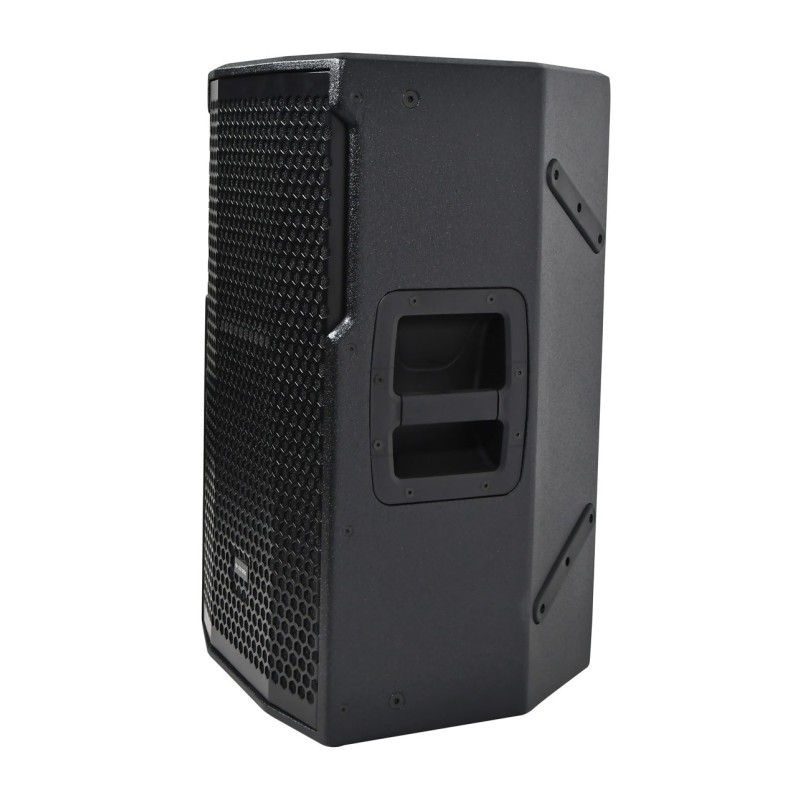

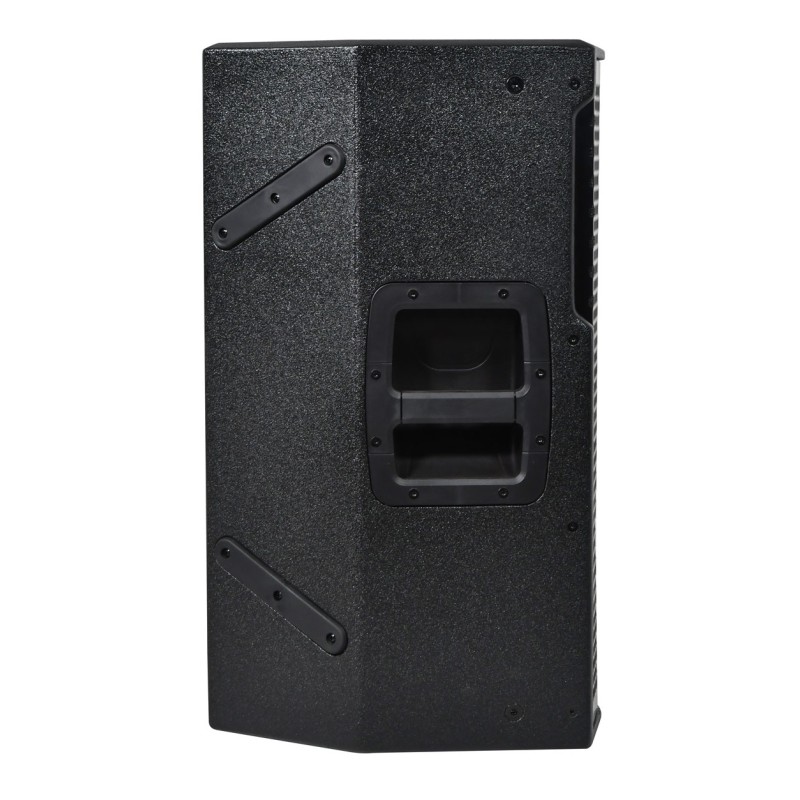

Citronic Speaker - CORVA-12A - 12'' Active Plywood Speaker 1400W with DSP

CORVA active speaker cabinets are a milestone in the Citronic commitment to high quality sound at all levels, packing a remarkable level of output into a single heavy duty cabinet. Designed for stacking or pole mounting, these cabinets can equally be deployed at height, using the 12 x M8 flying points. Each enclosure is loaded with specially designed heavy duty drivers to deliver powerful and immediate sound pressure levels. Each powerful class-D amplifier section is DSP controlled with a menu-driven colour display for setting EQ profiles, dynamics and gain. In-depth editing is enabled via a USB interface to connect a PC and accurately adjust, test and save custom DSP settings. For larger sound reinforcement applications, CORVA active cabinets have the capability and flexibility to provide big sound on demand.

• Specially developed heavy duty driver components
• Inbuilt high power class-D amplifiers

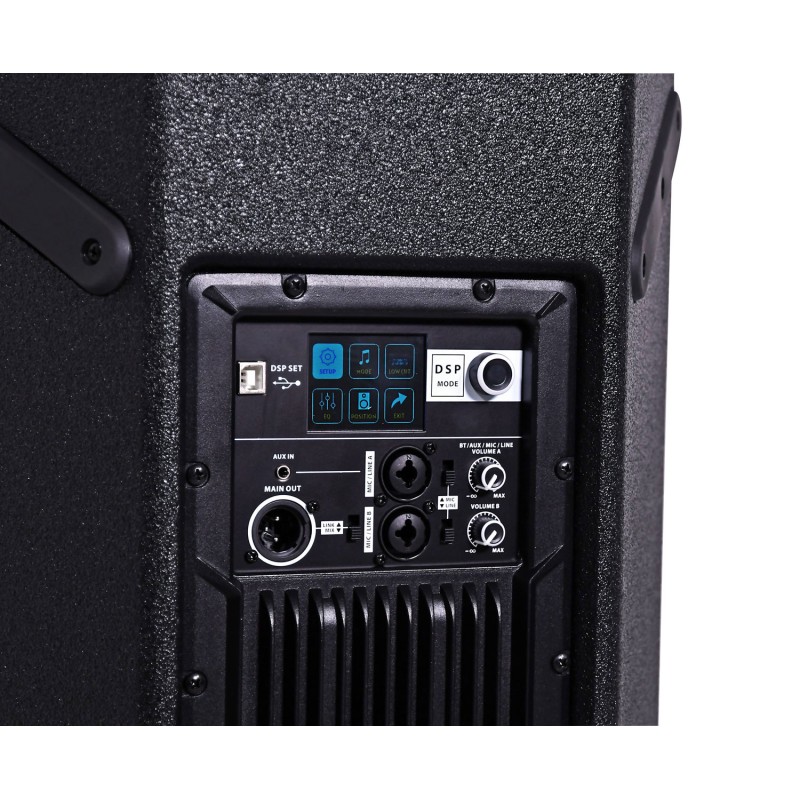

• Menu driven DSP with colour display and USB-PC interface
• Sturdy plywood enclosure with polyurea finish


• Main driver : 300mmØ (12") with 100mm voice coil
• HF driver : 75mmØ (3") Ti compression driver
• Output power : max. : 1400W
• Output power : rms : 700W
• SPL max. 130dB
• Sensitivity @ 1W/1m : 99dB
• Frequency response : 50Hz - 20kHz
• Power supply : 230Vac, 50Hz (Powercon)
• Construction : 15mm MDF with polyurea finish
• Inputs : 2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm)
• Line output : XLR
• Amplifier : construction : Class-D, DSP controlled
• Impedance : 8 ohms (main driver and HF driver)
• Flying points : 12 x M8
• Fuse rating : T4A
• Weight : 29.5kg
• Dimensions : 640 x 380 x 370mm

In the Box

• CORVA series active PA cabinet
• Twist-lock mains power lead
