iEast PRO Amplifier - AMP80v2 - Wireless Multi-Room Stereo Amplifier 2x80W@4ohms

AMP80 is an 80Wx2 wireless/Bluetooth stereo amplifier that can directly drive 4Ω/8Ω speakers, stream music via WiFi and Bluetooth. Once set up, just use your iPhone®, iPad®, Android, Harmony® phones and tablets, Mac® and Windows® laptops to stream your favorite music to speaker in your home.

With built-in Spotify Connect, AMP80 lets you stream directly from the cloud. Initiate streaming from your mobile device, and AMP80 will stream content uninterrupted even if you turn off your phone. At the same time, it also has analog and coaxial digital inputs, which can simultaneously stream other audio sources (such as DVDs, TVs) to other speakers

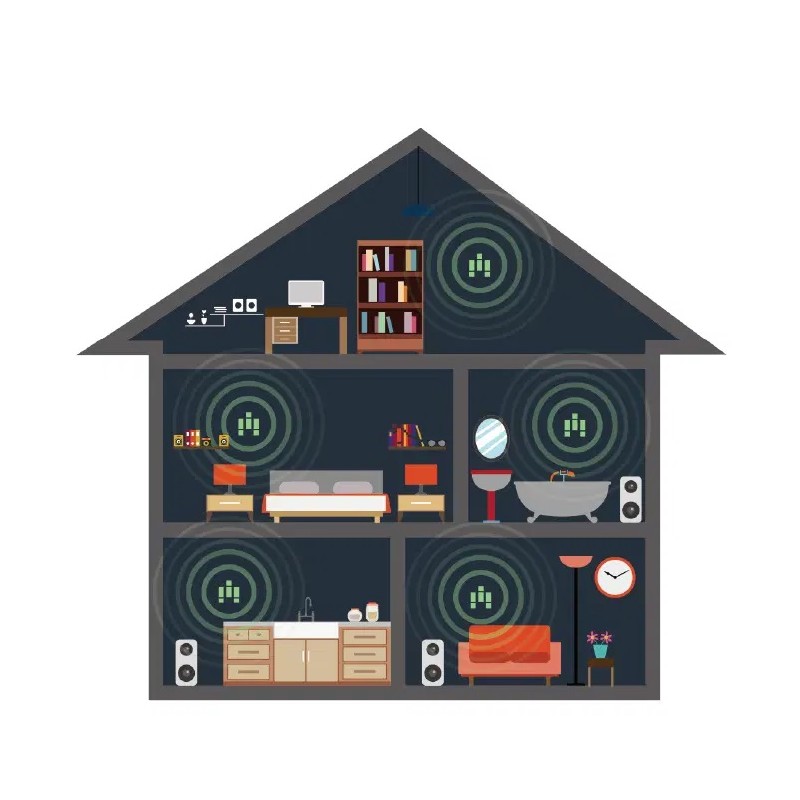

Multi-room listening with better sound : Add more IEAST streaming devices in your home, connect your best speakers, place it in different rooms, and you'll be able to: Stand-alone mode: Stream different music in different rooms without interfering with each other; Partition mode: Partition or all speakers play songs synchronously, and enjoy them together

ESS9023+TDA7498E : Classic ESS9023 DAC audio decoding chip from ESS and TDA7498E high performance analog CLASS D audio amplifier chip from ST are adopted. The combination of the two has the characteristics of strong parsing ability, pure tone color and high power and low distortion output

WiFi / Ethernet / Bluetooth : Supports 802.11b/g/n /Wi-Fi and 10/100M Ethernet, providing a more stable and fast network connection rate. After networking, you can easily listen to online high-quality music, network radio and your local music collection

Support Spotify Connect : With Spotify Connect, you can use one device to remotely control listening on another. You're no longer restricted to listening to the catalogue solely through your phone or desktop. Spotify Connect is a godsend for house parties – so long as you trust your friends with the controls!  but it's really for anyone who wants to easily access Spotify's 60-million-song-catalogue and curated playlists on hi-fi and AV kit and smart speakers without the hassle of Bluetooth pairing

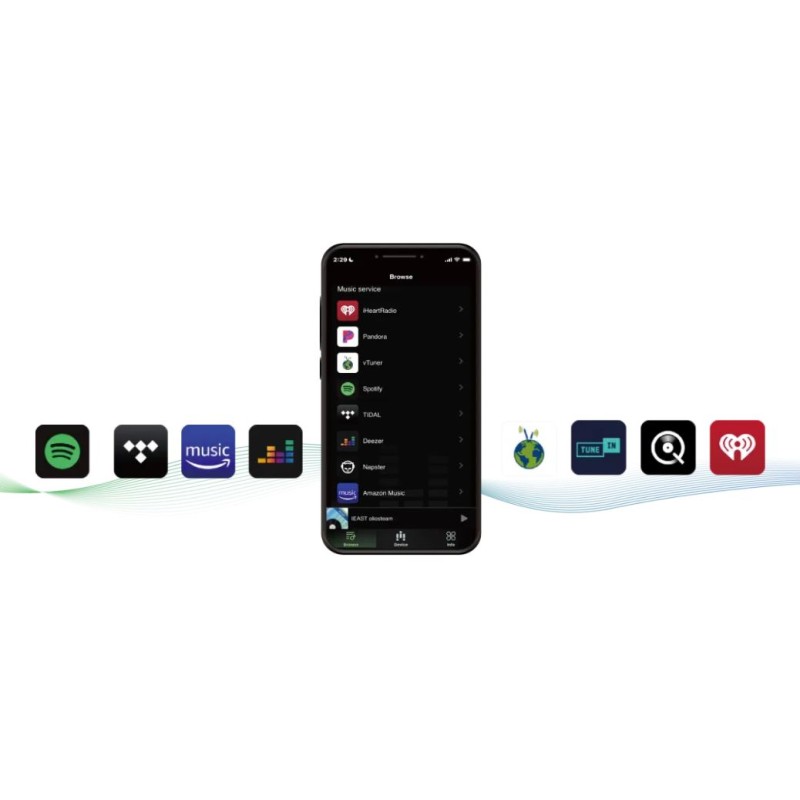

IEAST controller apps : With the IEAST controller application, you can quickly set up your IEAST wireless audio products. Easily achieve multi-room music synchronization, product free combination, playback control, EQ adjustment and many more features

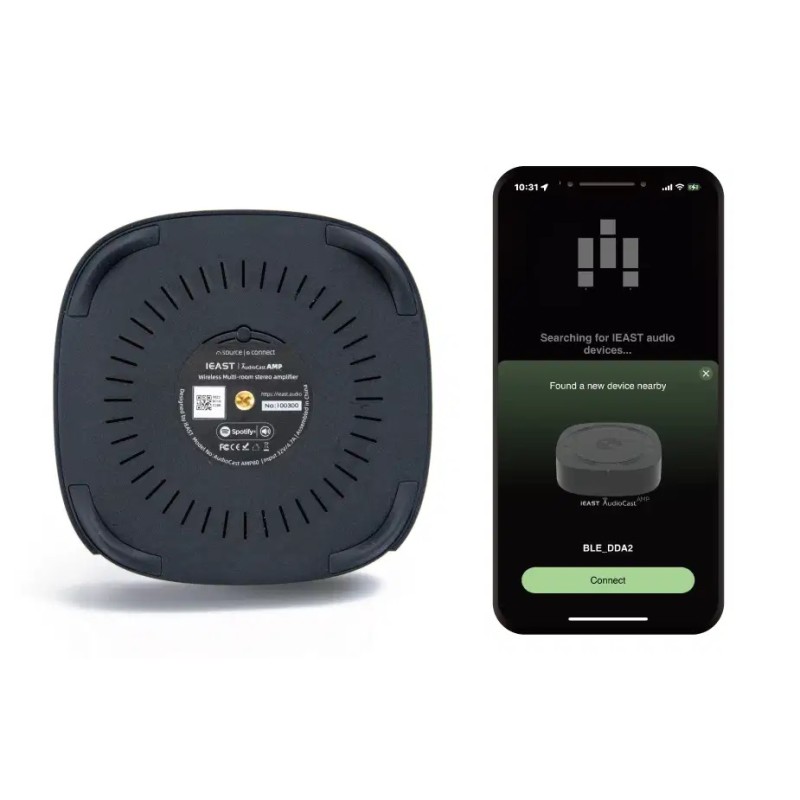

Super easy setup : The new AMP80 will pop up automatically on the IEAST controller app. Follow the in-app guide, the AMP-i50Bv2 could be set up in less than 2 minutes

Inputs

• 2.4GHz WiFi
• Bluetooth V5.0
• AUX in (3.5mm)
• Coaxial in (3.5mm)

Outputs

• Number of output channels: 2
• Power (W / channel) | 4 ohms | 1 kHz: >80W @ 1% THD+N
• Power (W / channel) | 8 ohms | 1 kHz: >65W @ 1% THD+N
• Input Sensitivity : ~700 mV – full power
• Maximum input voltage (RMS) : 1 V
• Signal to noise ratio (SNR) at THD+N < 1%, f = 1 kHz, Gain = 26 dB : 90 dB
• Total Harmonic Distortion THD + N@1 KHz : < 0.1%

Wireless network compatibility : IEEE802.11 b/g/n 2.4GHz

Ethernet : 10/100M

Bluetooth

• Bluetooth 5.0
• Bluetooth Audio codec:SBC

Supported audio formats : APE/FLAC/MP3/WAV/AAC/AAC+/WMA/ALAC/AIFF

Streaming Protocol

• DLNA
• Airplay
• Spotify connect
• Qplay

Smart home

• TCP/IP
• Infrared IR

DAC: ESS9023

Audio Decoding : Up to 24bit/192KHz

Resolution : 44.1kHz/24bit

Supply voltage

• DC:32V/4.75A
• AC:100-240V ~50/60Hz 2.5A

Amplifier size (H x D x W) : 136x134.8x40.1mm（Built-in antenna）

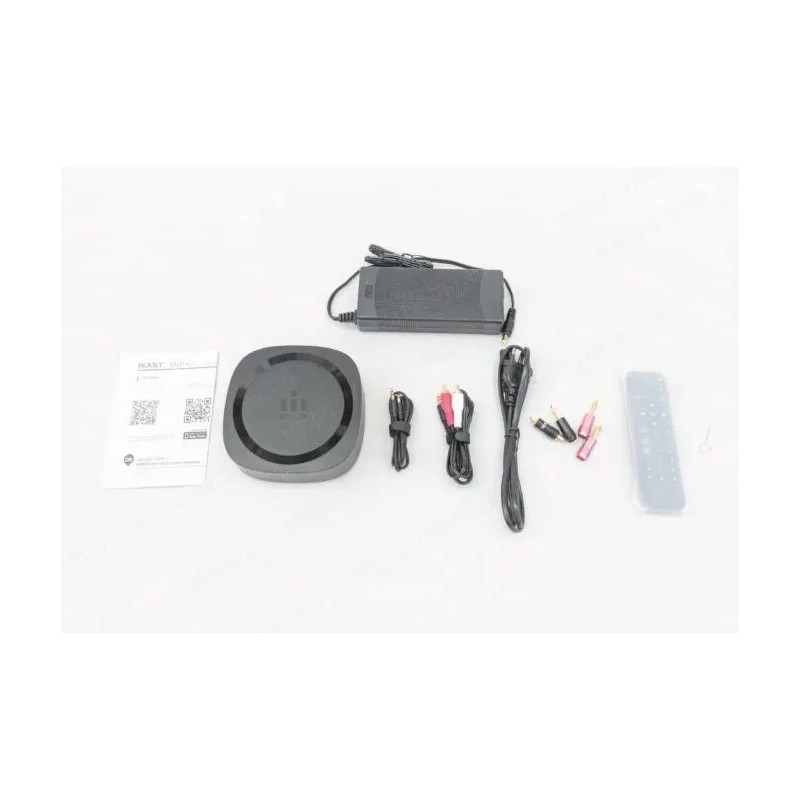

Accessories

• 32V4.75A Power Suppy
• 3.5'' male to male audio cable
• Speaker banana head*4
• User Manual
• Remote control kit
