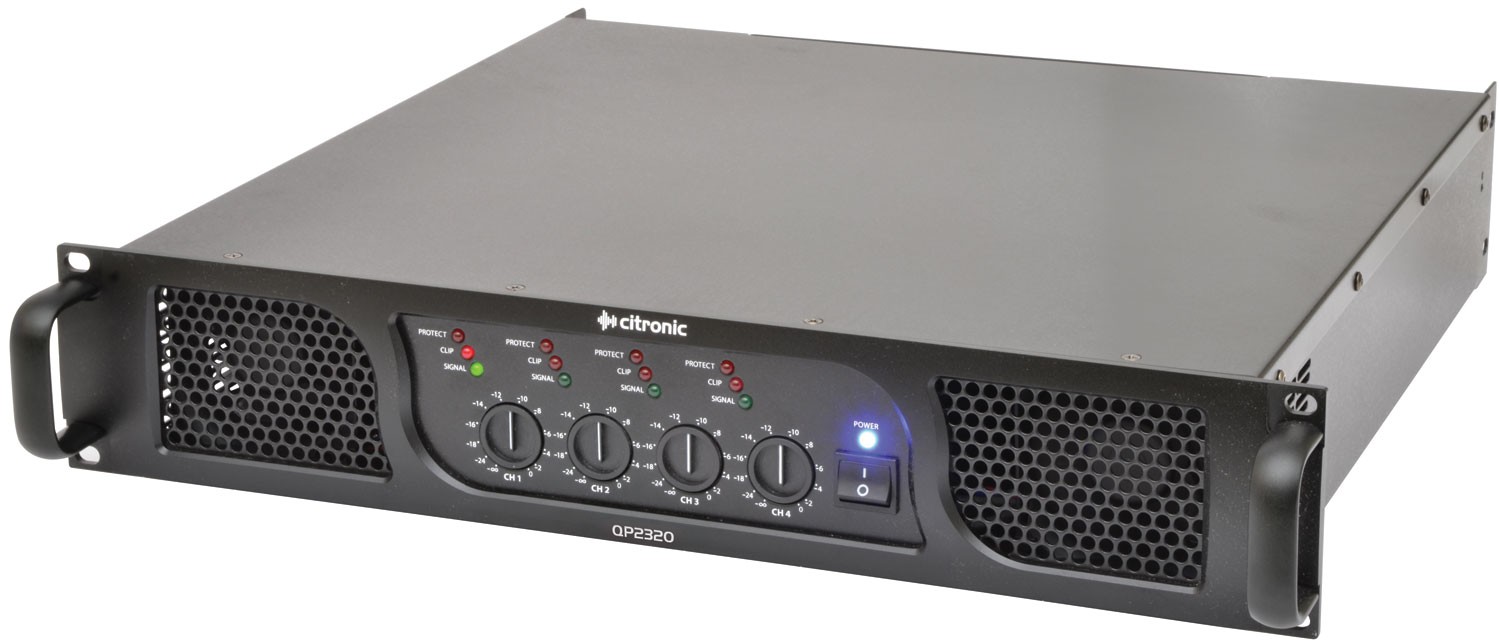

Citronic Quad Power Amplifier - QP2320 - 4x580W@2ohms 172.243UK
€562.50
Tax included
Quad power amplifier with 4 independent channels, individual volume controls, balanced inputs, and parallel outputs for daisy-chaining to additional amplifiers.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Quad power amplifier with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
- Fully balanced signal path
- Stable down to 2 Ohms
- 2U rack-mountable
- Power rms @ 8 Ohms: 4 x 300W
- Power rms @ 4 Ohms: 4 x 450W
- Power rms @ 2 Ohms: 4 x 580W
- Fuse rating: F12A
- Speaker : outputs: 4 x SPK connectors
- Power supply: 230Vac, 50Hz (IEC)
- Input : line: 4 x XLRF balanced
- Output : line: 4 x XLRM (parallel from inputs)
- Input impedance: 20k Ohms
- Frequency response: 5Hz - 50kHz
- THD: 0.05%
- Slew rate: 40V/usec
- S/N ratio: 103dB
- Controls: 4 x channel gain
- Circuit protection: Short-circuit, DC, overload, soft-start
- Dimensions: 483 x 439 x 88mm
- Weight: 23.5kg
| Channels | Quad |
| Power (8ohm) | 4 x 300 |
| Power (4ohm) | 4 x 450 |
| Power (2ohm) | 4 x 580 |
| Amplifier Class | Class A |
| 2ohm Stable | Yes |
| Warranty | 3 Years |
