Chord UHF Wireless Handheld Microphone - NU1-H - 863.1MHz 171.981UK
€102.50
Tax included
Wireless UHF handheld microphone system with fixed transmitter and half-rack receiver; 19" rack mounting with included ears.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

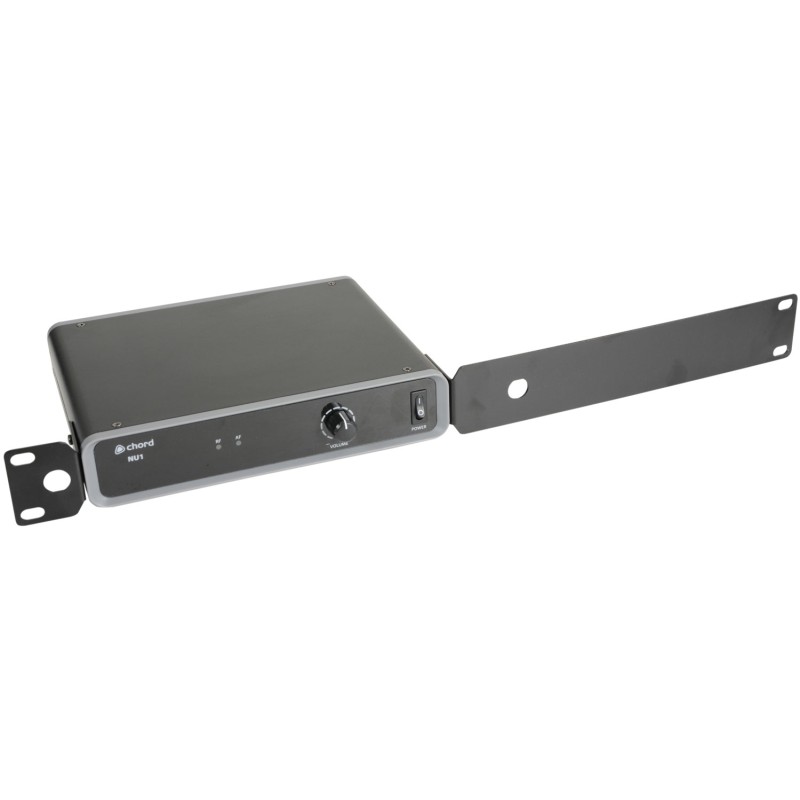

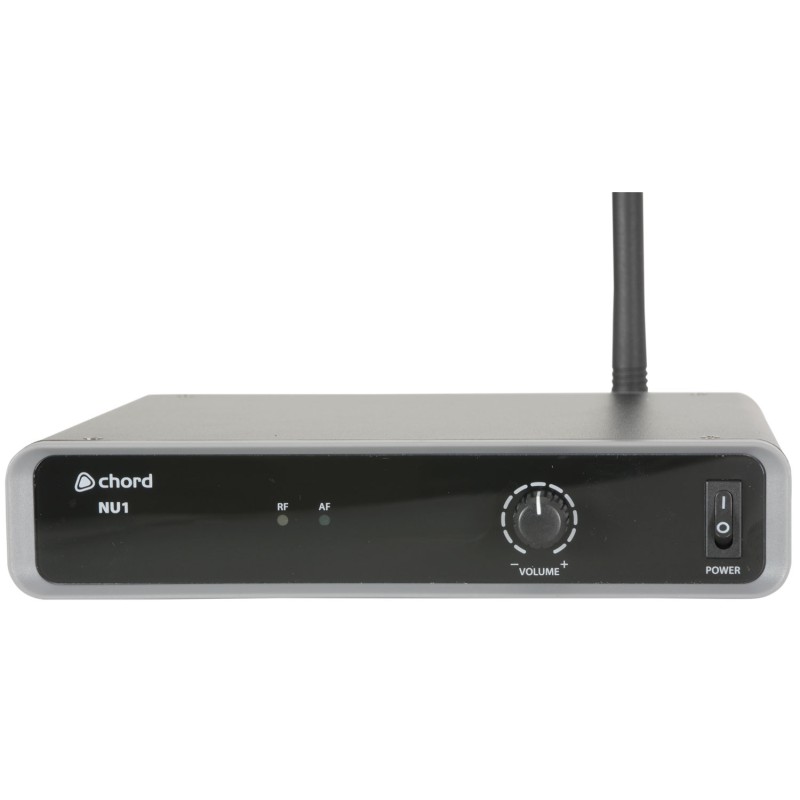

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.
- Pilot tone & mute circuit for stable signal
- Licence free operation in EU
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
Specifications
- Power supply 12-18Vdc, 350mA (mains adaptor included)
- Batteries 2 x AA (for transmitter - included)
- Range 60m
- Signal to noise ratio >105dB
- THD <0.5% @ 1kHz
- Frequency response 50Hz-18KHz ±1 dB
- Image rejection >85dB
- Output impedance 2.2k Ohms
- Output level 400mV (balanced), 200mV (unbalanced)
- Dimensions : receiver 44 x 198 x 190mm
- Weight : receiver 710g
- Dimensions : transmitter 243 x 48mmØ
- Carrier frequency 863.1MHz
| Type | Handheld |
| Band | UHF |
| Channels | Single |
| Frequencies | 1 |
| Rack Mounted | Yes |
