Citronic USB Audio Interface - 173.650UK - 2 Mics+1 Instrum

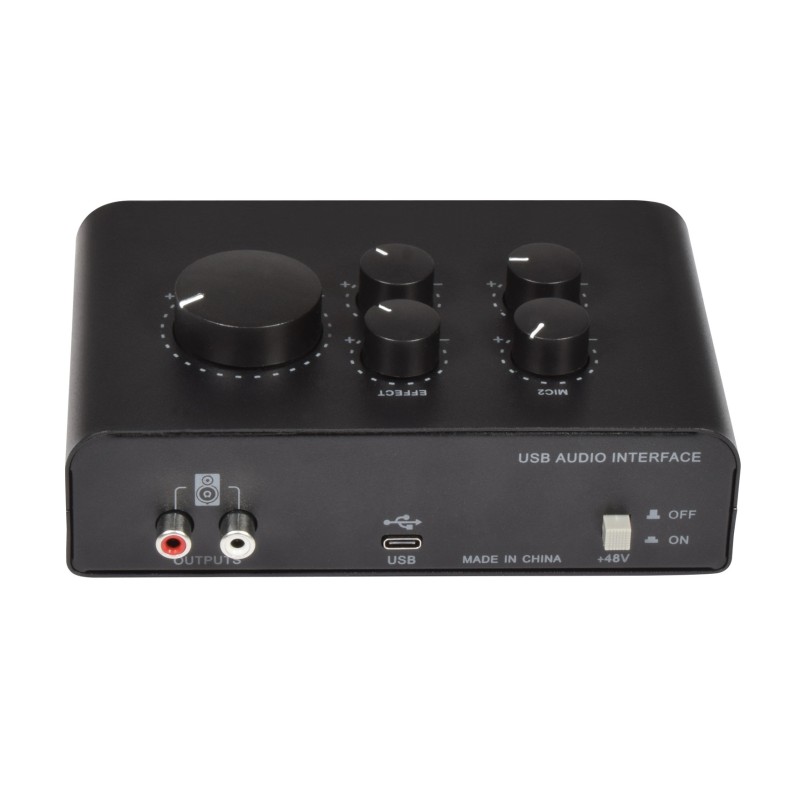

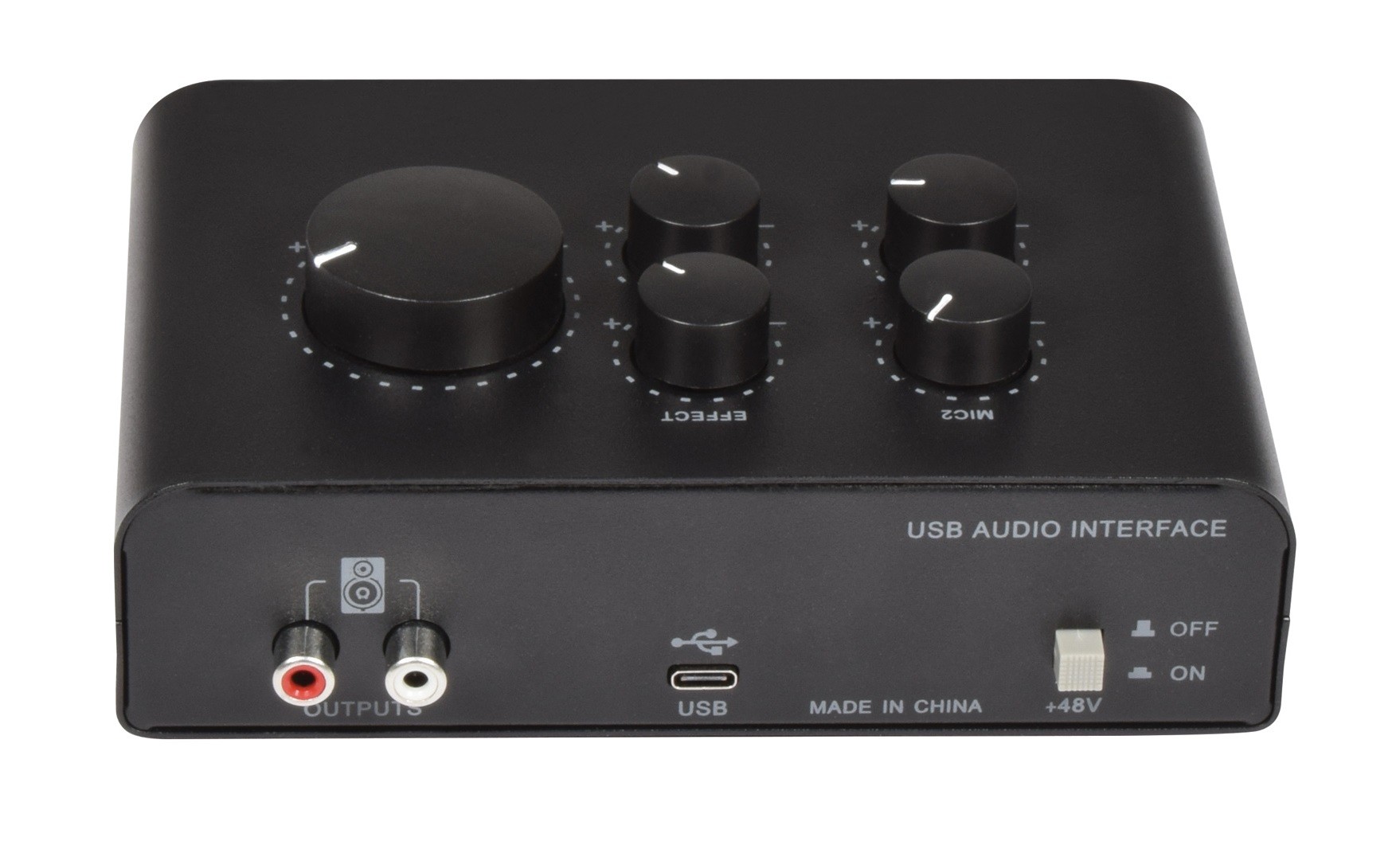

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with deparate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

• 2 XLR/jack microphone inputs with gain and mute control
• Separate instrument 6.3mm jack input
• 48kHz sample rate
• Inbuilt echo effect

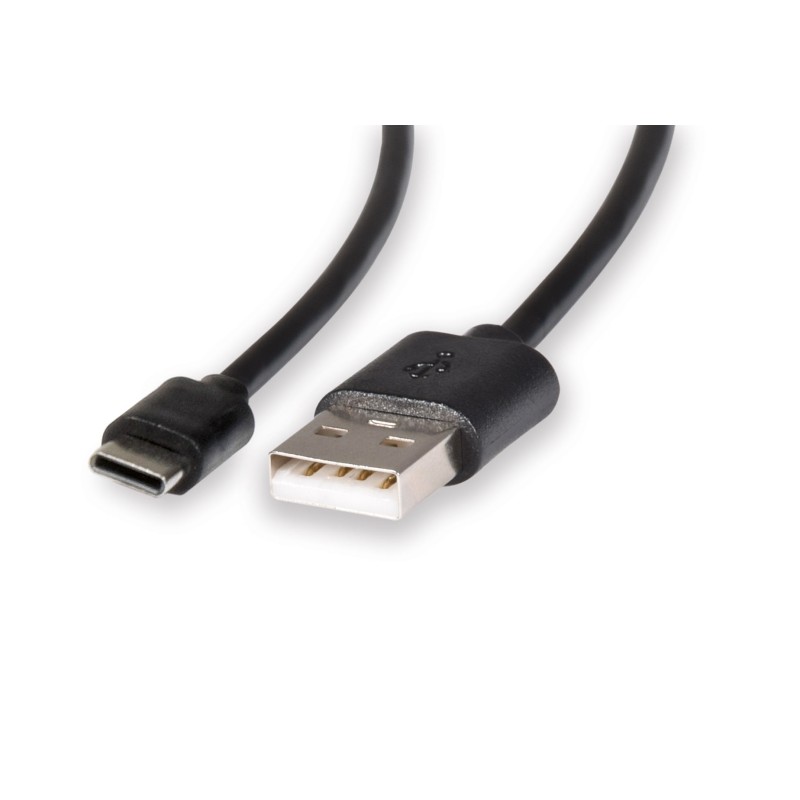

• 1.5m USB type C to A lead supplied

• Power supply: 5Vdc (from USB)
• Connection: USB type-C

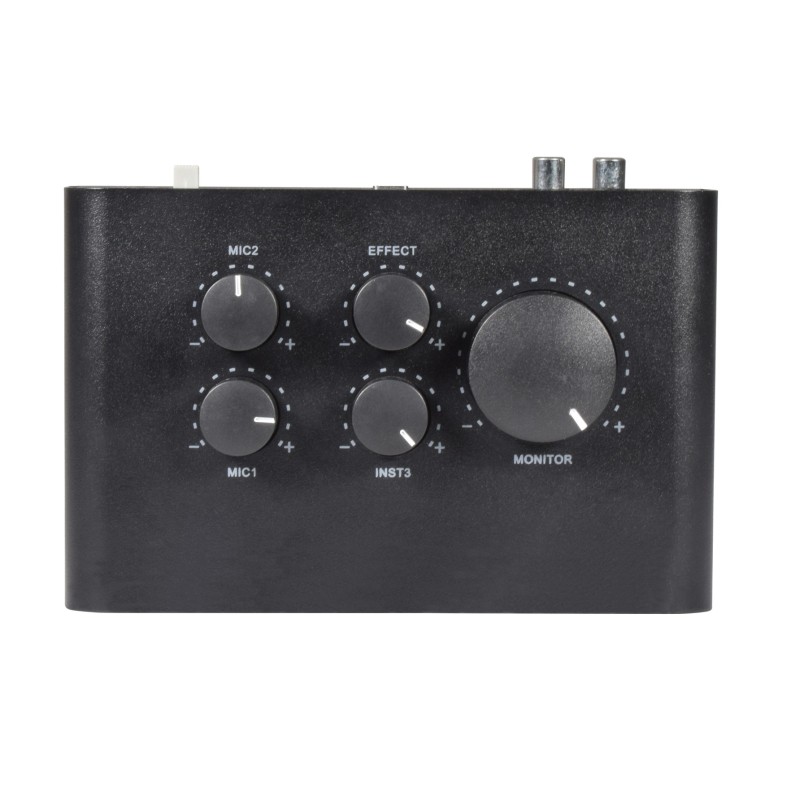

• Controls: Mic1, Mic2, Inst3, Effect, Monitor
• Input connections: 2 x mic XLR/Jack, 1 x 6.3mm instrument jack
• Phantom power: +48V switchable to XLR inputs
• Frequency response: 10Hz - 30kHz (-0.5dB)
• Input impedance : instrument: 1M Ohm
• Input impedance : mic: 3k Ohm
• Max. input sound level: Mic or Instrument +2dBu, Line +22dBu
• Dynamic range: 100dB (A-weighted)
• Sampling format: 48kHz, 16-bit
• Monitor outputs: Headphones (stereo 6.3mm jack), Line out (L+R RCA)
• Dimensions: 160 x 110 x 57mm
• Weight: 529g
