Mercury CAT5e Cable CCA UTP 305m Grey - 808.021UK - CAT5e CCA UTP 305m Grey
€61.00
Tax included
Note: CCA cables not recommended for PoE. Solid-conductor Cat5e UTP data cable in dispensing box, marked at 1 m intervals; indoor use, Grey, 305 m.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Ethernet Cables - Length Range | Other |
|---|---|
| Ethernet Cables - PoE Compatible | No |
Important Note: CCA Cables are not recommended for POE installations

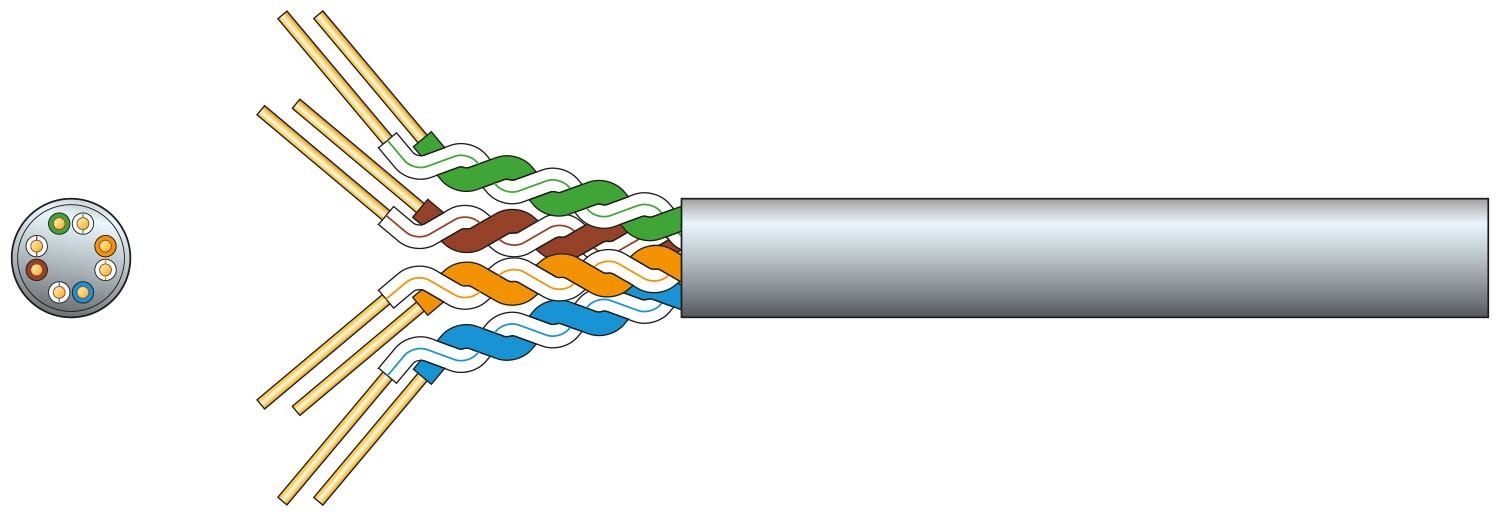

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.
- Solid copper clad aluminium conductor
- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- Conductor: Solid CCA
- Strands: 8 x 1/0.51mmØ ±2%
- CSA: 8 x 0.204mm²
- Cable diameter: 5mmØ
- Insulation: HDPE 0.19mm thickness
- Sheath: PVC 0.5mm thickness
- Impedance: 100 Ohms (±15)
- DC resistance @ 20°C:
- Return loss: >20dB @ 100m
- NEXT: >40dB @ 100m
- PSNEXT: >38dB @ 100m
- Cable colour: Grey
- Length: 305m
- Weight: 6kg
| Type | Cat5e |
| Cable Type | UTP |
| Conductor | CCA |
| Environment | Indoor |
| Length | 305m |
| Colour | Grey |
