AJAX FIBRA PIR MotionProtect White - Requires License

• ** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license
• MotionProtect Fibra is a wired motion detector. It can recognize motion at a distance of up to 12 meters. Does not respond to pets up to 50 centimeters tall and weighing up to 20 kilograms. For indoor installation
• The detector is compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Connection to other hubs, radio signal range extenders, ocBridge Plus, and uartBridge is not provided
• MotionProtect Fibra works as part of the Ajax security system, exchanging data with the hub using the secure Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair
• MotionProtect Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by accredited Ajax partners

Compatibility

• Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)

Communication

• Fibra communication technology : Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
• Bus connection: 4-core cable
• Encrypted communication
• Bus line length : up to 2,000 meters  / When using twisted pair U/UTP cat.5

Motion detection

• Sensing element : 1 × PIR sensor
• Motion detection distance : up to 12 meters When installed at 2.4 meters height

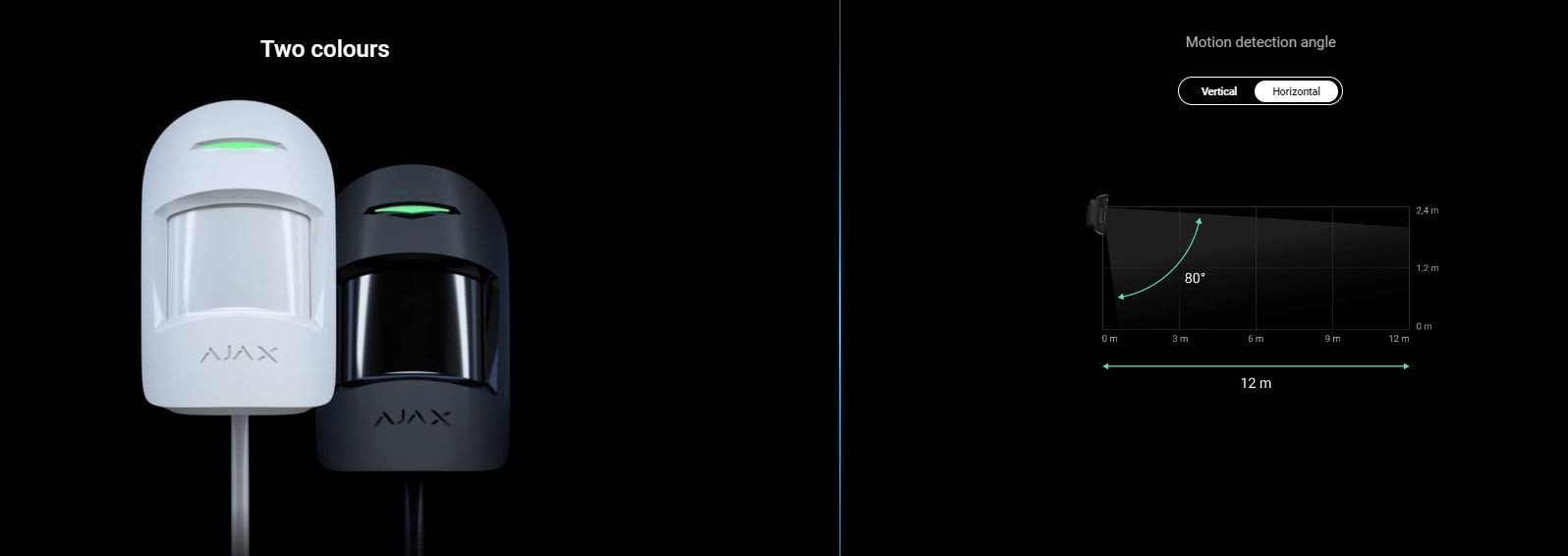

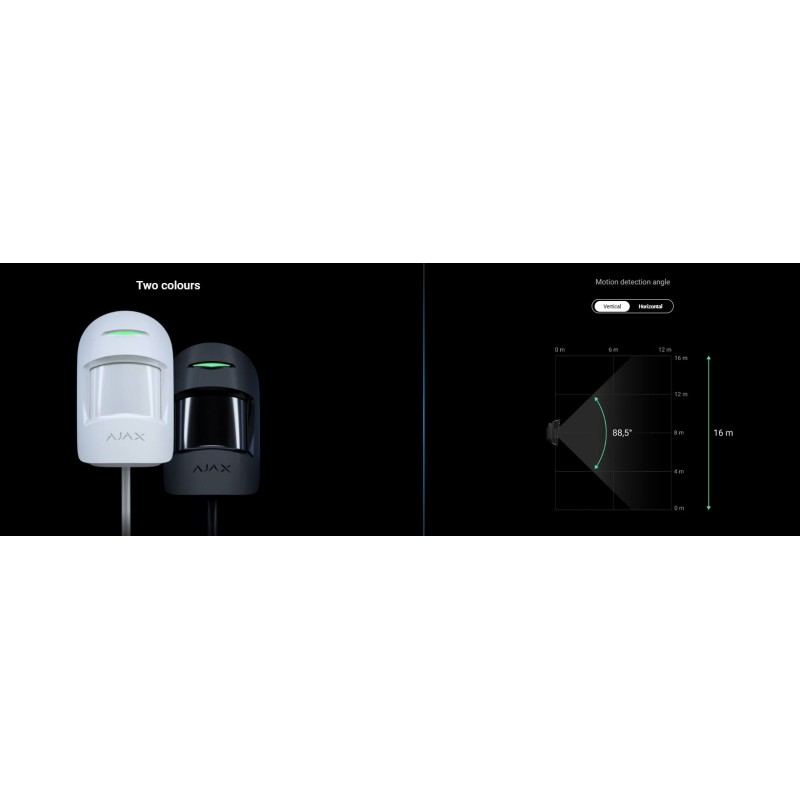

• Motion detection angles : horizontal — 88.5° / vertical — 80°
• Motion detection speed : from 0.3 to 2.0 m/s / The direction of the detector lens should be perpendicular to the intended path of entry into the facility
• Sensitivity : 3 levels / Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app
• Pet immunity : up to 20 kg / up to 50 cm height
• False alarm prevention : SmartDetect

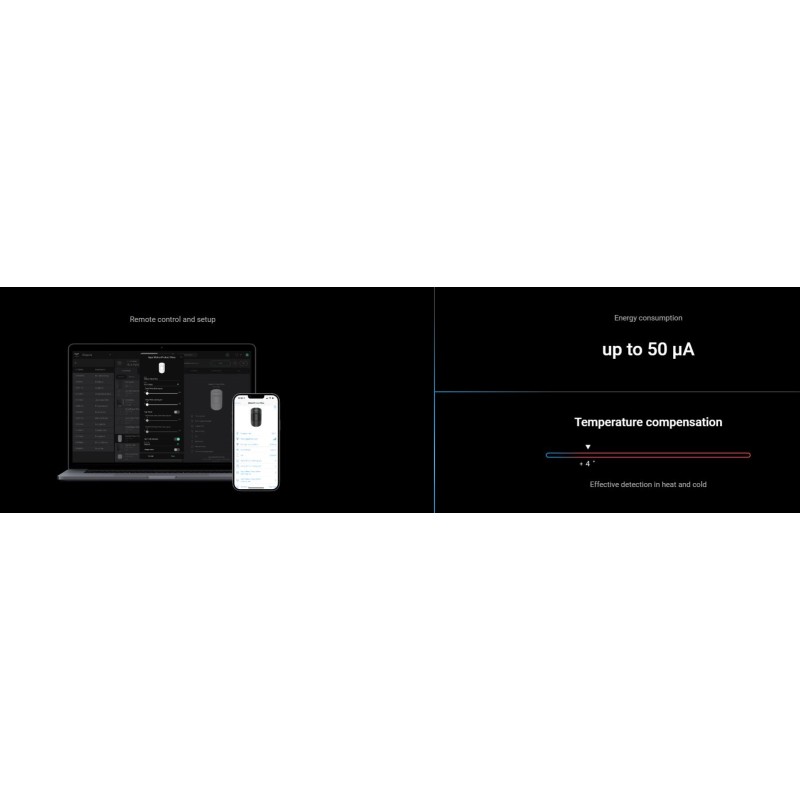

• Temperature compensation : Effective motion detection within −10°C to +40°C range
• Recommendations : It is recommended to install the detector on 2.4 meter height
• Device is designed for indoor use only

Anti-sabotage protection

• Tampering alarm : Alerts of attempts to detach the detector from the surface or remove the mounting panel
• Protection against forgery : Device authentication

Power supply

• Fibra line power supply : 24 V⎓, up to 46 mW / The detector is powered by the control panel

Enclosure

• Dimensions : 110 × 65 × 50 mm
• Weight : 92 g
• Operating temperature range : from −10°C to +40°C
• Operating humidity : up to 75%
• Protection class : IP50
