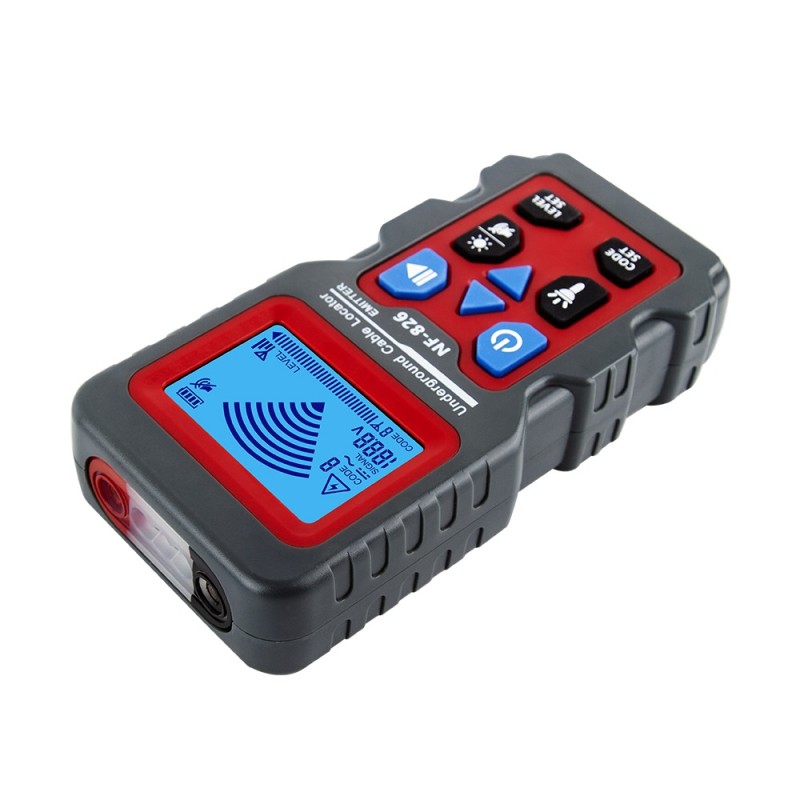

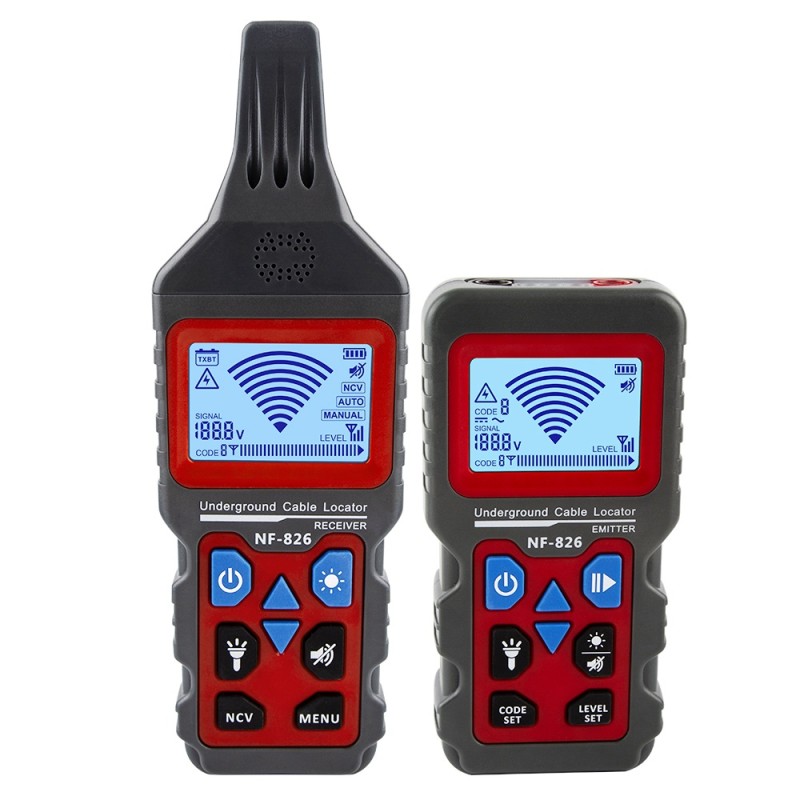

Noyafa Network Multi Tester & Tracking Device with Cable Tracing & Fault Detection NF-826

• Detecting and Locating breaks and short circuit in cables and electrical lines buried in wall or underground
• Detecting the laid metal tap water pipe and metal heating pipe
• Detecting interruptions and short-circuits in floor heating
• Detecting fuses and assigning current circuits,tracing sockets and junction boxes having accidentally been covered by plastering
• The transmitter is integrated with the function of AC/DC voltmeter, which can measure 12 to 400V AC/DC voltage on a linear basis

• The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference
• The sensitivity of the receiver can be adjusted either manually or automatically
• The receiver can sweep frequency automatically
• Both the transmitter and the receiver can work under mute mode
• Compactness-durability and portability
• Auto power off within 10 minutes
• Flashlight Function
• Backlight Function
• Mute Function

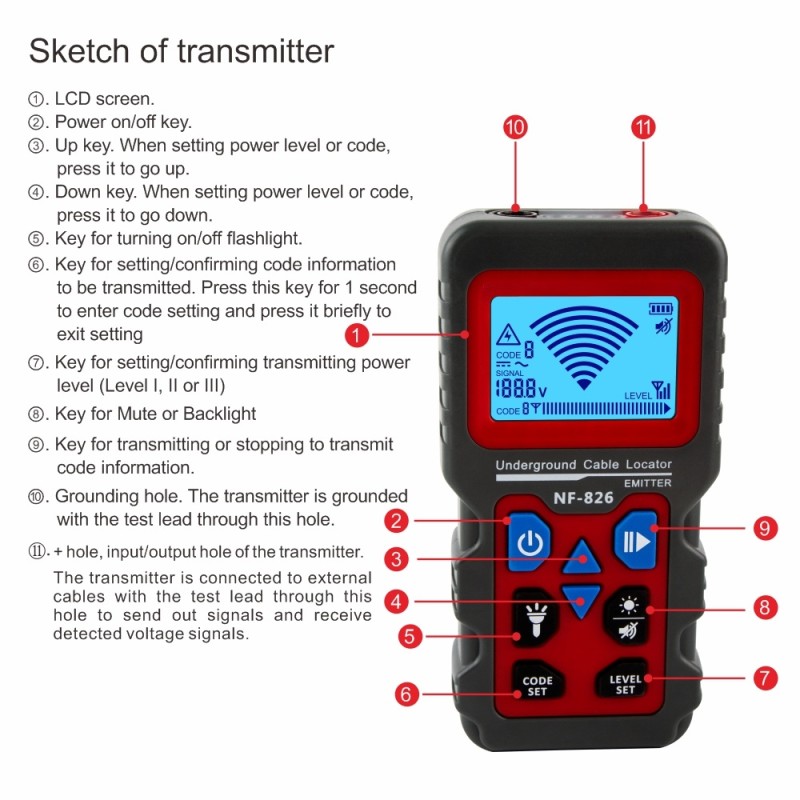

Transmitter:

• Output signal:125KHz
• Voltage measurement range: 12V-400V (AC / DC)
• Voltage's dielectric strength: Max. 400V AC/DC

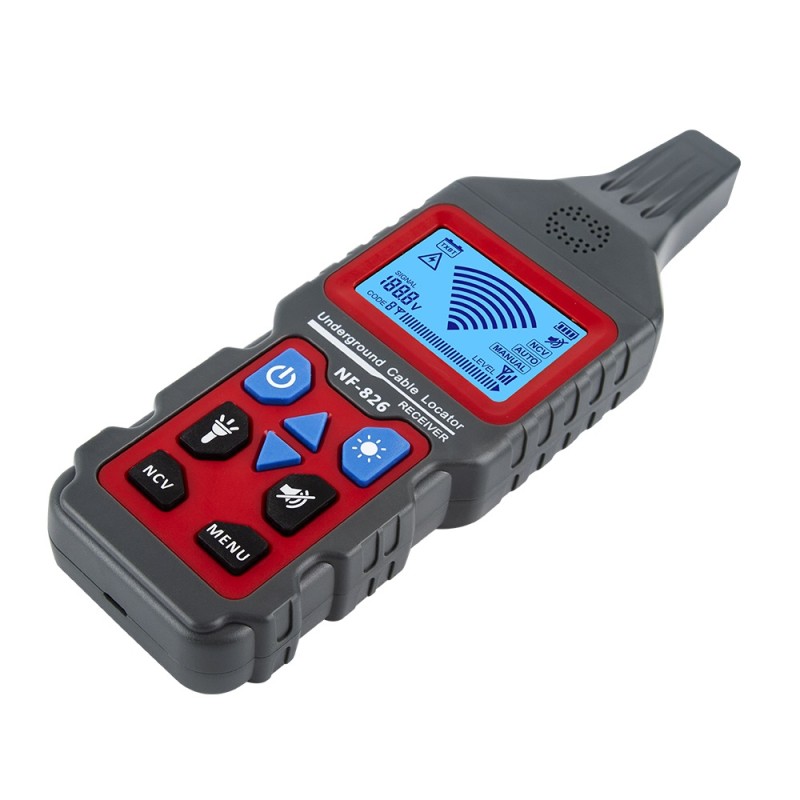

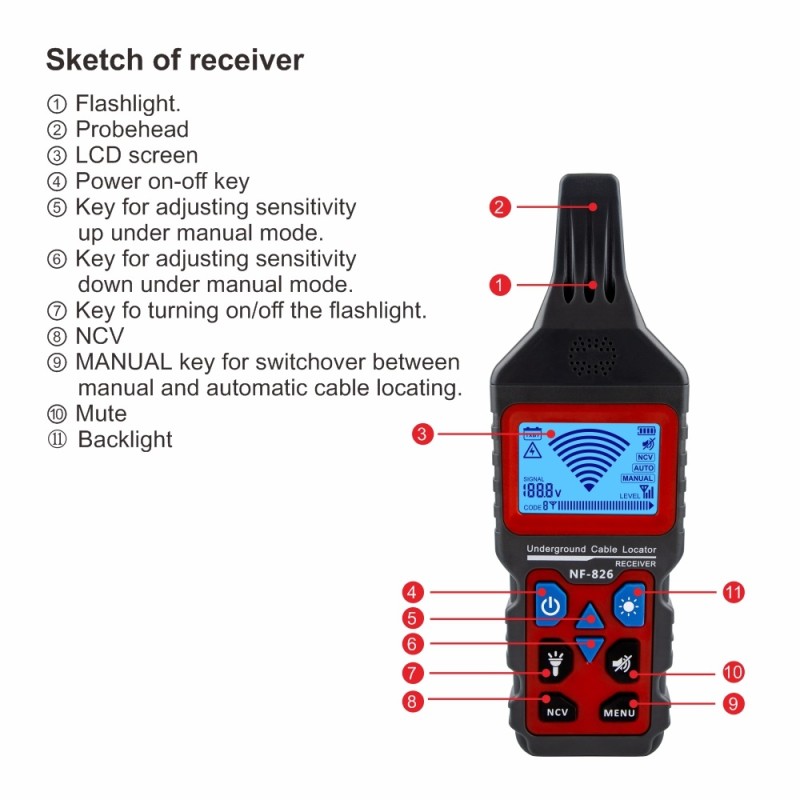

Receiver:

• Cable Depth Measurement : 0~2.5m, the depth of tracking depends on the material and specific applications.
• Grid voltage identification: about 0-0.4m

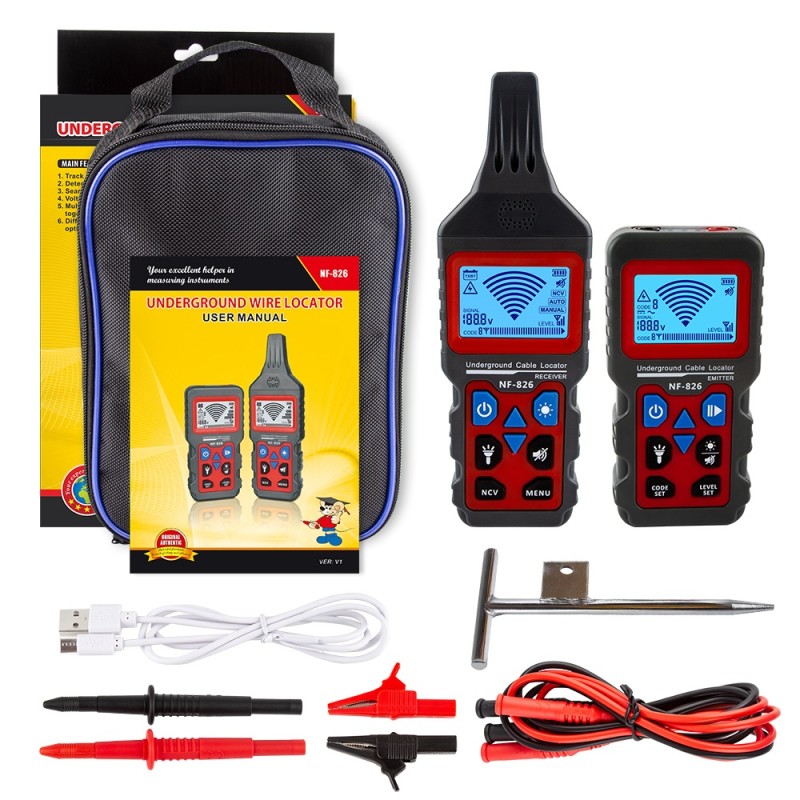

Whats in the box:

• 1*Transmitter
• 1*Receiver
• 1*user Manual
• 2*Alligator Clips (black, red)
• 2*Test Leads (black, red)
• 1*Grounding rod
