Lanberg Fiber Optic Pigtail - SM SC UPC Easystrip LSZH 2.0m
€4.00
Tax included

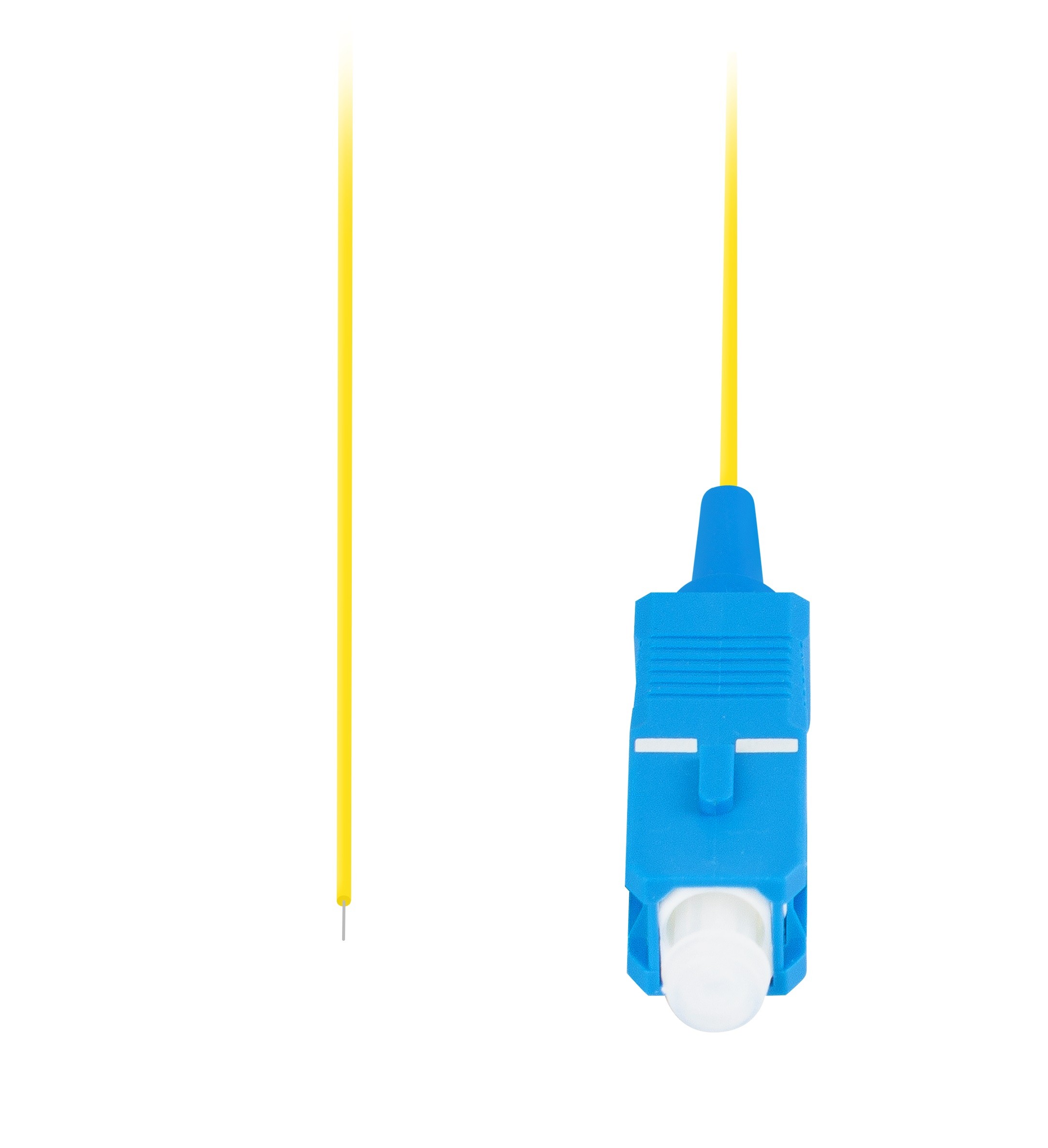

Fiber optic pigtail SM OS2 with SC/UPC connector, 2.0 m length, 0.9 mm diameter, LSZH coating, Easy Strip construction.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Fiber optic pigtail SM OS2 with SC/UPC connector, 2m in length and 0.9mm in diameter.
SingleMode (SingleMode) pigtail with a fiber diameter of 9/125, terminated with a connector with UPC (Ultra Physical Contact) polishing standard and made of LSZH (Low Smoke Zero Halogen) coating. The pigtail uses G657A1 fiber standard, Easy Strip pigtail construction design.
The pigtail is made in accordance with the current norms and standards.
- Connector type: SC
- Polishing standard: UPC - ULTRA PHYSICAL CONTACT
- Fiber type: G657A1
- Type of optical fiber: single-mode (SM)
- Fiber diameter: 9/125 µm
- Cable Construction: EASY STRIP
- Cable diameter: 0.9 mm
- Coating: LSZH
- Insertion loss: < 0,20 dB
- Return loss: > 60 dB
- Operating temperature: -40 – 85 °C
- Minimum bend radius: 10 mm
- Color: Yellow
- Cable length: 2m
