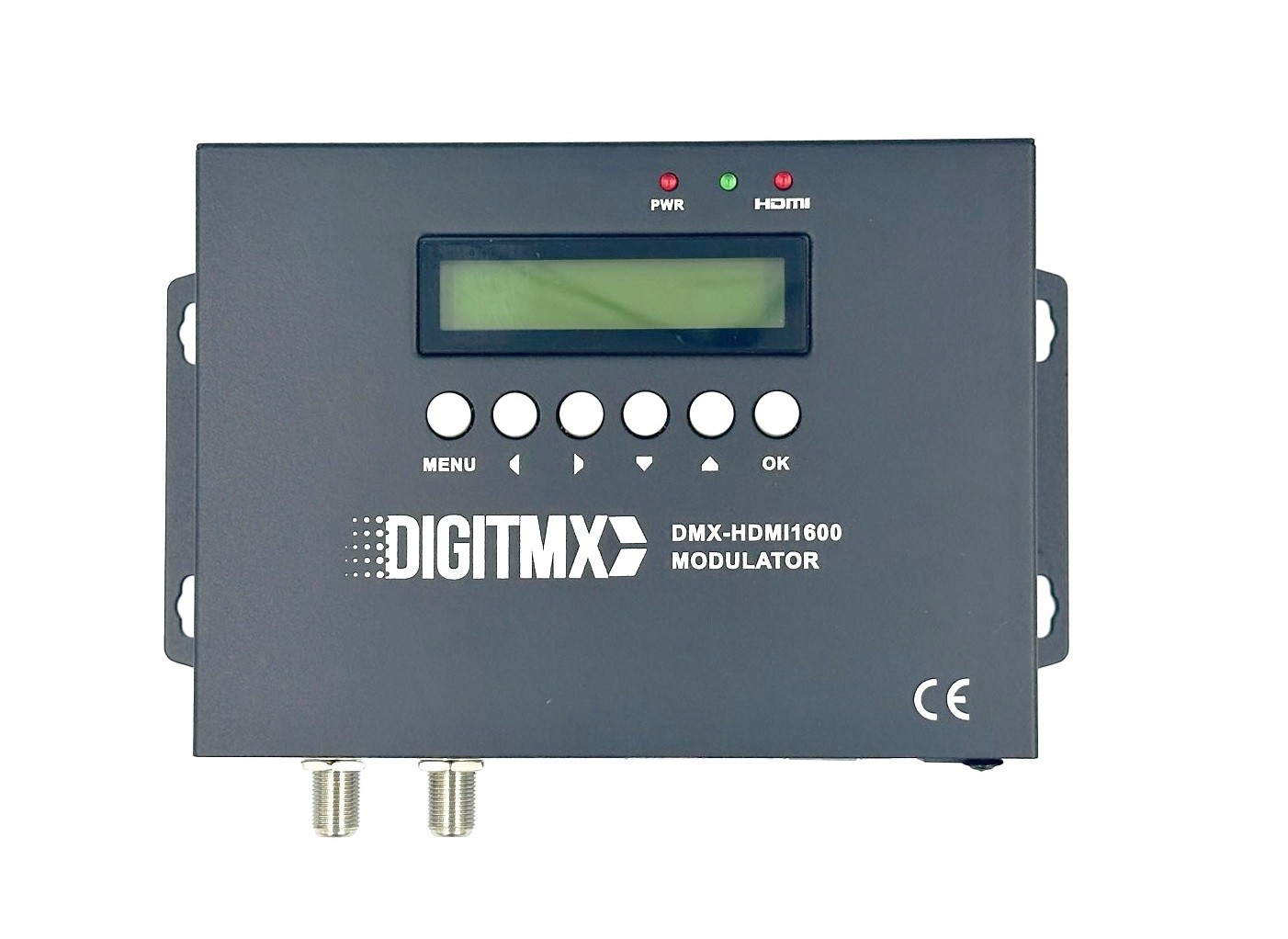

DigitMX Modulator - DMX-HDM1600 - DVB-T Full HD Modulator Loop Out
€147.00
Tax included
DVB-T modulator with loop-out; HDMI input; digital; 50-860 MHz RF; MER 35 dB; 64QAM; 6/7/8 MHz; 2K/8K; GI 1/32; CR 7/8.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Modulation: DVB-T
Constellation: 64QAM
Bandwidth: 6 / 7 / 8 MHz
Carriers: 2K and 8K
Guard Interval: 1/32
Code Rate: 7/8
MER: 35 dB
Frequency Range: 50 ~ 860 MHz
RF Level: 70 ~ 100 dBuV
Output Impedance: 75Ω
Compression: H.264 - bitrate 5-15 Mb/s
Video Resolutions supporter: 1920*1080_60P, 1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P
Connector: HDMI
Power Source: DC 12V / 1.5A
Dimensions 125mm(L) × 100mm(W) × 28mm(H)
| Type | Digital |
| Input Channels | Single |
| Loop Out | Yes |
| HDMI input | Yes |
| Display | Yes |
