MINI-ITX PSU - 120W REV. 2, Adapter
€23.50
Tax included
Compact Mini-ITX 120W adapter PSU with 1x 20-Pin ATX, 1x 4-Pin-12V, 1x 4-Pin-5.25", 1x 15-Pin-SATA; includes a cable with a socket and union nut; 35x47x18 mm; 50 g.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Length | less than or equal to140 mm |
|---|

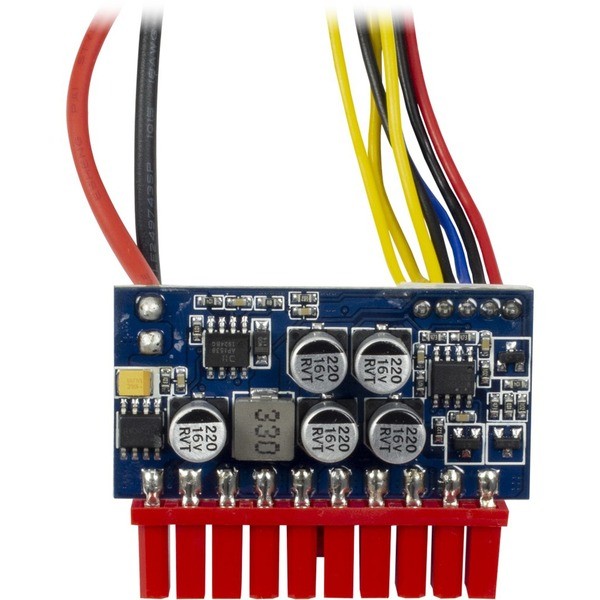

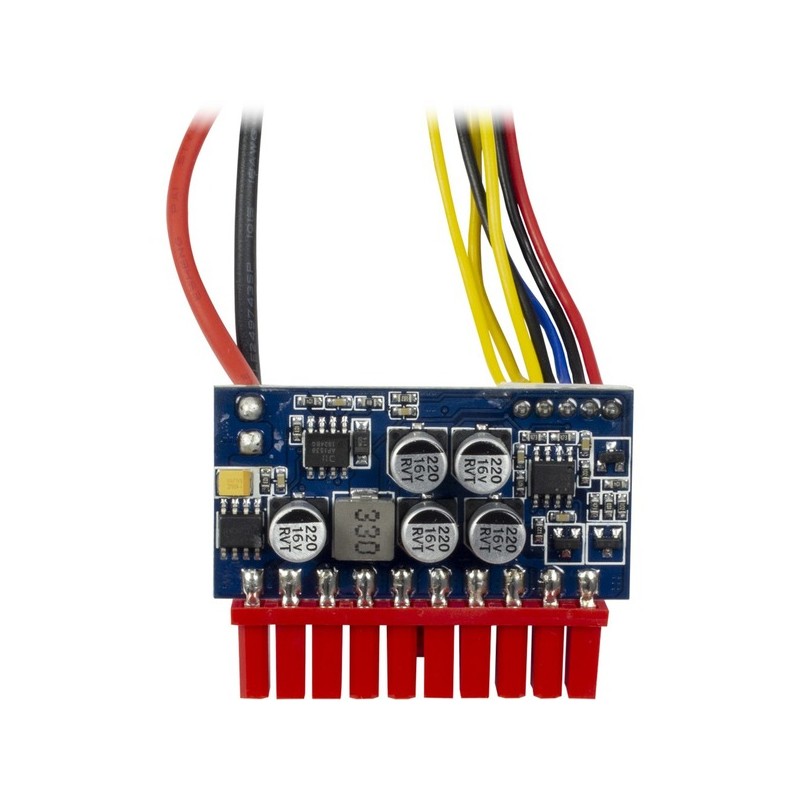

The compact design of this Mini-ITX PSU allows components to be supplied with power even in narrow housings. A cable with a socket and union nut is attached to a suitable hole on the housing wall and is used to connect an external 12V

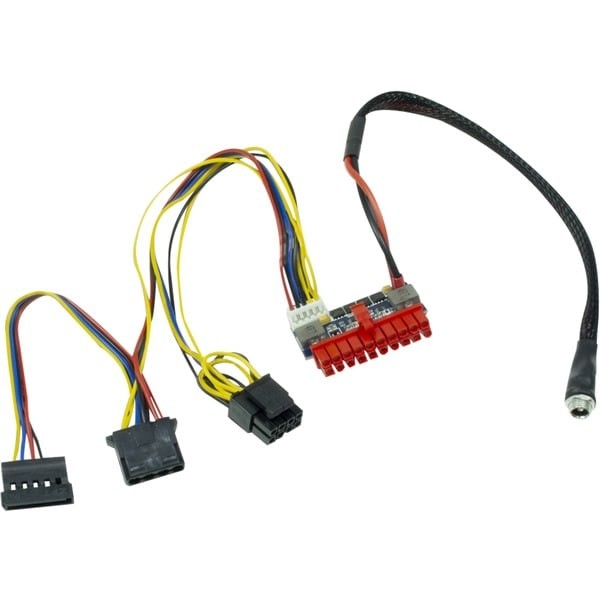

Power supply (not included), which can have a power of up to 120W. The board is equipped with the 20-pin main power cable as well as two strands with 1x 4-pin 5.25", 1x S-ATA connector and one strand with 1x 4+4 pin connector.
| Typ | Adapter |
| EAN | 4260455645515 |
| Manufacturer no. | 88882193 |
| Design | Mini ITX |
| Connections | 1x 20-Pin-ATX, 1x 4-Pin-12V, 1x 4-Pin-5,25", 1x 15-Pin-SATA |
| Protective functions | Overvoltage protection (OVP), undervoltage protection (UVP), overload protection (OLP/OPP) |
| Notice | Maximum values output voltage output current: +3.3V 5A, +5VSB 2A, +5V 5A,12V 5A, -12V 0.1A |
| Accessories - required | External 12 volt power supply up to 120 watts |
| Dimensions | Width: 35mm x Height: 47mm x Depth/Length: 18mm |
| Weight | 50 Gramm |
