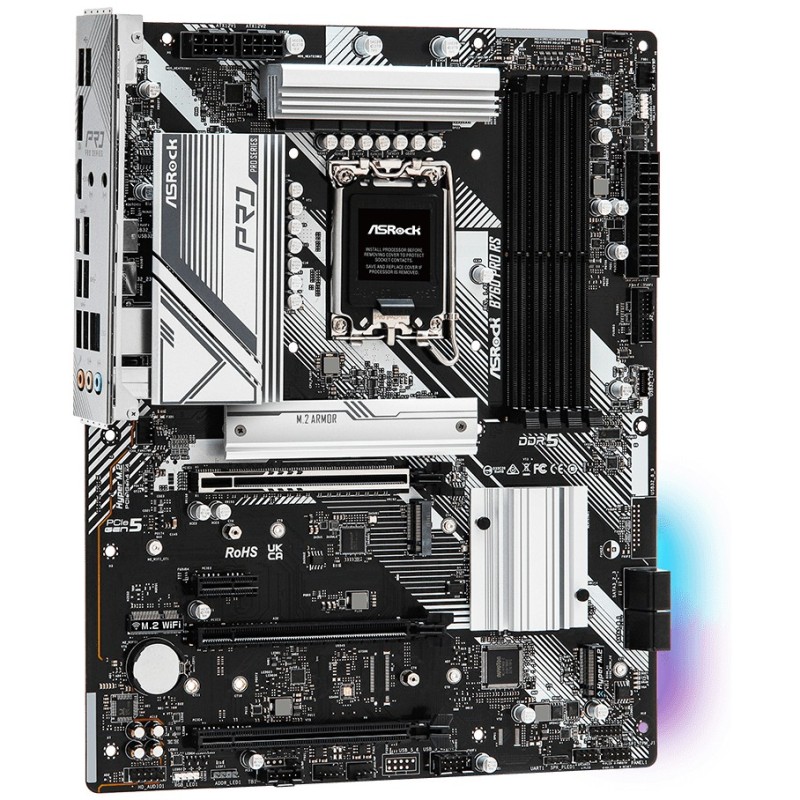

ASRock B760 Pro RS - LGA1700 ATX Motherboard, DDR5, 4x DIMM up to 128GB, PCIe 4.0, 2x USB-C
€136.50
Tax included
Intel B760 ATX motherboard for LGA1700 CPUs. DDR5 support up to 128GB (4 DIMMs), PCIe 4.0, 4x SATA III, 2.5Gb LAN, Intel Iris Xe iGPU, 2x USB-C (rear).
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version | PCIe 4.0 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
Asrock B760 PRO RS. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. PCI Express 4.0. SATA III. Supported storage drive types: SSD. RAID levels: 0. 1. 5. 10. Graphics card family: Intel. On-board graphics card model: Intel Iris Xe Graphics. Ethernet interface type: 2.5 Gigabit Ethernet. LAN controller: Realtek RTL8125-BG
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 3600.4000.4400.4800.5600.6000.7200 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2. PCI Express 4.0. SATA III |
| Number of HDDs supported | 1 |
| Feature | Rack-Friendly board |
| RAID levels | 0. 1. 5. 10 |
| Graphics card family | Intel |
| Number of displays supported | 1 |
| On-board graphics card model | Intel Iris Xe Graphics |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 305 mm |
| Depth | 244 mm |
| Sustainability certificates | ErP |
| Compliance certificates | CE. Federal Communications Commission (FCC) |
