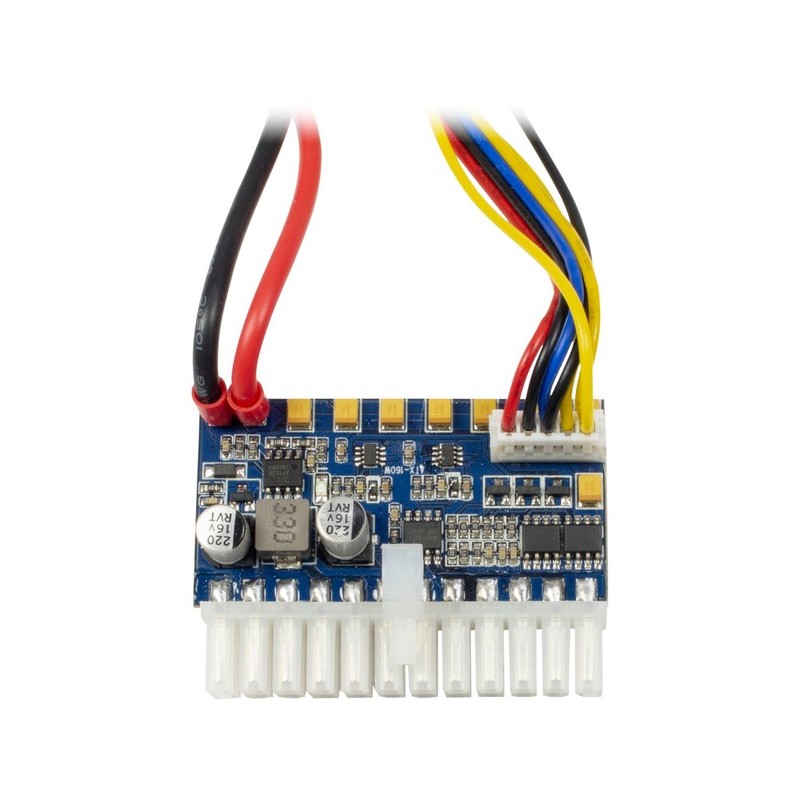

Mini-ITX PSU 160W DC DC, Adapter
€29.50
Tax included
The compact design of this Mini-ITX PSU allows components to be supplied with power even in narrow housings. A cable with a socket and union nut is attached to a suitable hole on t...
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The compact design of this Mini-ITX PSU allows components to be supplied with power even in narrow housings. A cable with a socket and union nut is attached to a suitable hole on the housing wall and is used to connect an external 12V
Power supply (not included), which can have a power of up to 160W. The board is equipped with the 24-pin main power cable as well as a strand with 1x 4-pin 5.25", 1x S-ATA connector and a strand with 1x 4+4 pin connector.
| Typ | Adapter |
| EAN | 4260455645454 |
| Manufacturer no. | 88882188 |
| Design | Mini ITX |
| Connections | 1x 24-Pin-ATX12V-2.x, 1x 4+4-Pin-12V, 1x 4-Pin-5,25", 1x 15-Pin-SATA |
| Protective functions | Overvoltage protection (OVP), undervoltage protection (UVP), overload protection (OLP/OPP) |
| Notice | Maximum values output voltage output current: +3.3V 6A, +5VSB 2A, +5V 6A,12V 8A, -12V 0.15A |
| Accessories - required | External 12 volt power supply up to 160 watts |
| Dimensions | Width: 40mm x Height: 53mm x Depth/Length: 18mm |
| Weight | 60 Gramm |
