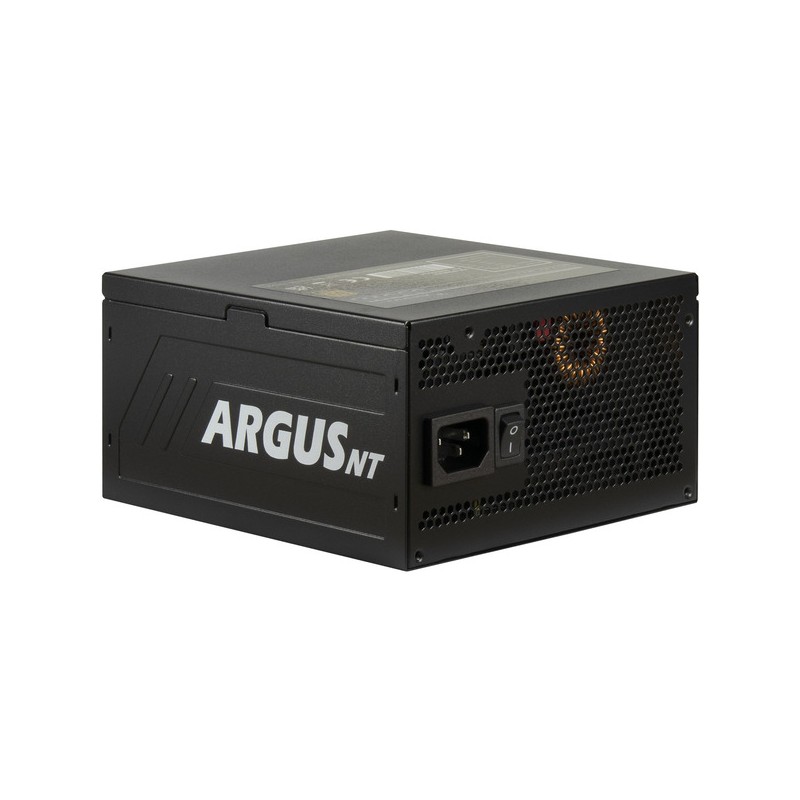

HA-1000BA4, PC power supply

The HA-1000BA4 offers reliable power for demanding systems. With an output of 1000 watts, ATX 3.1 compatibility and fully modular cable management, this power supply is aimed at PC enthusiasts, gamers and professional users who value efficiency, order and future security. Thanks to the 80 PLUS® Gold certification, the HA-1000BA4 works particularly efficiently, reduces energy losses and ensures less heat generation. Particularly noteworthy is the 12VHPWR connection with up to 600 watts of power - ideal for current high-end graphics cards. The HA-1000BA4 offers the necessary performance for demanding hardware without compromising stability or security.

Typ	PC power supply
Color	schwarz
EAN	4260455649018
Manufacturer no.	88882235
Performance - Overall	1000 W
Standard	ATX12V 3.1
PCIe	5.1
Design	ATX
Certification	80 PLUS gold
Current strengths - +3.3 V	20 A
Power factor correction	Active PFC
Switch	1x power switch

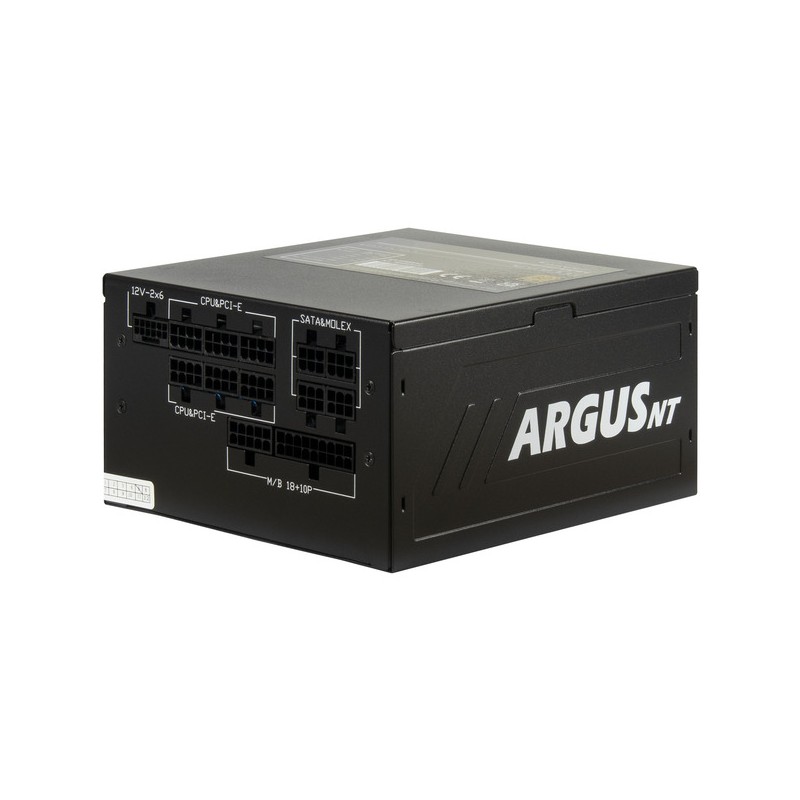

Connections	1x 24-Pin-ATX12V-2.x, 2x 4+4-Pin-12V, 1x 4-Pin-3,5", 3x 4-Pin-5,25", 3x 6+2-Pin-Grafik, 1x 12+4 Pin (12V-2x6), 8x 15-Pin-SATA
Cooling - number of fans	1x 120mm fan
Protective functions	Current Surge Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), No Load Operation (NLP/NLO)
Accessories - available	Power cable, connecting cables, screws, cable ties, instructions
Dimensions	Width: 150mm x Height: 86mm x Depth/Length: 165mm
Weight	1,6 kg
