DELL PowerEdge R630 8xSFF 2xE5-2697 v4 64GB 2xHDD 1.2TB SAS
€716.00
Tax included
- Form Factor: Rack 1U
- Processor: 2 x Intel Xeon 2xE5-2697 v4 / 2.8 - 3.6 GHz
- RAM: 128GB ECC
- HDD: 2 x 1.2 GB SAS
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Specification
| Form Factor |
1U rack |
| Processor |
2 x Intel Xeon Hexa Core E5-2680 v2, 2.8 GHz up to 3.60 GHz 10 Core 20 Threads |
| Socket |
2 |
| PCIe slots |
|
| Memory |
64 GB DDR3 ECC, REG Up to 384GB (24 DIMM Slots) |
| HDD | 2 x 1.2 TB SAS 3.5" |
| Drive Bays |
Up to eight 3.5” drives or up to sixteen 2.5” drives |
| Hot Plug drive options |
2.5” SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) 3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K) Self-encrypting drives available |
| Raid Controller |
PERC H310, PERC H710, PERC, H710P |
| Embedded NIC |
Broadcom® 5720 Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel I350 Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel X540 Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports Broadcom® 57800S Dual Port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57800S Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports |
| Remote Management |
iDRAC7 with Lifecycle Controller iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option) 8GB or 16GB vFlash media (upgrade options) |
| System Managment |
IPMI 2.0 compliant Dell OpenManage™ Essentials and Dell Management Console Dell OpenManage Power Center Dell OpenManage Connections:
|

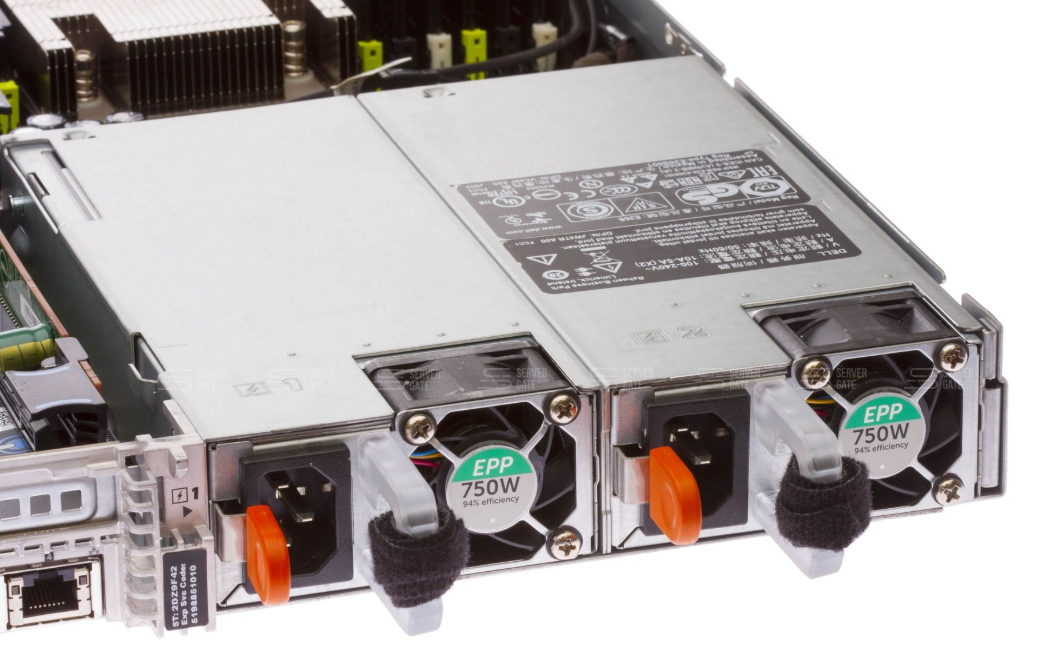

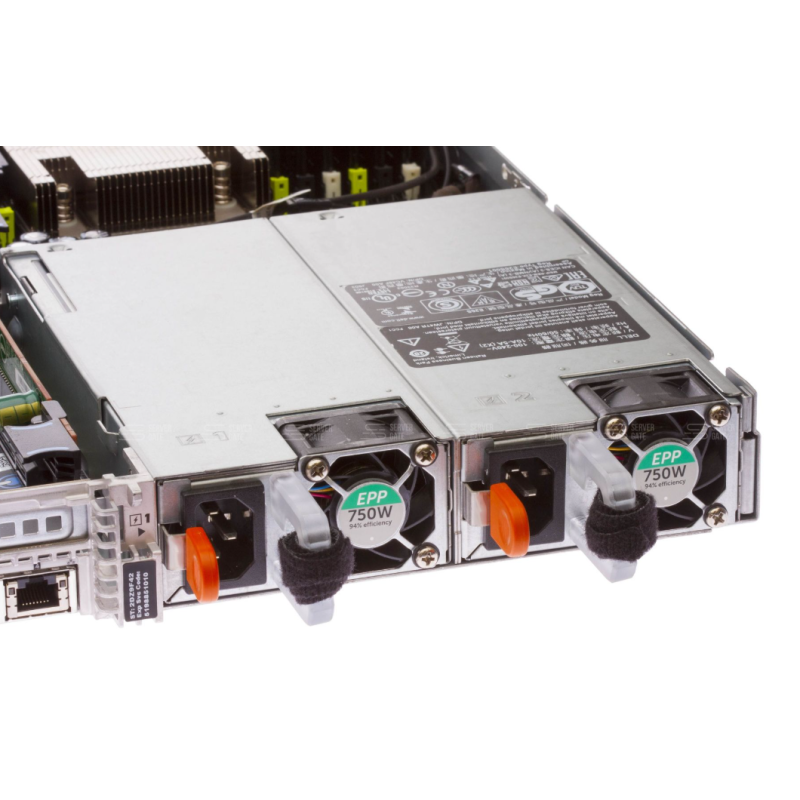

| Power Supply |
Auto-ranging Titanium efficiency, hot-plug redundant 750W AC power supply; Auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply |
| Rack Support |
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks |
