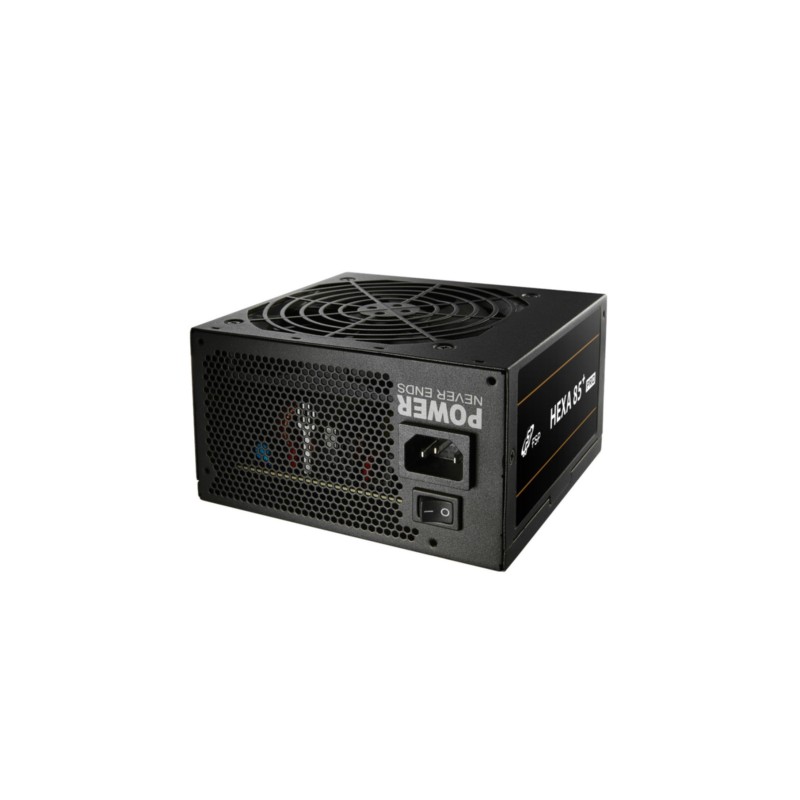

Fortron HEXA 85+ PRO 550W - Non-Modular ATX, 80 PLUS Bronze, All-Black Cables
€84.50
Tax included
550W non-modular ATX PSU, 80 PLUS Bronze, DC-to-DC +12V single-rail, full Japanese capacitors, quiet 120mm fan, OCP/OVP/SCP/OPP protections, IEC 62368 certified.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - Fan Size | 120 mm |
HEXA 85+ PRO series is ATX PSU certified with 80 PLUS® Bronze, featured with DC to DC module and +12V single-rail design, taken with full Japanese capacitors and quiet 120mm silent fan, built-in with complete protections: OCP, OVP, SCP, OPP, and approved by the latest global safety regulation 62368 . Besides, the all black-cable design saves your system an optimal airflow space that allows for easy cable management and a polished look. HEXA 85+ PRO series power ranges from 350W, 450W, 550W to 650W to satisfy various needs.
80 Plus® Bronze Certification
HEXA 85+ Pro Series, 80 PLUS ® bronze certified, saves energy through its high efficiency up to 85%.
All Black Round Cables
It gives your system a superior look than any other entry level power supplies.
Stable DC to DC Output Quality
HEXA85+ PRO series applies DC to DC modules to improve the reliability for greater compatibility as well as low ripple noise to reduce interference of system components for a prolonged system lifetime.
+12V Single Rail Design
Designed for power-intensive VGA cards, no problems to any overloading condition.
Optimal Cooling
HEXA 85+ PRO series comes with a 120mm quiet fan and a highly efficient ventilation fan guard to guarantee low noise operations without compromising its cooling efficiency.
Japanese Electrolytic Capacitors
Japanese electrolytic capacitors ensures safety on spare parts for prolonged lifespan and reliability.
Supports High-end Motherboard
For gaming enthusiast, the Hexa 85+ PRO 550W featured dual CPU power connectors for high-end motherboards and stable CPU power delivery.
Energy Related ErP/Eup 2013
Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 7.5 - 3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.5 |
| EPS version | 2.92 |
| Bearing technology | Sleeve |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.33 kg |
| Harmonized System (HS) code | 84733020 |
