PHC0300 SOLAR CONNECTOR SET, MC4 M F FOR 2.5 4 6 mm2 CABLES, LOGILINK
€5.50
Tax included
PHC0300 SOLAR CONNECTOR SET, MC4 M/F FOR 2.5/4/6 mm² CABLES, LOGILINK
Connector 1: MC4 (Male)
Connector 2: MC4 (Female)
Set of 2 pcs / TUV Certified
Conform with IEC 62852:2015

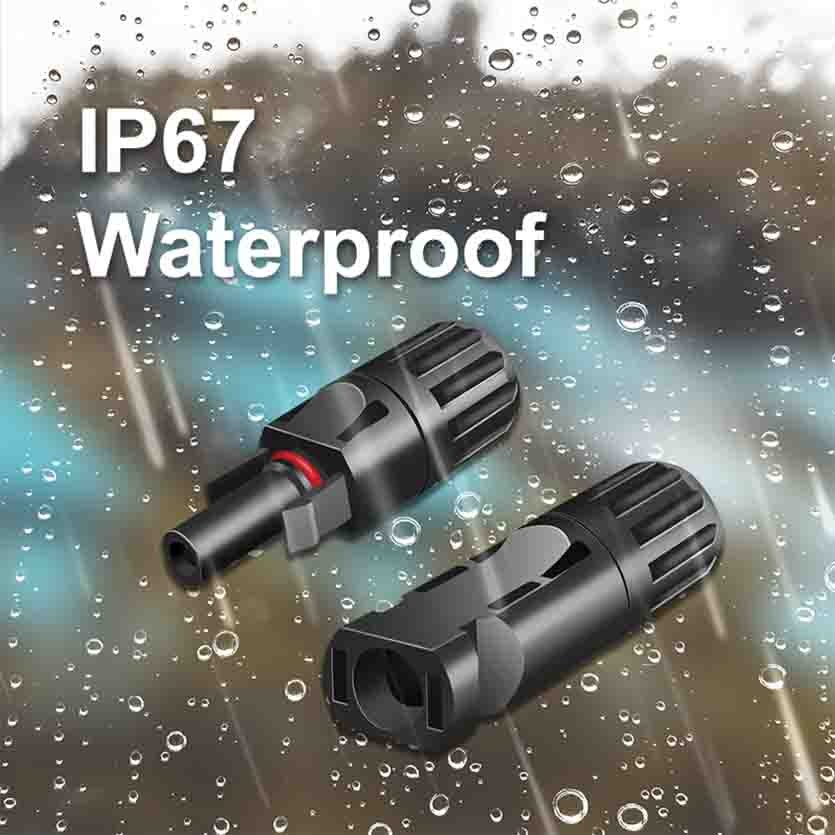

Protection class: IP67 ...
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PHC0300 SOLAR CONNECTOR SET, MC4 M/F FOR 2.5/4/6 mm² CABLES, LOGILINK
Connector 1: MC4 (Male)
Connector 2: MC4 (Female)
Set of 2 pcs / TUV Certified
Conform with IEC 62852:2015
Protection class: IP67 / Flame class: UL94V-0
Rated Voltage: 1000V
Rated Current: 30A (DC)
Temperature range of work environment: -40 oC to 85 oC
Suitable for cables with a wire cross – section of 2.5 to 6mm2
Conform to safety class II
Plastic housing
Color: Black
Packaging: PE Bag
Weight: 0.019kg
