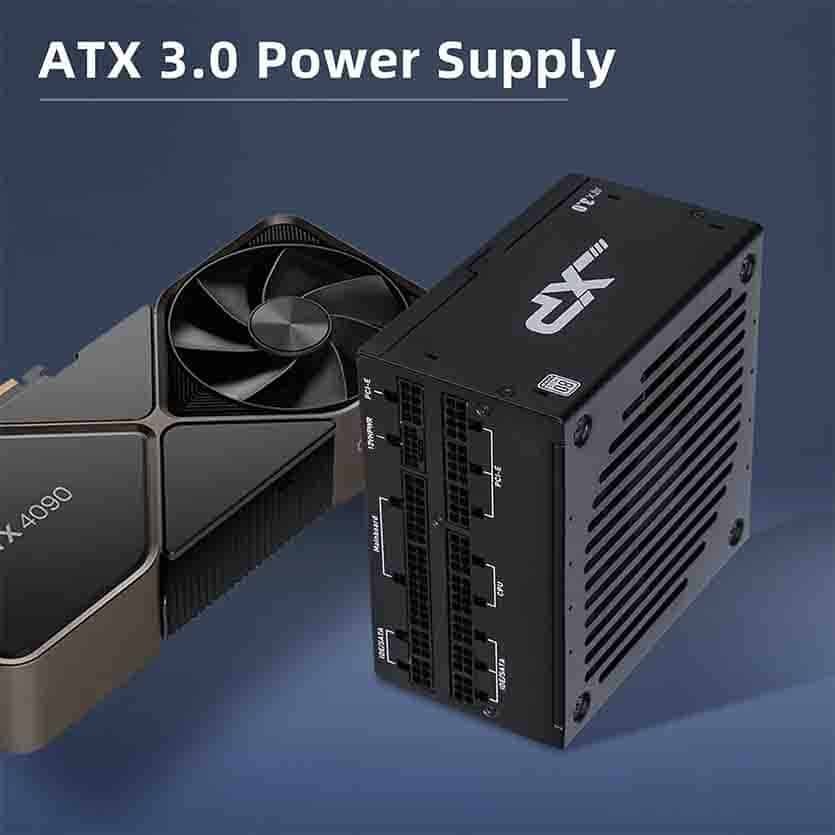

XPH‐1200W ATX 3.0 PLATINUM POWER SUPPLY SAMA
€187.50
Tax included
XPH‑1200W ATX 3.0 PLATINUM POWER SUPPLY SAMA
Wattage: 1200 W
Standard: Intel ATX 3.0
Certification: 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS
Input Voltage: 100–240 VAC
Input Frequency: 50...
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
XPH‑1200W ATX 3.0 PLATINUM POWER SUPPLY SAMA
Wattage: 1200 W
Standard: Intel ATX 3.0
Certification: 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS
Input Voltage: 100–240 VAC
Input Frequency: 50–60 Hz
Active PFC: Yes (auto full‑range voltage detection)
+3.3 V Rail Max Current: 20 A
+5 V Rail Max Current: 20 A
Combined +3.3 V +5 V Output: 100 W
+12 V Rail Max Current: 100 A (1200 W)
–12 V Rail: 0.4 A (4.8 W)
+5 VSB: 2.5 A (15 W)
PCIe 5.0 12VHPWR Connector: supported
Fan: 140 mm ECO intelligent fluid‑dynamic‑bearing (FDB) fan
Efficiency: ~90% @20%, ~92% @50%, ~89% @100% load
Capacitors: 100% Japanese 105 °C capacitors
Protections: OVP, OCP, OPP, SCP, UVP, OTP, No‑load, Surge & Inrush
Modular: Fully modular ribbon cables
