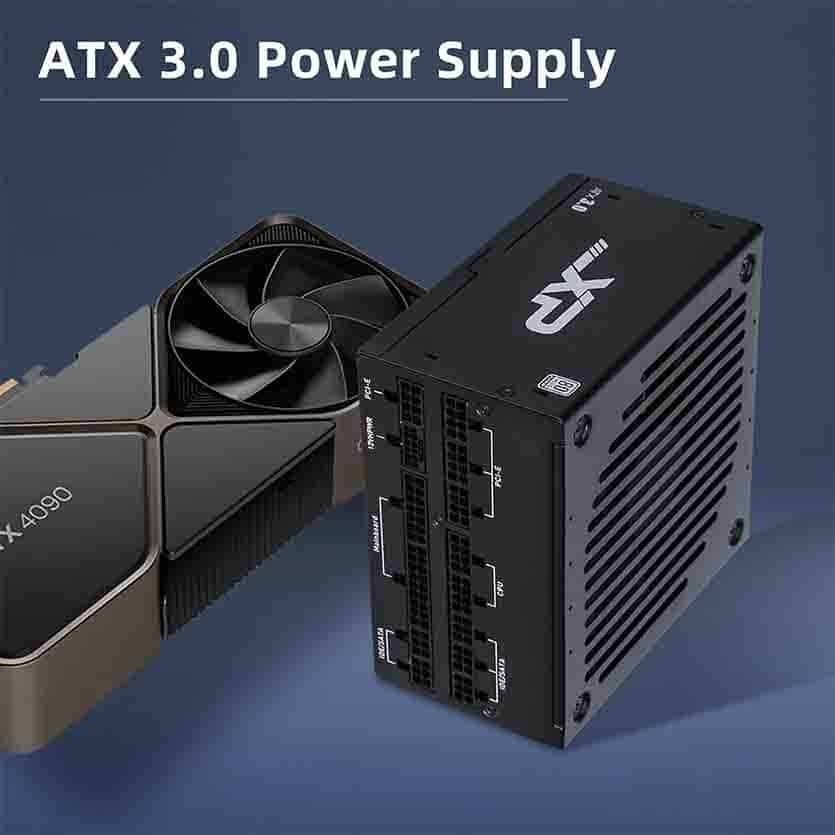

XPH‐1000W ATX 3.0 PLATINUM POWER SUPPLY SAMA
€160.00
Tax included
XPH‑1000W ATX 3.0 PLATINUM POWER SUPPLY SAMA
Wattage: 1000 W
Standard: Intel ATX 3.0
Certification: 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS
Input Voltage: 100–240 VAC
Input Frequency: 50–60 H...
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
XPH‑1000W ATX 3.0 PLATINUM POWER SUPPLY SAMA
Wattage: 1000 W
Standard: Intel ATX 3.0
Certification: 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS
Input Voltage: 100–240 VAC
Input Frequency: 50–60 Hz
Input Current: up to 15 A
Active PFC: Yes
+3.3 V Rail Max Current: 20 A
+5 V Rail Max Current: 20 A
Combined +3.3 V & +5 V Output: 100 W
+12 V Rail Max Current: 80 A (999.6 W)
–12 V Rail: 0.4 A (4.8 W)
+5 VSB: 2.5 A (15 W)
PCIe 5.0 12VHPWR Connector: 1 × 600 W
Fan: 140 mm ECO Intelligent FDB fan, temperature‑controlled
Efficiency: ~90% @20%, ~92% @50%, ~89% @100% load
Capacitors: 100% Japanese 105 °C capacitors
Protections: OVP, OCP, OPP, SCP, UVP, OTP, No‑load, Surge & Inrush
Modular: Fully modular ribbon cables
