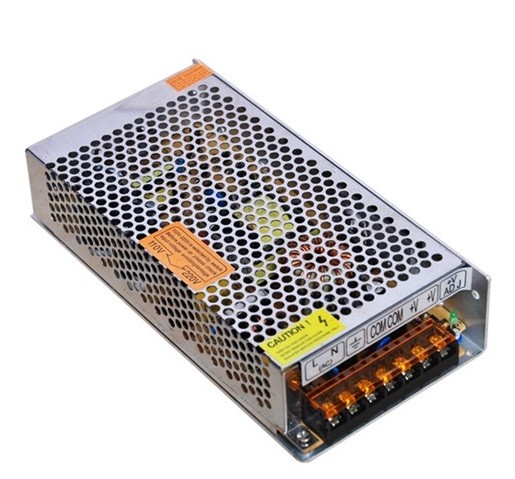

DigitMX Enclosed Power Supply - DMX-BPSU1210B - Enclosed Power Supply 12V 10A
€22.50
Tax included
Input: 110/220VAC 50-60Hz (switch selectable); Output: 12V 10A (120W); Enclosed power supply.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | CCTV PSU Box (Multi-channel) |
|---|---|
| Power Supplies - Output Current | 10 A |
- Input:110/220VAC 50-60Hz
- Output:12V10A 120W
- AC input selectable by switch
- AC input voltage range: 110/220V AC, 50-60Hz
- AC inrush current: 30-75A
- Output voltage: 12V
- Output current: 10A
- Leakage current: <0.7Ma/230V AC
- DC adjustment range: ±10%
- Over load protection: 105-135% rated output power
- Over-voltage protection: 105-135% hiccup mode, auto-recovery
- Withstand voltage:
- I/P-O/P: 3kV AC
- I/P-FG: 1.5kV AC
- O/P-F/G: 0.5kV AC
- Working temperature: -20 to +70°C
- Certifications: CE, RoHS Directive-compliant, FCC
- Output type: DC
| Type | Bare |
| Voltage | 12V |
| Ampers | 10A |
| Current | 10A |
