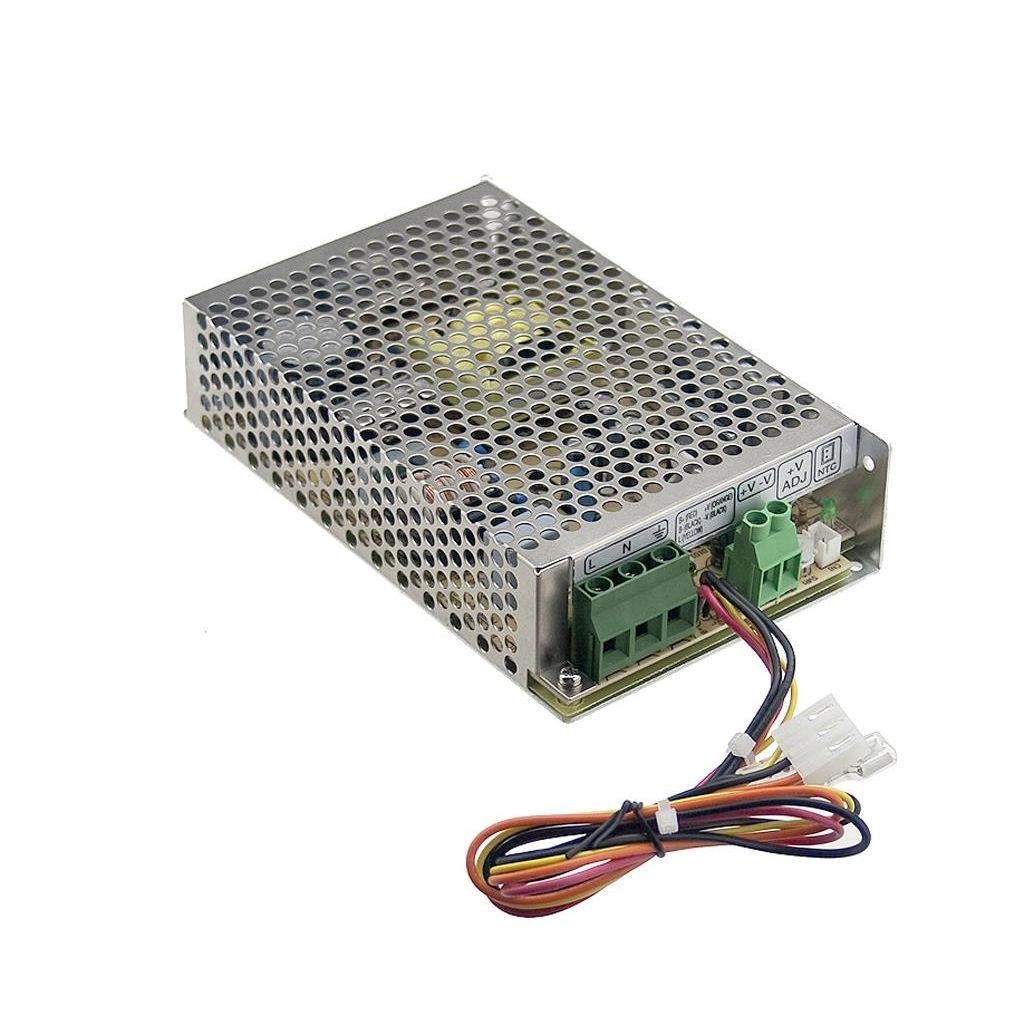

Meanwell Enclosed Power Supply with UPS 12V 75W (6.5A) - SCP-75 - Enclosed Power Supply with UPS 12V 75W (6.5A)
€37.00
Tax included
UPS-enabled 12V 75W enclosed power supply with universal input, protections, free-air cooling, and power-on LED indicator.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Power Supplies - Type | 12V DC Adaptor |
|---|
- Universal AC input/Full range
- Short circuit, over load, over voltage, battery polarity (by fuse) protections
- Cooling by free air convection
- LED indicator for power on
- No load power consumption <0.75W
- 100% full load burn-in test
- UL / CUL / CB / CE Approval
- With UPS function (need external batteries) for AD/ADD series
- Suitable for security industry or battery backup systems
- Description : AC-DC Enclosed power supply; Output 13.8Vdc at 5.4A; battery charger output; battery temperature compensation
- Application : ITE EN/UL/IEC 60950
- Technology : AC/DC
- Power Format : Box Type - Enclosed
- Output Power : 75W
- Output Voltage : 13.8V
- Output Current : 5.6A
- Input Voltage : 85 - 264V / Universal Input 110/230V
- IP Rating : No IP assigned
- Width : 97mm
- Height : 38mm
- Depth :159mm
- Dimming Technology : No Dimming
| Type | Bare |
| Voltage | 12V |
| Ampers | 5.6A |
| Current | 5.6A |
