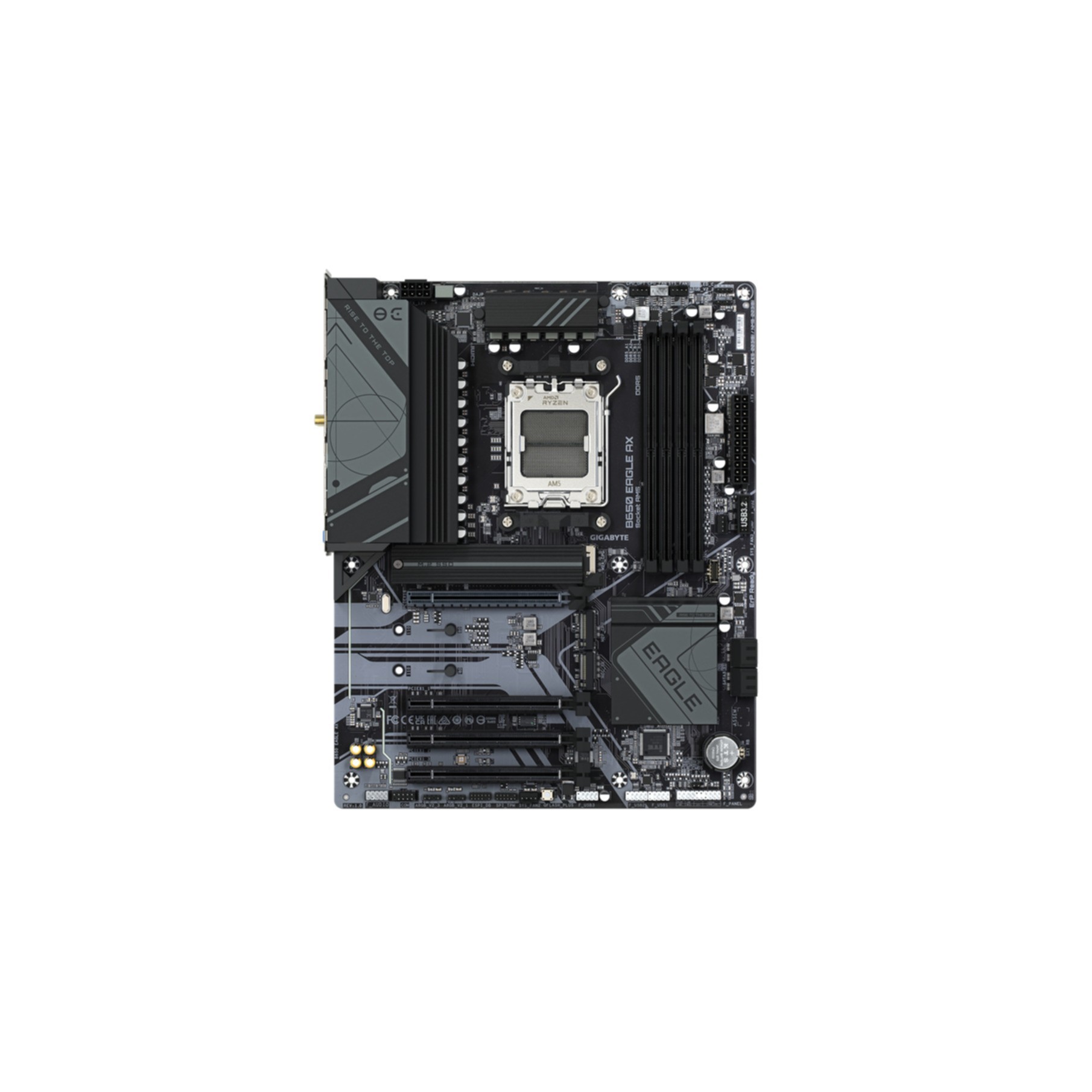

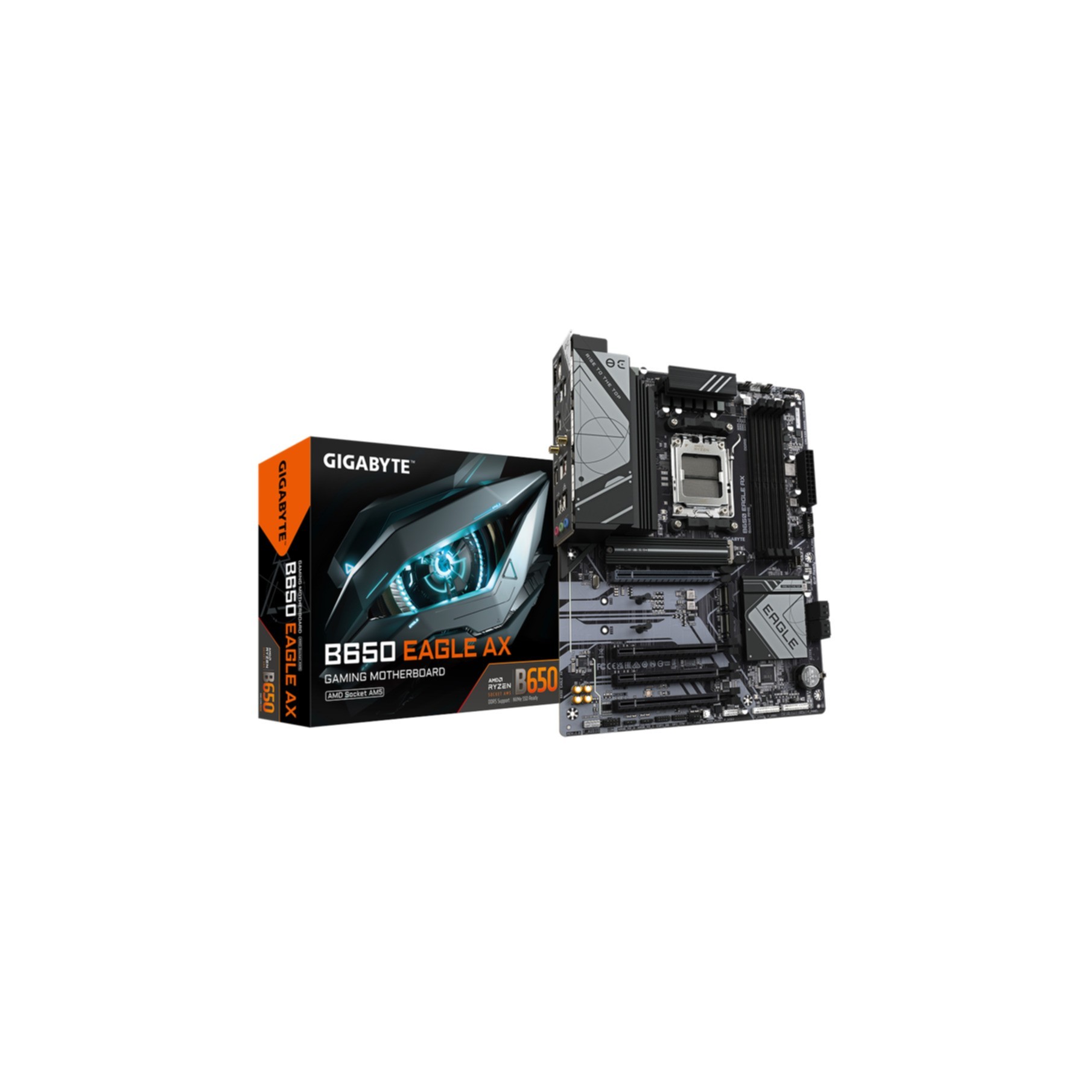

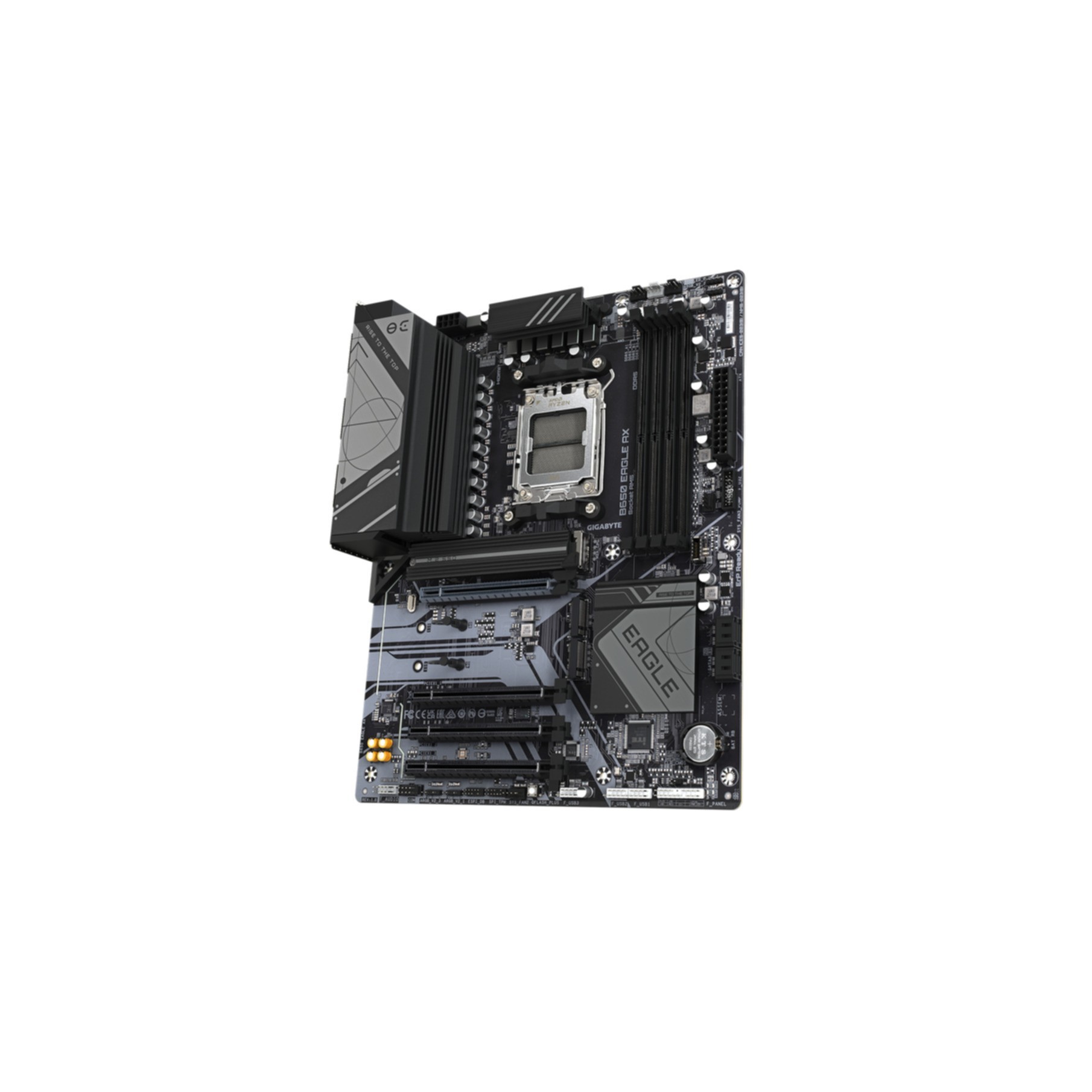

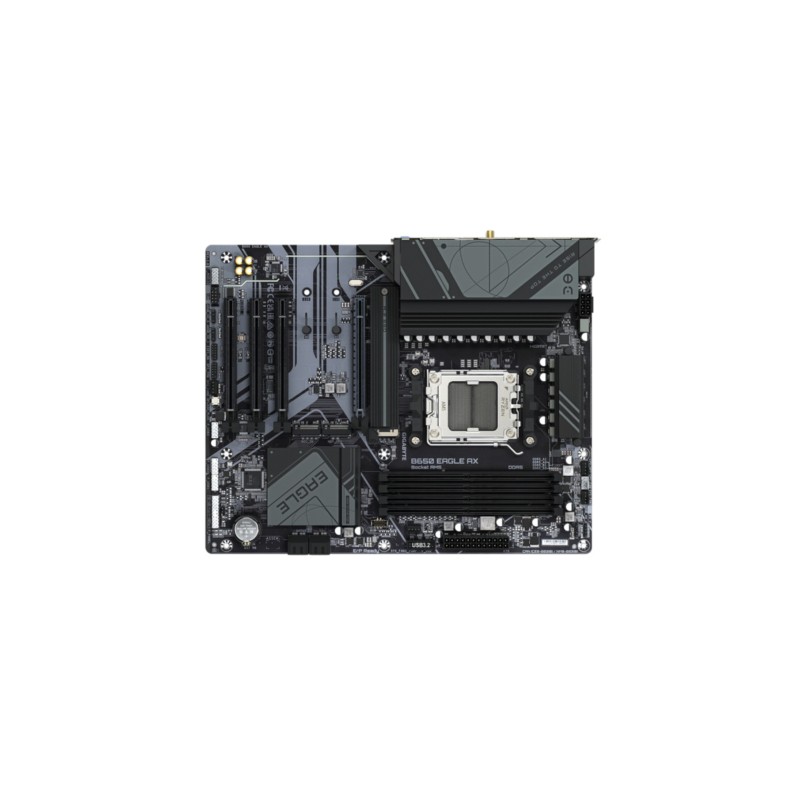

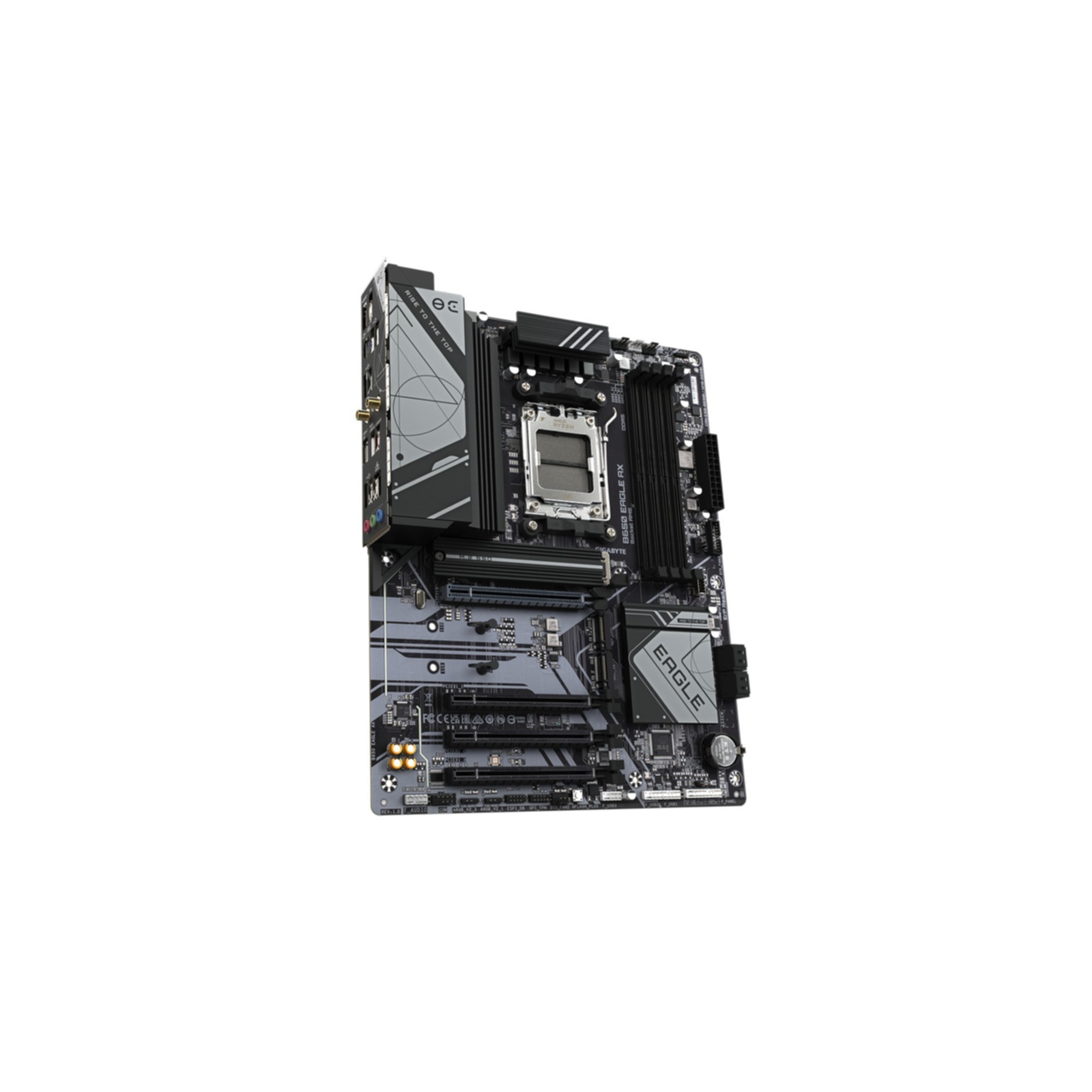

Gigabyte GA-B650 EAGLE AX - AM5 ATX Motherboard, DDR5, 4x DIMM (256GB), Wi-Fi 6E, 3x M.2, 4x SATA, Bluetooth 5.3
€162.50
Tax included
AM5 ATX motherboard for Ryzen 7000/8000/9000 series. DDR5 up to 7600MHz, 4 DIMMs (256GB), 3x M.2 (1x PCIe5), Wi‑Fi 6E, Bluetooth 5.3, Realtek 7.1 audio, 4x SATA.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs. 12+2+2 Phases VRM. up to 7600MHz DDR5 (OC). 1xPCIe 5.0 + 2xPCIe 4.0 M.2. GbE LAN. WIFI 6E. USB 3.2 Gen 2. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet. LAN controller: Realtek RTL8111H. Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7600.7200.7000.6800.6600.6400.6200.6000.5600.5200.4800.4400 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 256 GB |
| Feature | Screws included |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0. 1. 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 3 |
| Serial port headers | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Bluetooth version | 5.3 |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan. Temperature. Voltage. Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.94 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Warranty period | 3 year(s) |
