PRO B860M-C-CSM, Mainboard
€198.00
Tax included
The ASUS PRO B860M-C-CSM is based on the Intel® B860 chipset and supports Intel® processors for Socket 1851. It has four DDR5 slots for up to 256 GB of memory. The ASUS PRO B860M-C...
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

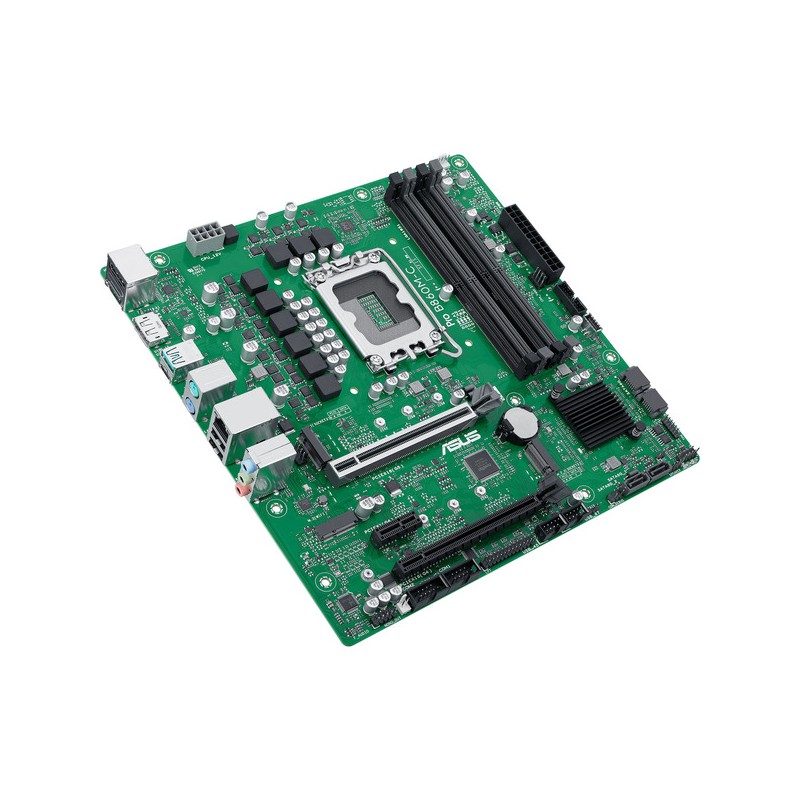

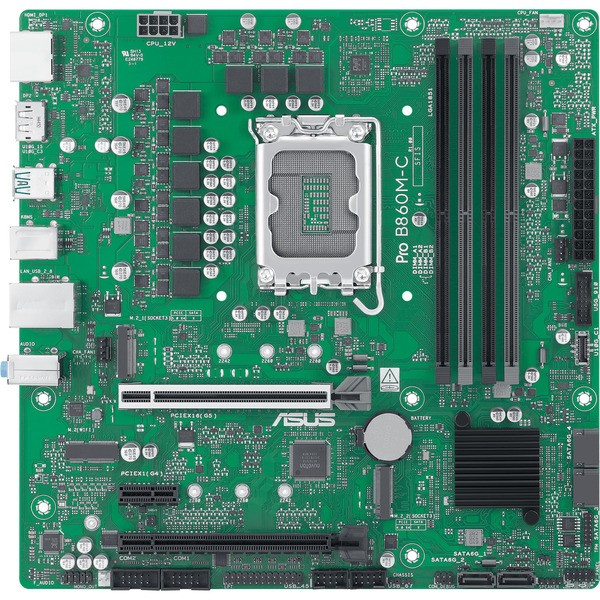

The ASUS PRO B860M-C-CSM is based on the Intel® B860 chipset and supports Intel® processors for Socket 1851. It has four DDR5 slots for up to 256 GB of memory. The ASUS PRO B860M-C-CSM's additional features include a PCIe 4.0 x16 slot, a PCIe 4.0 x16 slot (4 lanes) and a PCIe 4.0 x1 slot. The ASUS PRO B860M-C-CSM also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 4711636114684 |
| Manufacturer no. | 90MB1MCP-M0EAYC |
| base | 1851 |
| Max. supported CPUs | 1 |
| Processor - Supported Models | Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake) |
| Chipset | Intel® B860 |
| Slots - PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x4) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 8-Pin) |
| Memory - maximum | 256 GB |
| Connections (external) - Keyboard (PS/2) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | Intel® B860 |
| directly usable RAID levels | 0, 1, 10, 5 |
| USB-Controller | Intel® B860 |
| Sound | Realtek 7.1 Surround Sound |
| LAN | Intel® 1Gb Ethernet |
| Features | 1 x SMBUS header |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Notice | M.2 WiFi slot only: 2230 (Key E, CNVi & PCIe) |
| Warnings and safety information | Warnings: Attention: Product contains a button cell or coin battery. |
