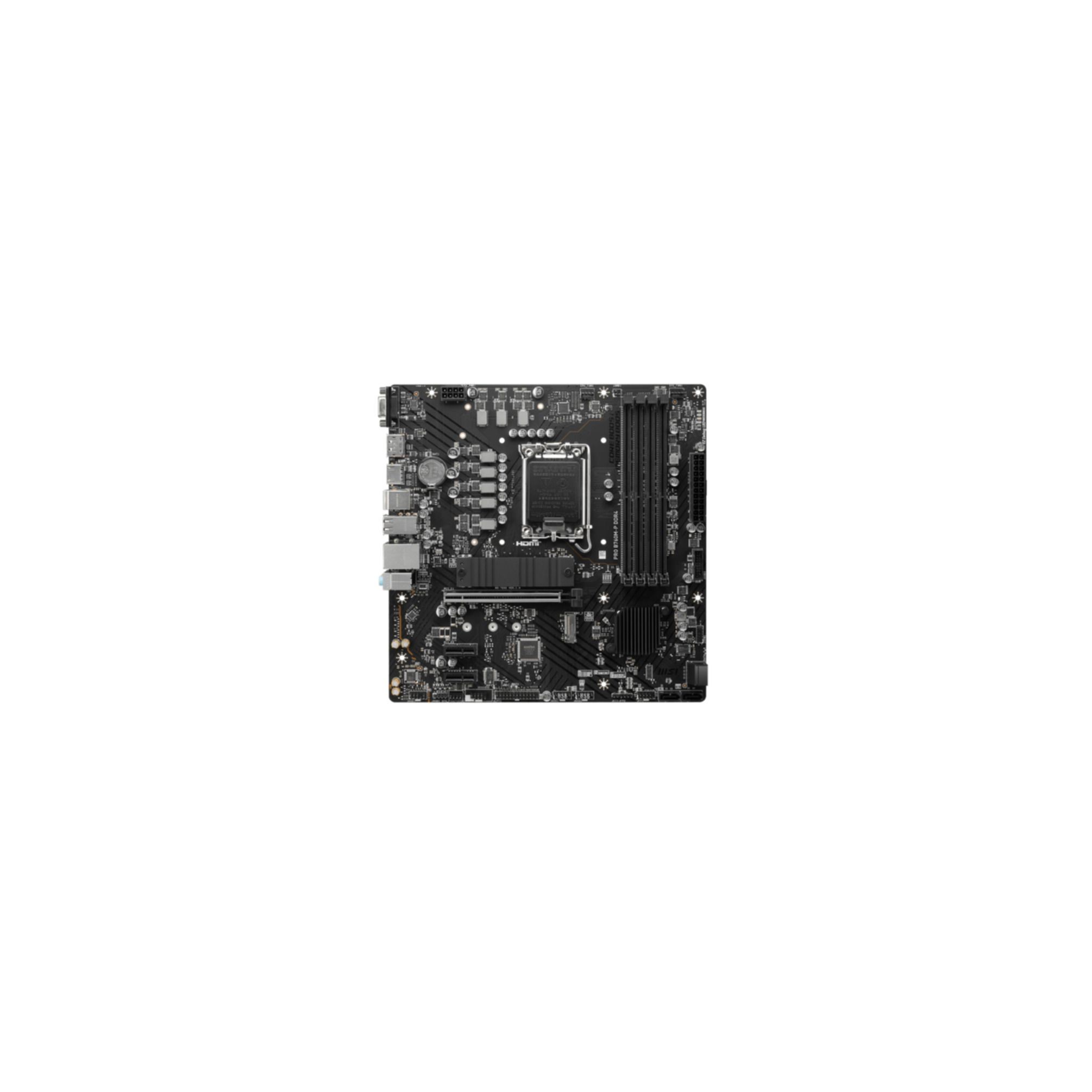

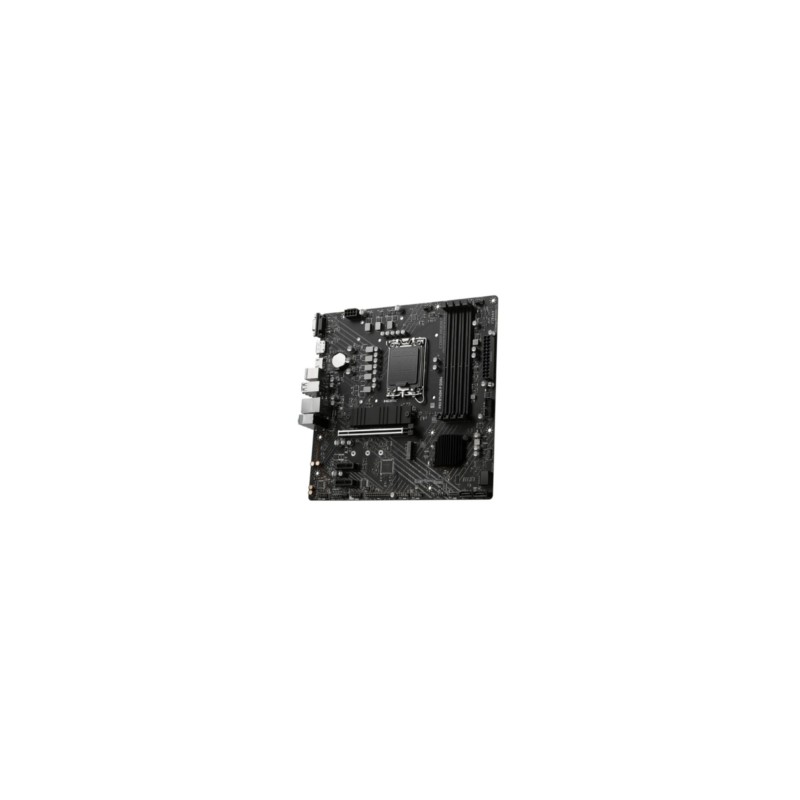

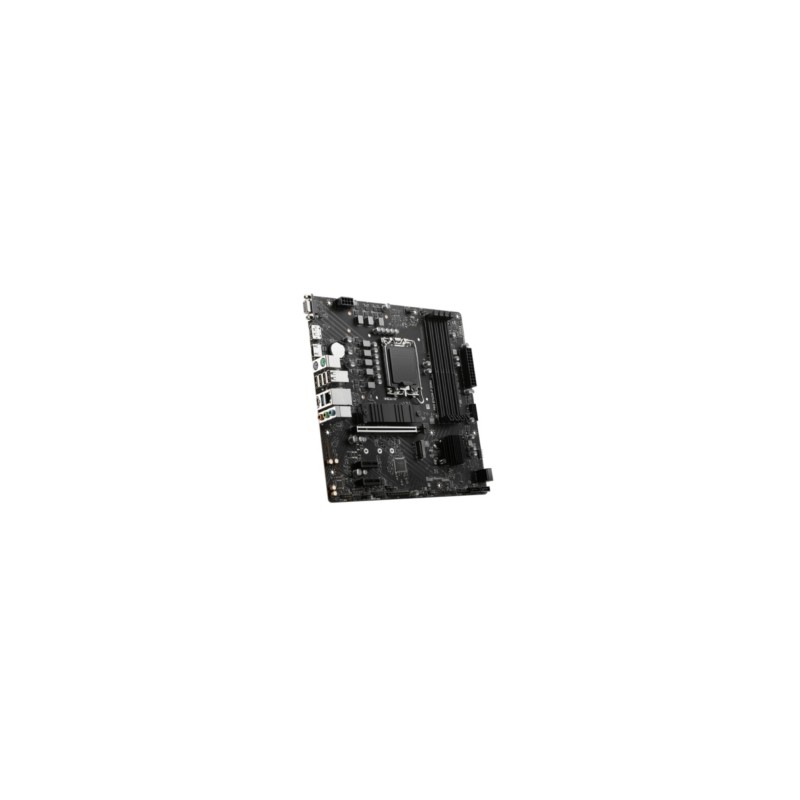

MSI PRO B760M-P - LGA1700 Micro-ATX Motherboard - Intel B760, DDR5, 192GB Max, 4x DIMM, RGB (Black)
€121.50
Tax included
LGA1700 micro-ATX motherboard with Intel B760 chipset, DDR5 support up to 192GB (4x DIMM), 2x M.2, 4x SATA3, rear USB-C, RGB lighting, Gigabit LAN.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Rear Type-C |
| unterstützte Prozessormodelle | Intel® Celeron®, Intel® Pentium® Gold |
| Sockel | LGA 1700 |
| Chipsatz | Intel B760 |
| BIOS | UEFI AMI |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 192 GB |
| Memory slots | 4 |
| Speicher je Speicherplatz | 32GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |

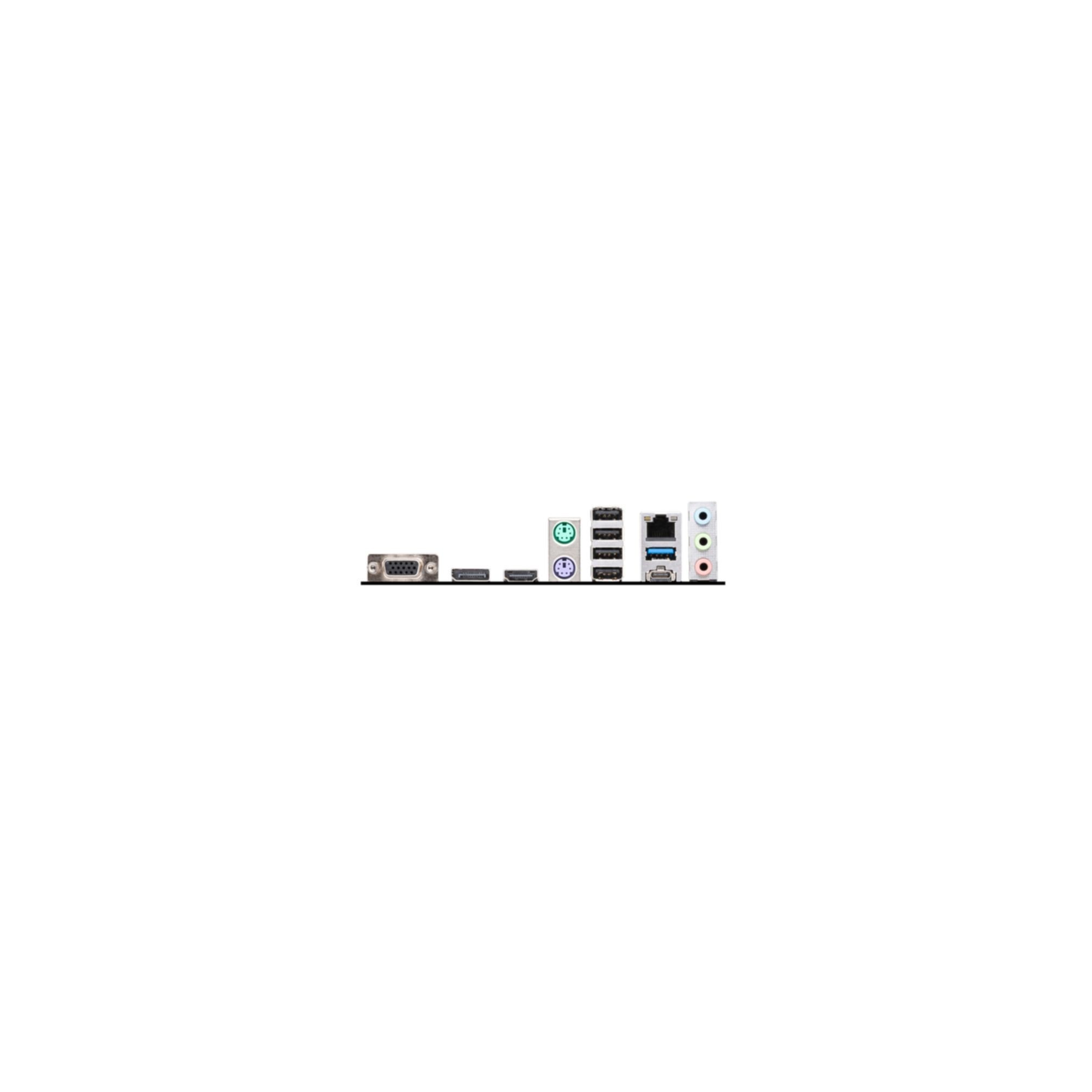

| LAN (RJ45) | Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 2 |
| USB 3.1 | 0 |
| USB 3.0 | 1 |
| USB 2.0 | 4 |
| USB C | 1 |
| VGA | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 1x PCIe x16; 2xPCIe x1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 4 |
| USB-Header USB 3.0 | 2 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 7 |
| Sound-Chip | Realtek ALC897 |
| LAN | Realtek RTL8111H |
| Multi-GPU | ja |
| Multi-GPU Modus | 2-Way AMD CrossFire |
| RAID SATA | 0, 1, 5, 10 |
| RAID M.2 | 0;1 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1950 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| Internal graphic | yes |
| verfügbare Slots | 6 |
