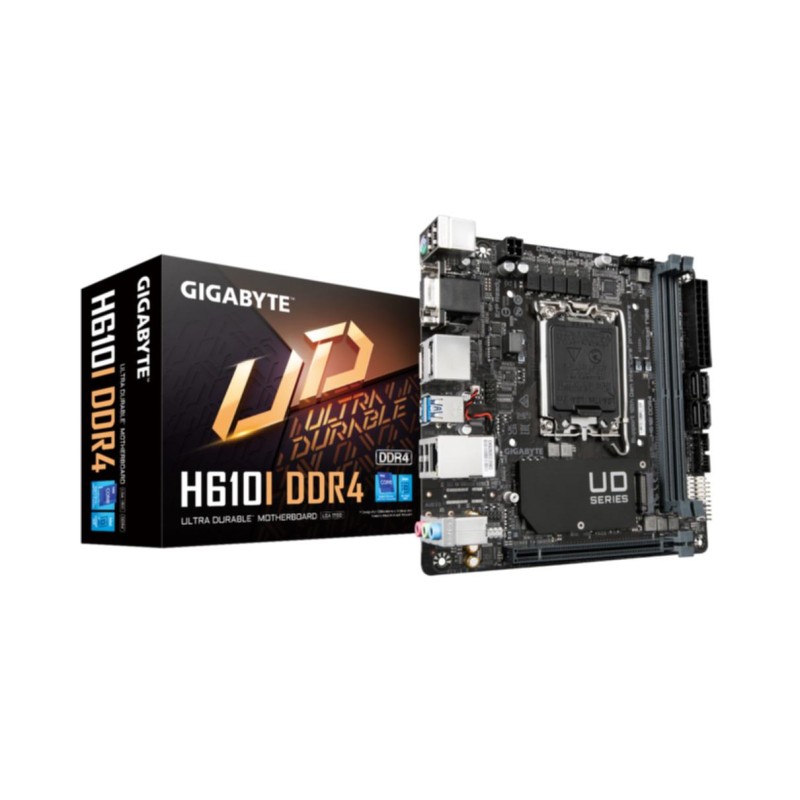

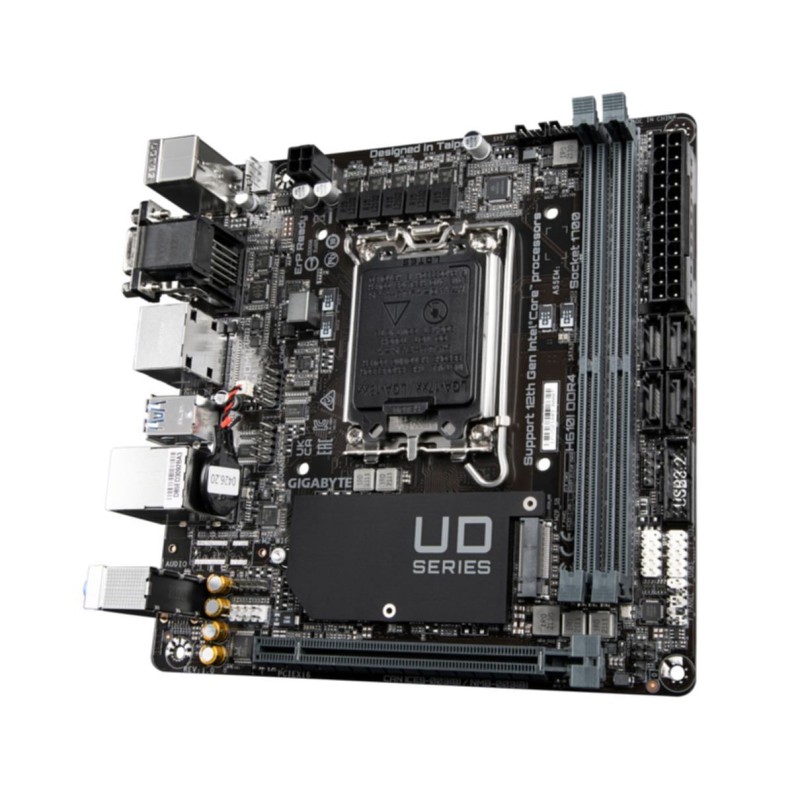

Gigabyte GA-H610I - LGA1700 Mini-ITX Motherboard - DDR4, 2x DIMM, 64GB Max
€171.50
Tax included
Mini-ITX LGA1700 motherboard with Intel H610 chipset; DDR4 support (2x DIMM, up to 64GB). Compact board for small-form-factor Intel builds.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 2 |
|---|---|
| Motherboards - Max Memory Capacity | 64 GB |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3000, 3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Number of displays supported | 3 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

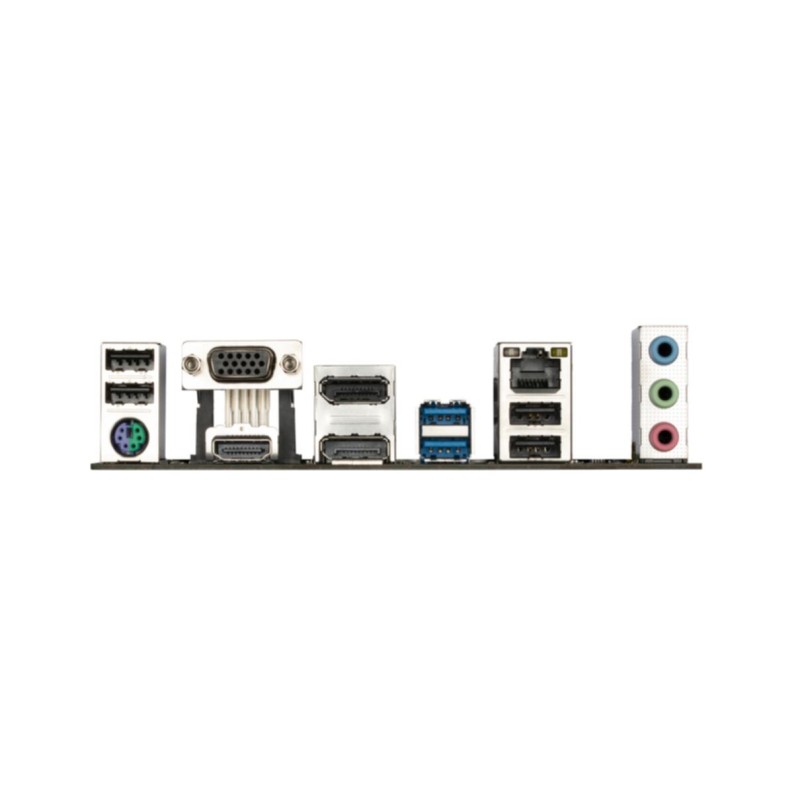

| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Motherboard chipset | Intel H610 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 222 mm |
| Package depth | 180 mm |
| Package height | 65 mm |
| Package weight | 711 g |
| Width | 170 mm |
| Depth | 170 mm |
| Height | 35 mm |
| Cables included | SATA |
| Batteries included | Yes |
| Bundled software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Warranty period | 3 year(s) |
