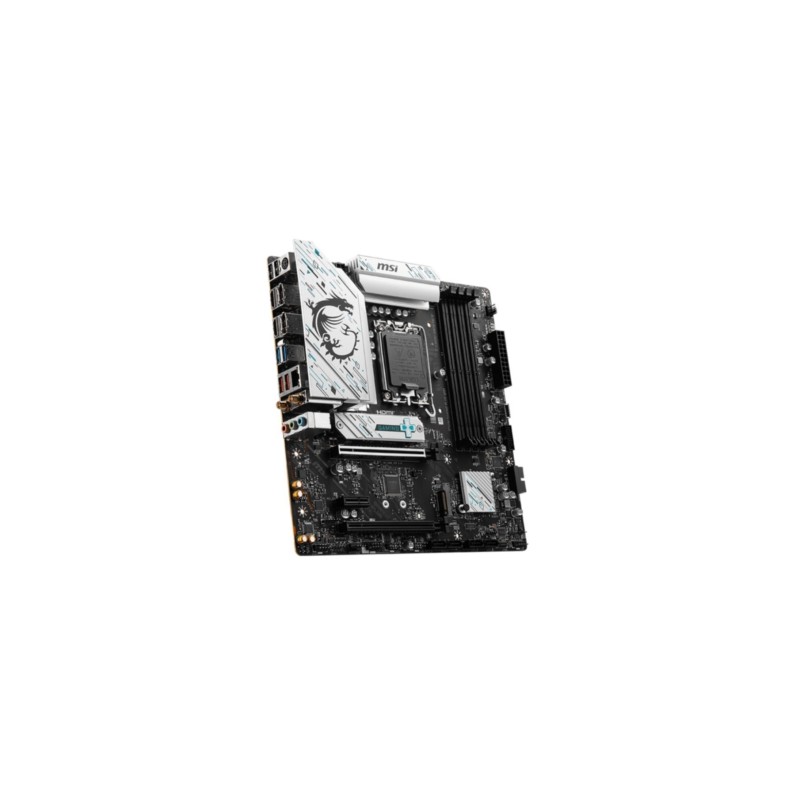

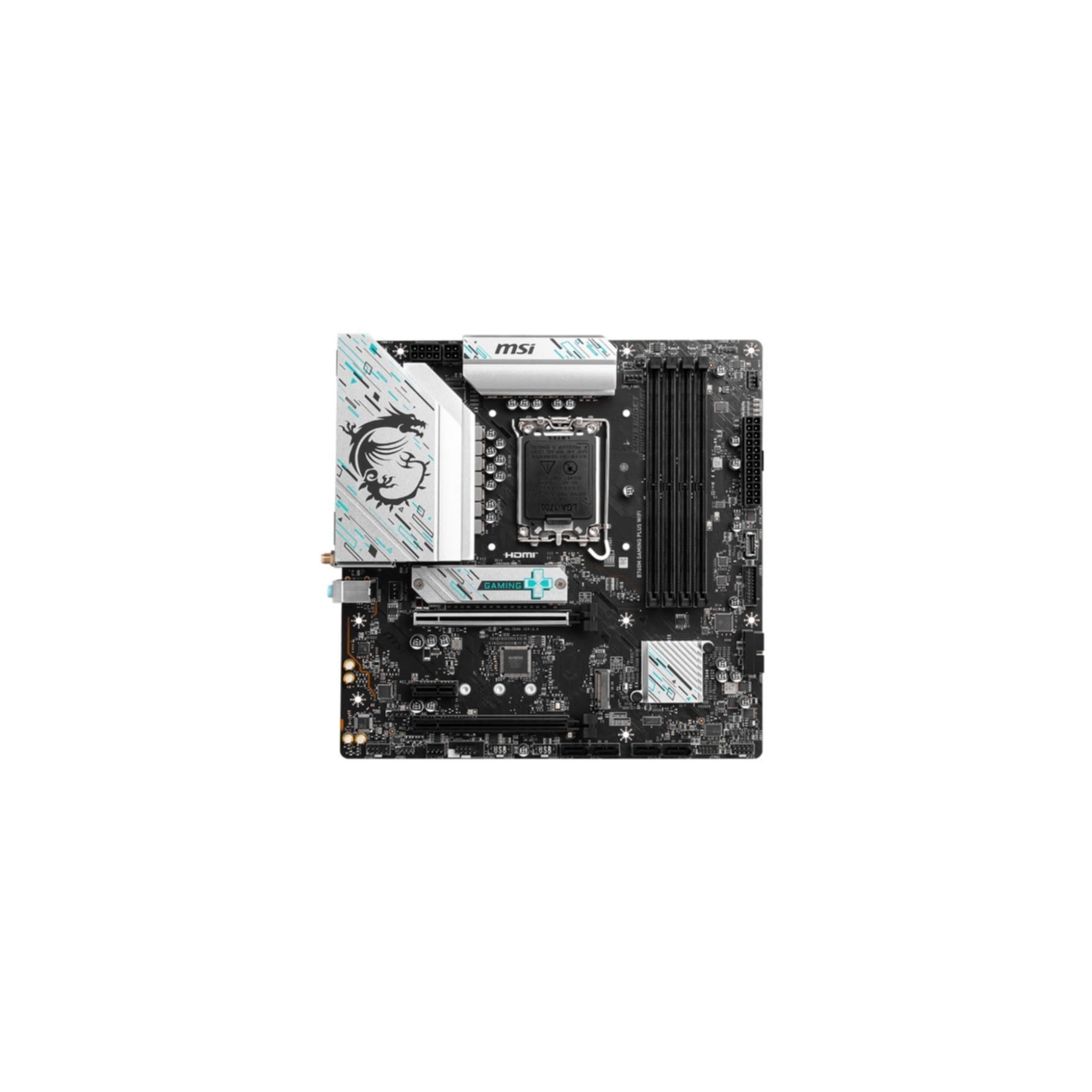

MSI B760M Gaming Plus WIFI - B760M - LGA1700, micro-ATX, DDR5 up to 192GB, RGB, 2.5Gb LAN
€183.50
Tax included
MSI B760M micro-ATX motherboard (LGA1700) with DDR5 support up to 192GB, 4 DIMMs, PCIe 4.0, 2x M.2, HDMI/DP, onboard Wi-Fi and 2.5Gb LAN.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Max Memory Capacity | 192 GB |
| Motherboards - PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Both |
| unterstützte Prozessormodelle | Intel® Celeron®, Intel® Pentium® Gold |
| Sockel | LGA 1700 |
| Chipsatz | Intel B760 |
| BIOS | 256 Mbit |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | ja |
| Speicher max. | 192 GB |
| Memory slots | 4 |
| Speicher je Speicherplatz | 32GB |
| Storage type | DDR5-SDRAM |
| RAM Takt | 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |

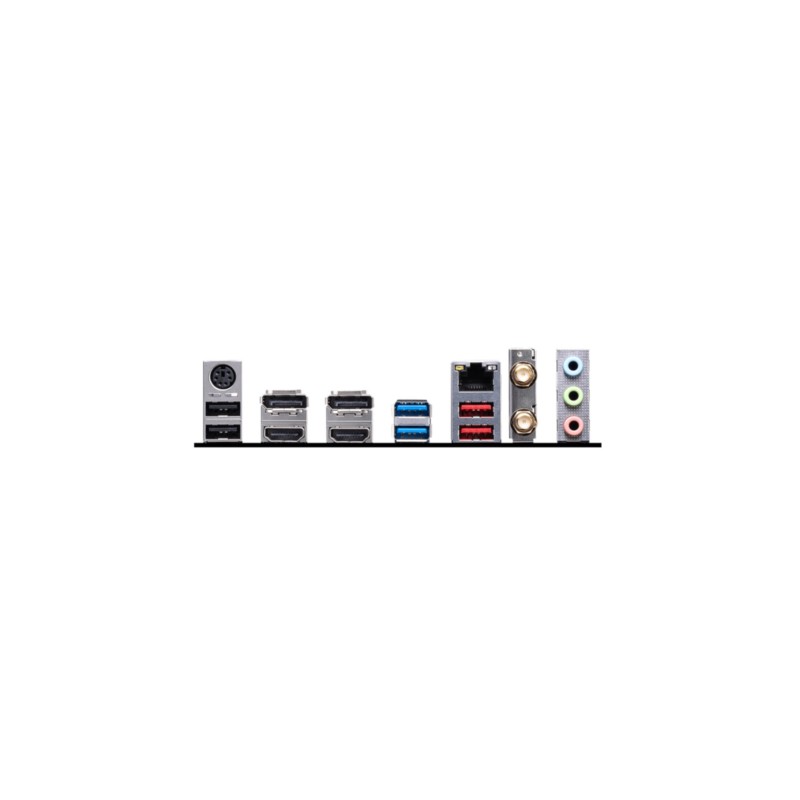

| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 2 |
| USB 3.0 | 2 |
| USB 2.0 | 2 |
| USB C | 1 |
| VGA | 0 |
| HDMI | 2 |
| DisplayPort | 2 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 2 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 4 |
| USB-Header USB 3.0 | 4 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 7 |
| Sound-Chip | Realtek ALC897 |
| LAN | Dragon RTL8125BG |
| Multi-GPU | ja |
| Multi-GPU Modus | 2-Way AMD CrossFire |
| RAID SATA | 0, 1, 5, 10 |
| RAID M.2 | 0;1 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1950 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| Internal graphic | yes |
| verfügbare Slots | 6 |
